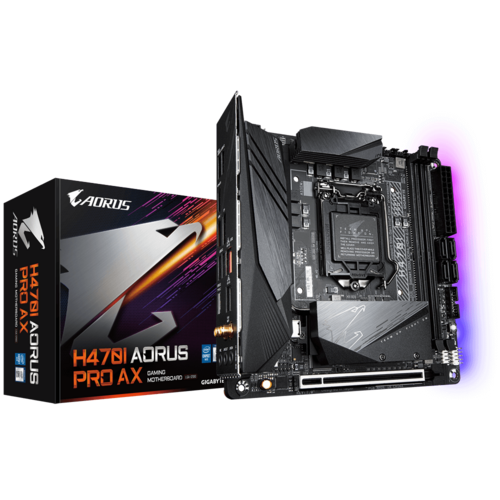

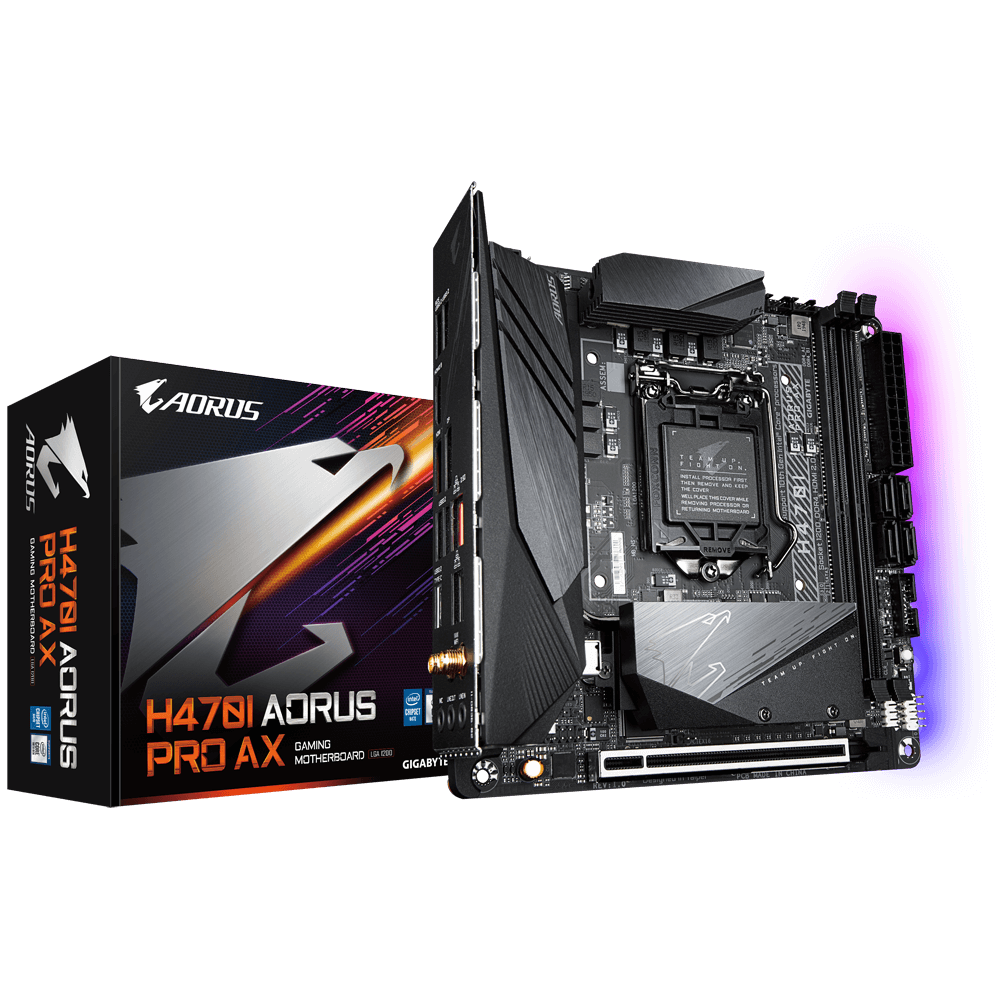

Intel® H470 Mini-ITX AORUS Motherboard with Direct 5+1 Phase Digital VRM Design solution with DrMOS, Thermal Baseplate, Intel® WiFi 6 802.11ax, Dual Intel® LAN, HDMI 2.0, RGB FUSION 2.0

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Direct 5+1 Phase Digital VRM Design solution with DrMOS
  • Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
  • Extended MOSFET Heatsink and Multi-layered PCH M.2 heatsink with heatpipes and thermal baseplate
  • Supreme flexibility with Intel® Optane memory ready
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Dual LAN Intel® 2.5GbE LAN and Intel® GbE LAN with cFosSpeed
  • HDMI 2.0 supports premium 4K resolution
  • Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for easy and quick installation
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    • * Updated BIOS is required for compatibility.
Ultimate Power Design
UNPARALLELED PERFORMANCE
Advanced Thermal Solution
Next Generation Connectivity
Hi-Fi Audio System
Definitive Aesthetics
Ultra Durable
GIGABYTE BIOS & APP CENTER
Ultimate Power Design
UNPARALLELED PERFORMANCE
Advanced Thermal Solution
Next Generation Connectivity
Hi-Fi Audio System
Definitive Aesthetics
Ultra Durable
GIGABYTE BIOS & APP CENTER
Best Choice for Small but Powerful PC
H470I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest 10th gen CPU, dual slots graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
1
Direct Digital Power Design
  1. 50A DrMOS
  2. Direct 5+1 Power Phase
  3. 10 PCB Layers
  4. Tantalum Capacitor Array
2
Advanced Thermal Design
  1. Extended Heatsinks
  2. Multi-Layered PCH/M.2 Heatsink
  3. Thermal Backplate
  4. 5 W/mK LAIRD Thermal Conductivity Pad
  5. 3 Hybrid Fan Headers
  6. 4 Temperature Sensors
3
USB 3.2 Gen1 Type-C™ for Connecting Devices
4
Dual NVMe PCIe 3.0 x4 Slot for SSD
5
Supports 10th Gen. Intel Core™ Processors
6
Dual Channel DDR4, 2 DIMMs with Ultra Durable Memory Armor
7
Solid Pin Power Connectors with Metal Shielding
  1. 24 pin ATX Power Connector
  2. 8 pin CPU Power Connector
8
4 x SATA 6Gb/s ports
9
RGB FUSION 2.0
  1. Addressable LED Header*1
  2. RGB LED Header*1
10
Ultra Durable PCIe Armor Running x16
1. DisplayPort
2. Internet Connection through Intel® 2.5 GbE LAN
3. USB 3.2 Gen1 support Q-Flash Plus
• Plug in USB Drive
4. Onboard Display HDMI
5. Onboard Display HDMI 2.0
• Supported up to 4K display @60 Hz
6. USB 3.2 Gen1 Type-C™
7. Intel® WiFi 6 802.11ax 2T2R & BT 5
8. AMP-UP Audio
• ALC1220-VB
9. Internet Connection through Intel® GbE LAN
Ultimate power Design
5 Phases
Digital Power Design
Power
Architecture
2X
Copper PCB
10
Layers PCB
Direct 5+1 Phases Digital VRM Design solution with DrMOS
  • 50A DrMOS
  • High Current Capacity MOSFET
  • Tantalum Polymer Capacitors Array
  • Higher Efficiency Lower Temperatures
  • Improved Transient Response
H470I AORUS PRO AX motherboard use 5+1 phases digital PWM Controller and DrMOS. This 100% digital controller, new Tantalum Polymer Capacitors array, and Solid-pin CPU Power Connectors offer incredible precision and stability in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing professional worker and gamer to get the incredible high performance from the latest 10 core 10th Gen. Intel® Core™ processors.
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
10 Layers PCB
For richer feature and powerful performance on mini-ITX board H470I AORUS PRO AX, ten layers mid-loss PCB was adopted to make it work. Comparing with regular 8 layer PCB, two more layers for power solution and ground is added. In order to fully support 10th gen ten core CPU and get ready for the future, power trace need more space than previous generation. An extra layer is exclusively for the power delivery. Furthermore, a complete ground layer improves the signal integrity and helps PCB to dissipate heat. Along with ten layered, low impedance, 2X Copper PCB, H470I AORUS PRO AX is unbeatable among motherboards.
Unparalleled Performance
With the best quality components and GIGABYTE R&D design capability, the H470 AORUS is a true beast among motherboards.
Single 32GB Support
2X PCIe 3.0 M.2 Slot
Single 32GB Support
With populated 1 DIMMs per channel on H470I AORUS PRO AX motherboard, the maximum memory capacity support is 64GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.
Dual PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Advanced Thermal Solution
Thermal Solution
Smart Fan 5
1 Grooves on Heatsink Improve Airflow
2 5 W/mK LAIRD Thermal Conductivity Pad
3 Heatpipe
4 Multi-Layered Heatsink for M.2 SSD and PCH
5 Thermal Baseplate
Next Generation Connectivity
Network connectivity is getting more important nowadays. Majority of Desktop PC are with both ethernet and WIFI for the stable connection to avoid interrupt or bad signal. The H490 I AORUS Ultra features the fastest 2.5Gbe WIFI and Dual Lan that improve the reliability and performance in dense environment. Furthermore, As 4k Monitor become more popular, ultra high resolution display output is also required.
Intel 2.5G LAN
Intel GbE LAN
WIFI 6
AORUS Antenna
HDMI 2.0
Intel 2.5GbE LAN Onboard

2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It's perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.


Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
HDMI 2.0 for 4K UHD Display and HDCP 2.2 supported
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
AORUS AUDIO
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
Definitive Aesthetics
RGB FUSION 2.0
RGB FUSION Software
RGB FUSION APP
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Ultra Durable
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the H470 AORUS motherboard and reinforce every slot to make each of them solid and durable.
PCIE Armor
Pre-installed IO shield
Solid Pin
Q-Flash Plus
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Pre-installed I/O Shield Armor
Durable design and easy installation
  • With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
  • With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
Solid Pin Power Connectors
H470 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. H470I AORUS PRO AX bundled several useful and intuitive software to help users to control every aspect of motherboard.
BIOS
APP Center
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
