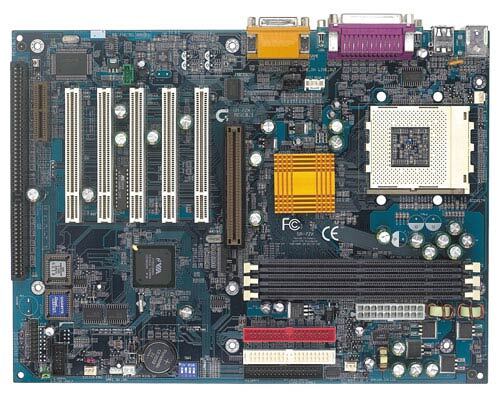

GA-7ZX (Rev. 5.0)

Rev. 5.0Rev. 1.xRev. 5.1
Teknik ÖzelliklerDestekHaberler/ÖdüllerWhere to Buy

Teknik Özellikler

  • İşlemci
    1. AMD® Athlon™ /Duron™ (K7) Socket A processor (256K/64K 2nd cache on die)
    2. Supports 500MHz ~ 1GHz and faster
    3. 95*/100/105*/110*/113*/115*/117*/133* MHz FSB
      (*Support by over-clocking)
    4. AUTO detect CPU voltage
  • Yongaseti
    1. VIA VT8363 (KT133) Memory/AGP/PCI Controller(PAC)
    2. VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. Creative CT5880 PCI sound chip (4 channel audio)
    4. AC97 codec
  • Bellek
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Genişleme Yuvaları
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    4. 1 x ISA slot
  • G/Ç Denetleyicisi
    1. 2 x Ultra DMA 33/66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • Donanım İzleme
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. Supports DualBIOS™ technology; 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
    6. Supports @BIOS® Live Update
  • Form Faktör
    1. ATX , 4 layer PCB (30.4*22.7cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. Creative PCI sound driver
  • Other Features
    1. Support Wake-On-LAN (WOL)
    2. Support Internal/External modem ring on
    3. Support USB K/B or mouse wake up from S3
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Support STR (Suspend-To-RAM) function
    7. Supports EasyTune III®
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
  • İşlemci
    1. AMD® Athlon™ /Duron™ (K7) Socket A processor (256K/64K 2nd cache on die)
    2. Supports 500MHz ~ 1GHz and faster
    3. 95*/100/105*/110*/113*/115*/117*/133* MHz FSB
      (*Support by over-clocking)
    4. AUTO detect CPU voltage
  • Yongaseti
    1. VIA VT8363 (KT133) Memory/AGP/PCI Controller(PAC)
    2. VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. Creative CT5880 PCI sound chip (4 channel audio)
    4. AC97 codec
  • Bellek
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Genişleme Yuvaları
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
    4. 1 x ISA slot
  • G/Ç Denetleyicisi
    1. 2 x Ultra DMA 33/66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • Donanım İzleme
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. Supports DualBIOS™ technology; 2Mbit flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
    6. Supports @BIOS® Live Update
  • Form Faktör
    1. ATX , 4 layer PCB (30.4*22.7cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. Creative PCI sound driver
  • Other Features
    1. Support Wake-On-LAN (WOL)
    2. Support Internal/External modem ring on
    3. Support USB K/B or mouse wake up from S3
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Support STR (Suspend-To-RAM) function
    7. Supports EasyTune III®
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch

* HDMI, HDMI High-Definition Multimedia Interface terimleri, HDMI Ticari takdim şekli ve HDMI Logoları HDMI Licensing Administrator, Inc.’nin ticari markaları veya tescilli ticari markalarıdır.
* Burada sağlanan tüm materyaller yalnızca referans içindir. GIGABYTE ürün teknik özelliklerinde ve ürün ile ilgili bilgilerde haber vermeden önce değişiklik yapma hakkını saklı tutar.
* Belirtilen performans, ara yüz özelliklerini belirleyen yonga seti üreticilerinden veya kurumlarından alınan maksimum teorik ara yüz değerlerine dayanır. Gerçek performans sistem üzerinde kullanılan bileşenlere göre değişkenlik gösterebilir.
* Tüm ticari markalar ve logolar, kendi sahiplerinin mülkiyetindedir.
* Standart PC mimarisi sınırlamaları nedeniyle, bellek miktarının bir kısmı sistem kullanımı için ayrılır ve gerçek bellek boyutu olması gerekenden daha az gösterilir.
