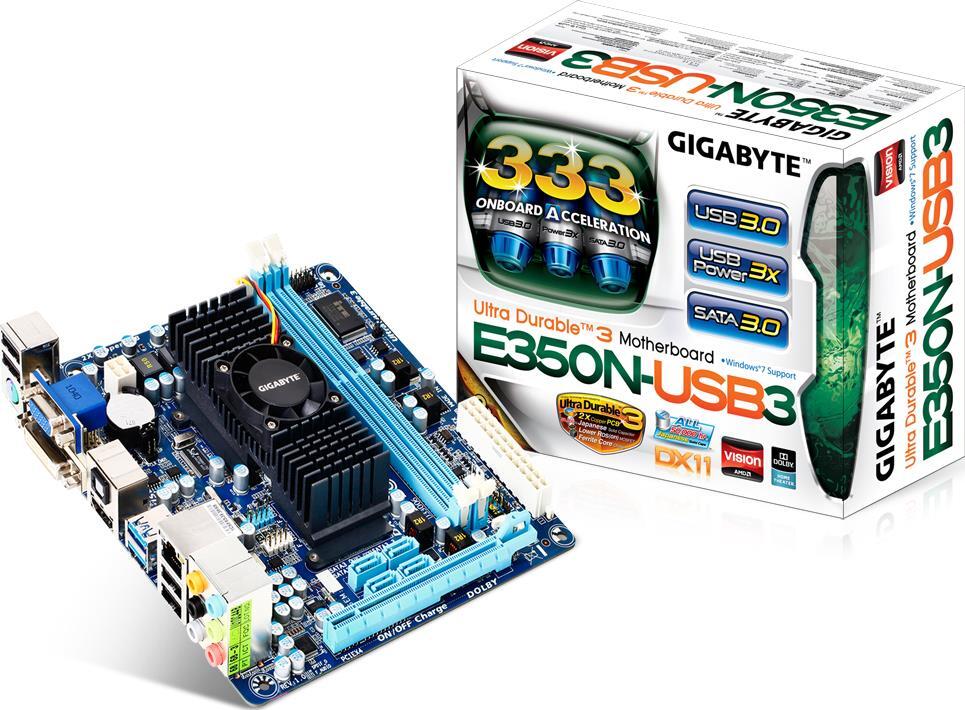

GA-E350N-USB3 (Rev. 1.0)

AMD E-350 + A50M
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Built in with an AMD E-350 Dual-Core processor
    2. Built in with an AMD Radeon HD 6310 (DirectX 11) graphics core
  • Chipset
    1. AMD A50M
  • Memory
    1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
      2. * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Single channel memory architecture
    3. Support for DDR3 1333(OC)/1066 MHz memory modules
  • Onboard Graphics
  • Integrated in the APU:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      3. * The DVI-D port does not support D-Sub connector by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    * For configuring screen resolution, please refer the user manual- Chapter 1 Hardware Installation of Back Panel Connectors section.
  • Audio
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Realtek 8111E chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x4
      (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
  • Storage Interface
  • FCH:
    1. 4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices
    * SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
  • USB
  • FCH:
    1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    Renasas D720200 chip:
    1. Up to 2 USB 3.0 ports on the back panel
    * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 2.0/1.1 headers
    10. 1 x debug card header
      11. * This port is mainly used by repair technicians for debugging and problem diagnosis.
    11. 1 x chassis instrusion header
    12. 1 x power LED header
    13. 1 x clearing CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/ mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x optical S/PDIF Out connector
    6. 4 x USB 2.0/1.1 ports
    7. 2 x USB 3.0/2.0 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • I/O Controller
    1. ITE IT8720 chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
  • BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
      8. * Available functions in EasyTune may differ by motherboard model.
    8. Support for Smart Recovery
    9. Support for Auto Green
    10. Support for On/Off Charge
    11. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Microsoft Windows 7/ Vista/ XP
  • Form Factor
    1. Mini-ITX; 17.0cm x 17.0cm
  • Note
  • * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice.
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    3. Minimum 200 Watts power supply is suggested on this model.
