  • Built-In Intel Celeron N3050 ( 1.6GHz ) Dual Core processor
  • Support Dual Channel DDR3L SODIMM

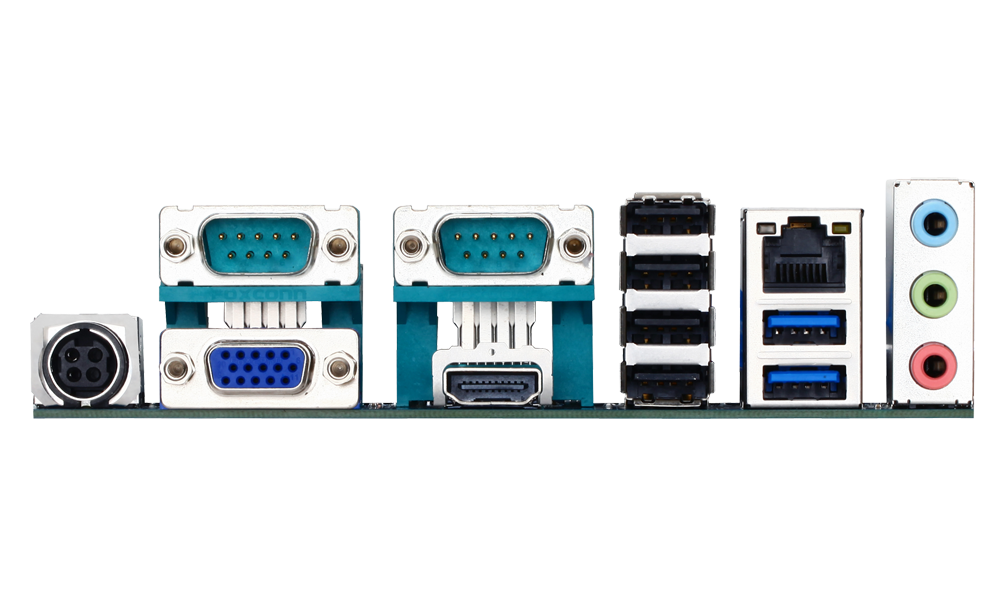

  • Support LVDS 18bit/24bit , HDMI , D-SUB VGA
  • Support onboard total 6 COM ports.
    ( COM1 Support RS232/422/485 select by Jumper )
    ( COM1 ~ COM4 Support RI/5V/12V power select by BIOS )
  • Support onboard TPM Module Connector
  • Support onboard Printer Port LPT connector
  • Support onboard M.2 ( 2242 ) and Mini PCIe ( Half Size )
  • Support DC-IN 12V

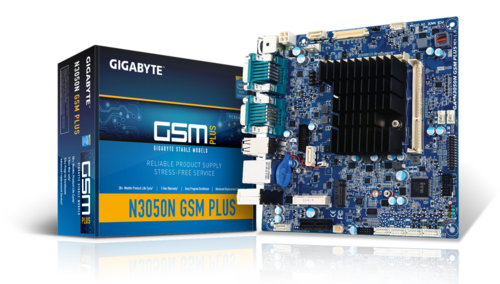

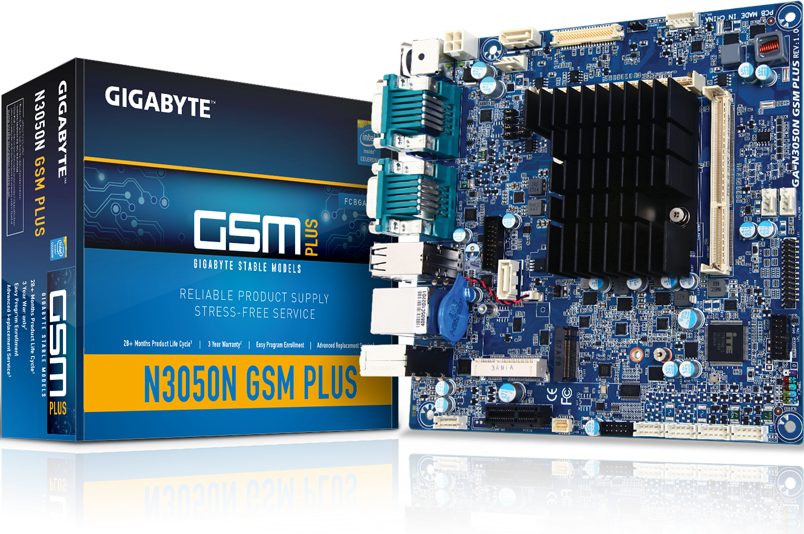

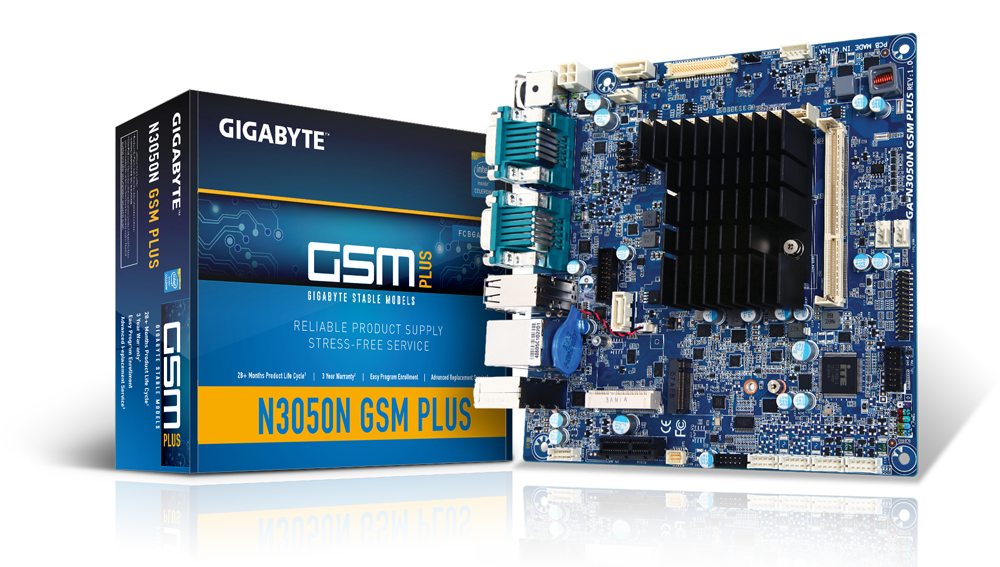

  • GA-N3050N GSM PLUS

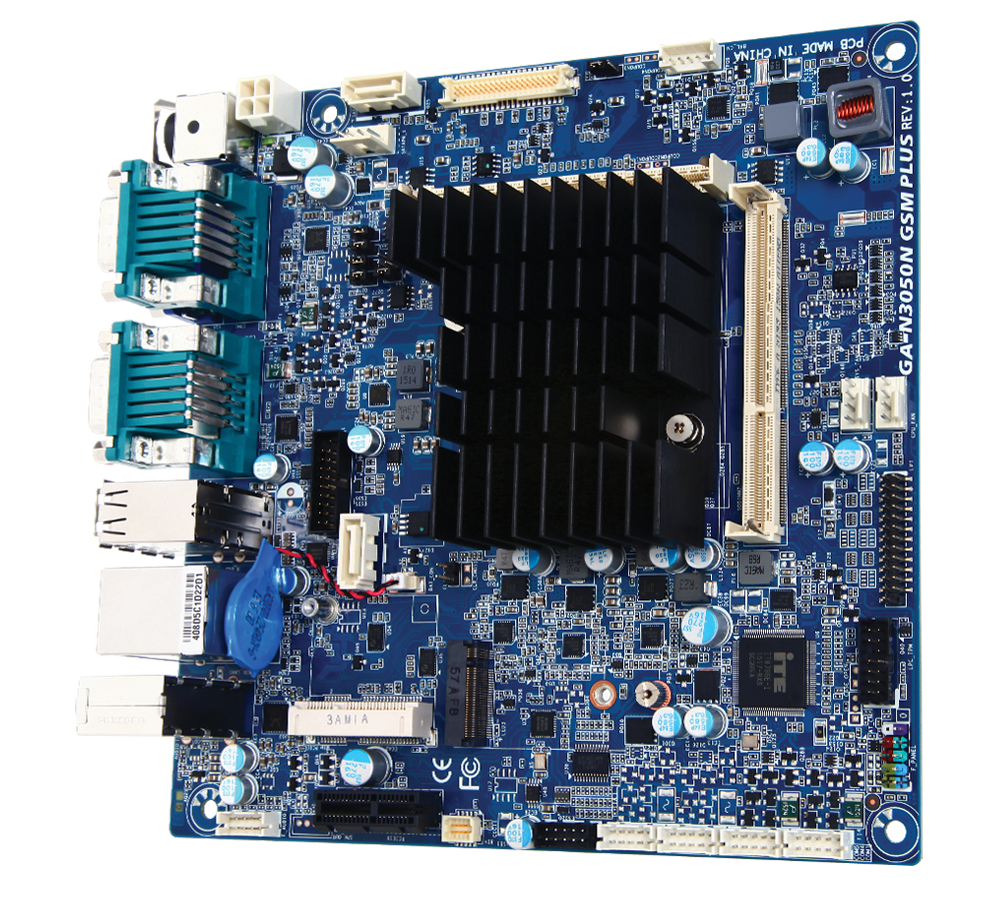

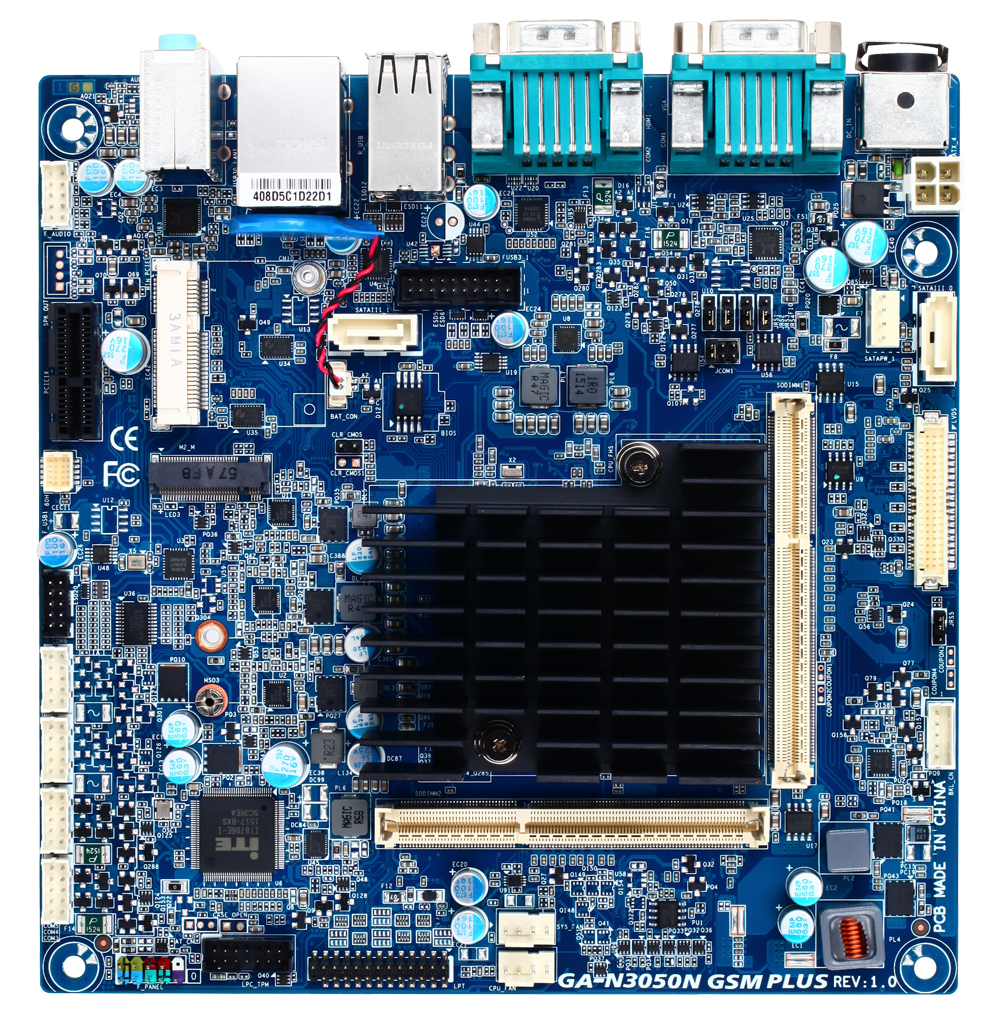

    The GIGABYTE GA-N3050N GSM PLUS Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ N3050 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE GA-N3050N GSM PLUS is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a Mini-PCIe slot provides flexible Wi-Fi option.
  • Intel® Celeron™ N3050 Processor
    The Intel® Celeron™ N3050 Dual-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel® Celeron™ N3050 uses the smallest package of any desktop processor within a low thermal envelope of on 6 watts. The Intel® Celeron™ N3050 boasts excellent performance including DX11.2 gaming on Intel® HD Graphics, plus a dedicated HEVC decoder for smooth 4K UHD video playback.
  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



  • Ultra Performance

    GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.


  • Electrostatic Protection
    GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
