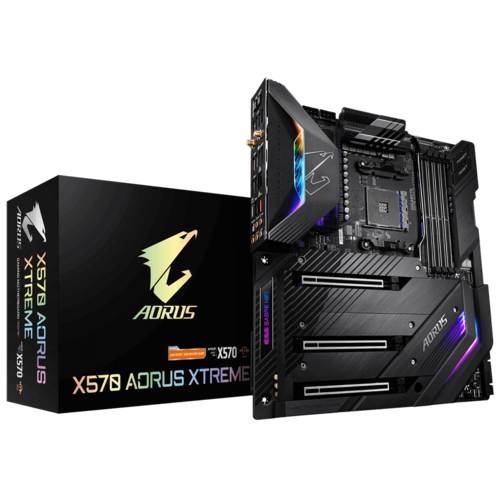

AMD X570 AORUS Motherboard with Direct 16 Phases Digital VRM, Active OC Tuner, Fins-Array Heatsink, NanoCarbon Baseplate, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6E 802.11ax, ESS SABRE HiFi 9218, AQUANTIA® 10GbE LAN+1GbE LAN, RGB FAN COMMANDER, RGB Fusion 2.0

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
  • Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 16 Phases Infineon Digital VRM Solution with 70A Power Stage
  • Thermal Reactive Armor Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate
  • Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
  • Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5.2 with 2X AORUS Antenna
  • Rear 130dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9218 DAC with WIMA Audio Capacitors
  • AQUANTIA® 10GbE BASE-T LAN + Intel® Gigabit LAN with cFosSpeed
  • Exclusive RGB FAN COMMANDER for Professional Casemoders
  • USB TurboCharger for Mobile Device Fast Charge Support
  • RGB FUSION with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Front & Rear USB 3.2 Gen 2 Type-C™ Headers
  • Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
Extreme Power Design
THERMAL REACTIVE ARMOR
Unparalleled Performance
Next Generation Connectivity
Definitive Aesthetics
Hi-Fi Audio System
Ultra Durable
GIGABYTE BIOS & APP CENTER
Extreme Power Design
THERMAL REACTIVE ARMOR
Unparalleled Performance
Next Generation Connectivity
Definitive Aesthetics
Hi-Fi Audio System
Ultra Durable
GIGABYTE BIOS & APP CENTER
DESIGN CONCEPT

Innovative design, cutting-edge function, state-of-art aesthetics, sophisticated thermal design, next generation network connection ,Hi-Fi level audio system. X570 AORUS XTREME is the new definition of flagship motherboard.


1
Direct 16 Phases Infineon Digital VRM
• 8 Layer PCIe 4.0 Ready Low Loss PCB
• 2X Copper PCB
2
Intel® WiFi 6E 802.11ax 2T2R & BT 5.2 with 2X AORUS Antenna
3
Intel® i211AT GbE LAN
• cFosSpeed Internet Accelerator
4
AQUANTIA 10GbE Base-T LAN
5
Thermal Reactive Armor
• Fins-Array
• Direct Touch Heatpipes
• 5 W/mK LAIRD Thermal Conductivity Pad
• NanoCarbon Baseplate
• 3x Enlarged M.2 Heatsink
6
Triple M.2 Connectors
• PCIe 4.0/3.0 x4
• Triple Thermal Guards
7
AMP-UP Audio
• ALC 1220-VB Audio Codec
• ESS 9218 SABRE DAC
• Audiophile Grade Capacitors
• Gold Plated Audio Jacks
08
RGB FUSION 2.0
• Addressable LED Header*2
• RGB LED Header*2
• RGB FAN COMMANDER
09
Supports AMD Ryzen™ Series Processors
• Supports Active OC Tuner*
* Only available on selected AMD Ryzen™ processors with P.B.O. function featured
• Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
10
Solid Pin Power Connectors
• 24 pin ATX Power Connector
• 8+8 pin CPU Power Connector
• 6 pin PCIe Power Connector
11
DualBIOS™ with Socketed BIOS
• Q-Flash Plus
• DualBIOS Switch
12
Front USB 3.2 Gen2 Type-C™
13
PCIe 4.0 Turbo B-Clock IC
14
PCIe 4.0 x16/x8/x4 Slot
• 3x Ultra Durable PCIe Armor
15
USB TurboCharger
16
Thunderbolt™ Add-in Card Connector
*Click here to view AM4 Overclocking Guidance
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for latest AMD Ryzen™ 5000 Series Processors. The all-new design is a testament to GIGABYTE dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0, USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 5000 Series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system. AMD Ryzen™ 5000, 4000, 3000, 2000 Series Compatible
AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi
Extreme Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards.
Extreme Power Design
16 Direct Digital Power Design
Power Architecture
2X Copper PCB
Power Efficiency & Voltage Ripple Graph
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
THERMAL REACTIVE ARMOR
X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.
THERMAL REACTIVE ARMOR
Thermal Design
Right-Angled Connector
NanoCarbon Baseplate
Noise Detection
16X Hybrid Fan Header
1. Fins-Array
Fins-Array increases the heat dissipation surface by 300% compared to traditional heatsinks of the same size.
2. Direct-Touch Heatpipe
Heatpipes directly contact PowlRstage and X570 chipset, this help transfer heat on both Fins-Array heatsink and X570 chipset heatsink.
3. Aluminum Cover
IO Cover made from aluminum to keep aesthetics style and not block heat dissipation.
4. 3X PCIe 4.0 M.2 Heatsink
Enlarged M.2 heatsink prevents new generation PCIe 4.0 SSD from throttled performance under overheat condition.
5. LAIRD Thermal Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than usual thermal pad in the same time
6. NanoCarbon Baseplate
A thin layer of NanoCarbon is coated on the baseplate through electrostatic adhesion to enhance thermal radiation capability.
7. Right Angled Connectors
Over 90% of connectors on X570 AORUS XTREME is specifically designed to be right angled for easy cable management and clean airflow in chassis.
8. X570 Chipset Heatsink
Made by several layers of heatsink and heatpipe connects the Fins-Arrays. This complicated heatsink ensure X570 chipset run cool and quiet.
Thermal Performance
Right-Angled Connectors
X570 AORUS XTREME uses revolutionary Right-Angled Connectors design, 90% of pin headers and connectors on motherboard are right-angled and relocated to one side of PCB. The never-seen-before design help easier cable management and better in-chassis air-flow when installing great amount of devices.
  1. Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
  2. A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability.
  3. Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can dissipate heat passively.
  4. Effectively lowers backside PWM component temperature by 10%.
NanoCarbon Coating
This specialized nanostructure of carbon molecules has extraordinary thermal conductivity.
Noise Detection
With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn’t include any sound recording function, it simply detects sound pressure while protecting your privacy.
Unparalleled Performance
Hungry for better performance? X570 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance.
Unparalleled Performance
Active OC Tuner
XMP 5400+
PCIe 4.0 Design
3X M.2 PCIe 4.0 x4
GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
ㆍActive OC Tuner switches profile based on user scenario automatically ㆍ5% performance increase
* Only available on selected AMD Ryzen™ processors with P.B.O. function featured.

*Click here to view GIGABYTE Active OC Tuner Guidance
Active OC Tuner with Auto Switching
AMD P.B.O.
Manual
AMD P.B.O. mode for fewer cores with the highest CPU boost clock, better for gaming.
Manual OC mode for all cores with high CPU clock, better for content creation.
Next Generation Connectivity
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Next Generation Connectivity
10 GbE Base-T LAN
WIFI 6E 802.11ax
AORUS Antenna
USB TurboCharger
AQUANTIA® 10GbE BASE-T Networking
Next Generation Multi-Gig Gaming
The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centers, workstations and gamers.
Multi-Gigabit Support
• Ultimate online gaming experience with faster connection speed
• Backward compatible with 5/2.5/1Gbps network
• No re-wiring needed
  1. All new antenna supported 802.11ax WIFI 6E 2.4GHz, 5GHz & 6GHz, 4dBi signal gain
  2. 2x signal strength compared to traditional antenna design
  3. Two antenna with smart antenna function for the best WIFI signal transmitting
  4. Multiple angle tilt and magnetic base for the best signal strength direction and location
USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen1 Type-A cable of chassis to our motherboard, USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.
*Charge time varies with devices' hardware design, battery size, front USB 3.2 Gen1 cable quality of chassis and environmental factors, actual results will vary.
Definitive Aesthetics
GIGABYTE ID team designs X570 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.
Definitive Aesthetics
RGB FUSION 2.0
AORUS RGB FAN COMMANDER
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

  1. Exclusive bundled accessory for professional casemodders
  2. 8 Hybrid Fan Headers
  3. 8 RGB LED Headers
  4. 8 Addressable LED Headers
  5. 2 external temperature sensors
  6. 2 USB 2.0 header for additional USB RGB devices
  7. All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns
  8. Easy to install inside the chassis with its compact size and magnetic base
Perfectly control the devices connected to the AORUS RGB FAN COMMANDER via RGB FUSION 2.0 and Smart FAN software.

  1. Manage 8x Fan speeds individually to your requirements. It can also ensure your system maintains its performance while staying cool.
  2. Synchronize up to 16 lighting devices with RGB FUSION 2.0.
HIFI AUDIO SYSTEM
Hi-Fi Audio System- As a Built-in Sound Card
For Hi-Fi Audio Solution, can be grouped into 2 parts.
Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB SNR, 112dB THD+N and supports higher impedance up to 600 Ω headphone. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. Audio Signal Optimization, TXC Oscillator provides precise time triggers to Digital-Analog Converters. WIMA Capacitors to deliver crystal and balanced sound.
Audio Signal Process
Digital Audio
True Hi-Fidelity Music
Provides surround sound audio and enables DSD music playback
Digital / Analog Convert
ESS SABRE reference DAC 9218
  • Support QUAD DAC™
    to deliver superb 124dB DNR and -112dB THD+N.
  • True 2vrms outputs are capable of driving professional high impedance headphones and deliver professional line-level outputs.
  • Analog Volume Control
    delivers 130dB SNR at low listening levels by reducing noise as the audio signal decreases.
  • High-Res music
    Supports up to 32bit 192KHz PCM
Audio Signal Amplification
Audiophile Grade Capacitors
Deliver true acoustic sound
Crystal Sound Output
Gold Plated Audio Jacks
High resistance to corrosion and oxidation
Audio Signal Optimization
Precise TXC Oscillator
Provides precise time triggers to Digital-Analog Converters.
Audiophile Grade Capacitors
Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.
Ultra Durable
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the X570 AORUS XTREME and reinforce every slot to make each of them solid and durable.
Ultra Durable
3X PCIE Armor
4X Memory Armor
Solid Pin
Q-Flash Plus
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference

Solid Pin Power Connectors
X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. X570 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.
GIGABYTE BIOS & APP CENTER
BIOS
APP CENTER
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
