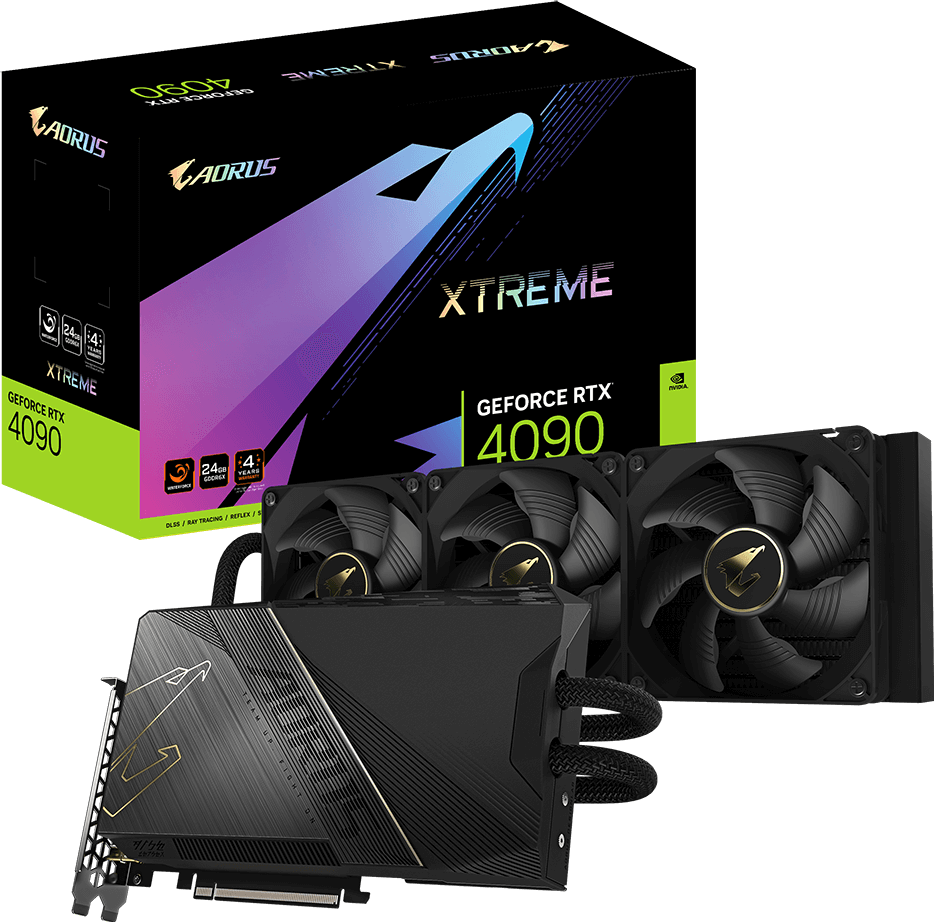

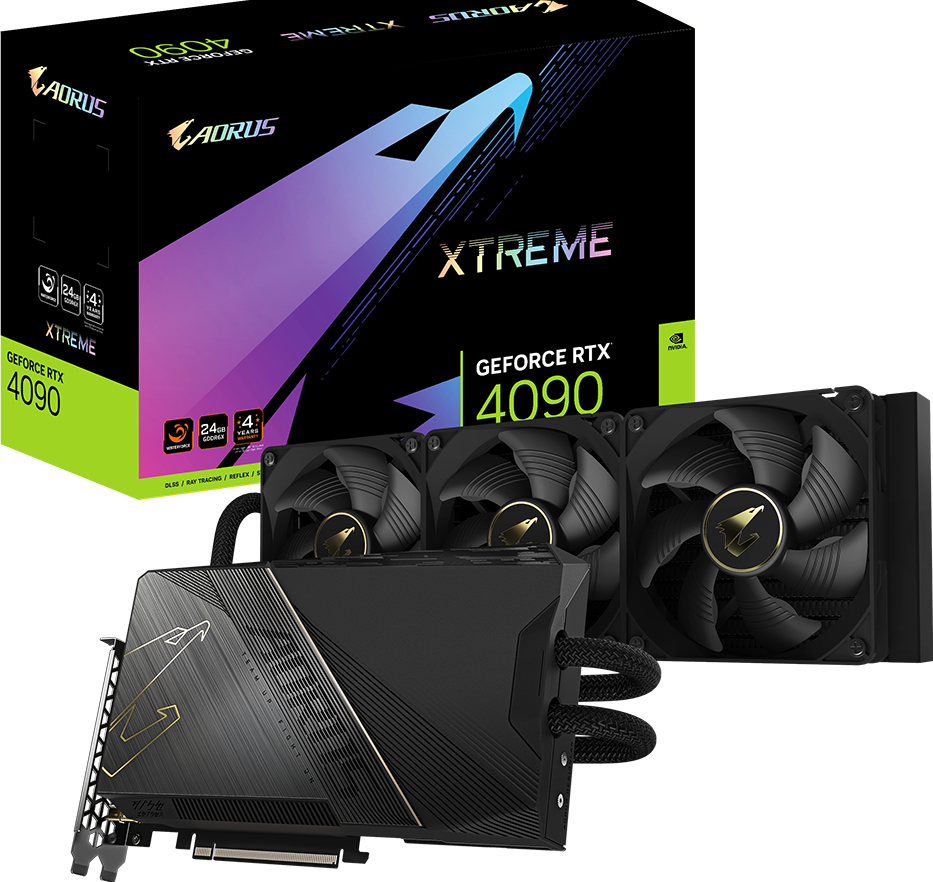

AORUS GeForce RTX™ 4090 XTREME WATERFORCE 24G (Rev. 1.1)
AORUS GeForce RTX™ 4090 XTREME WATERFORCE 24G (Rev. 1.0)
- Quick Navigate
- Graphics Processing
Graphics Processing
GeForce RTX™ 4090GeForce RTX™ 4090- Core Clock
Core Clock
2565 MHz (Reference Card: 2520 MHz)2565 MHz (Reference Card: 2520 MHz)- CUDA® Cores
CUDA® Cores
1638416384- Memory Clock
Memory Clock
21 Gbps21 Gbps- Memory Size
Memory Size
24 GB24 GB- Memory Type
Memory Type
GDDR6XGDDR6X- Memory Bus
Memory Bus
384 bit384 bit- Card Bus
Card Bus
PCI-E 4.0PCI-E 4.0- Digital max resolution
Digital max resolution
7680x43207680x4320- Multi-view
Multi-view
44- Card size
Card size
L=238 W=141 H=40 mmL=238 W=141 H=40 mm- PCB Form
PCB Form
ATXATX- DirectX
DirectX
12 Ultimate12 Ultimate- OpenGL
OpenGL
4.64.6- Recommended PSU
Recommended PSU
1000W850W- Power Connectors
Power Connectors
16 pin*116 pin*1- Output
Output
DisplayPort 1.4a *3
HDMI 2.1a*1DisplayPort 1.4a *3
HDMI 2.1a*1- Tube length
Tube length
460mm ± 1.5%460mm ± 1.5%- Radiator
Radiator
360 mm360 mm- Fan
Fan
3x 120 mm3x 120 mm- Accessories
Accessories
1. Quick guide
2. Warranty registration
3. AORUS Metal sticker
4. Xtreme Robot Limited Edition with AORUS flag
5. One 16-pin to four 8-pin power adaptor1. Quick guide
2. Warranty registration
3. AORUS Metal sticker
4. Xtreme Robot Limited Edition with AORUS flag
5. One 16-pin to four 8-pin power adaptor
