Power Supply Comparison
- Quick Navigate
- Model
Model

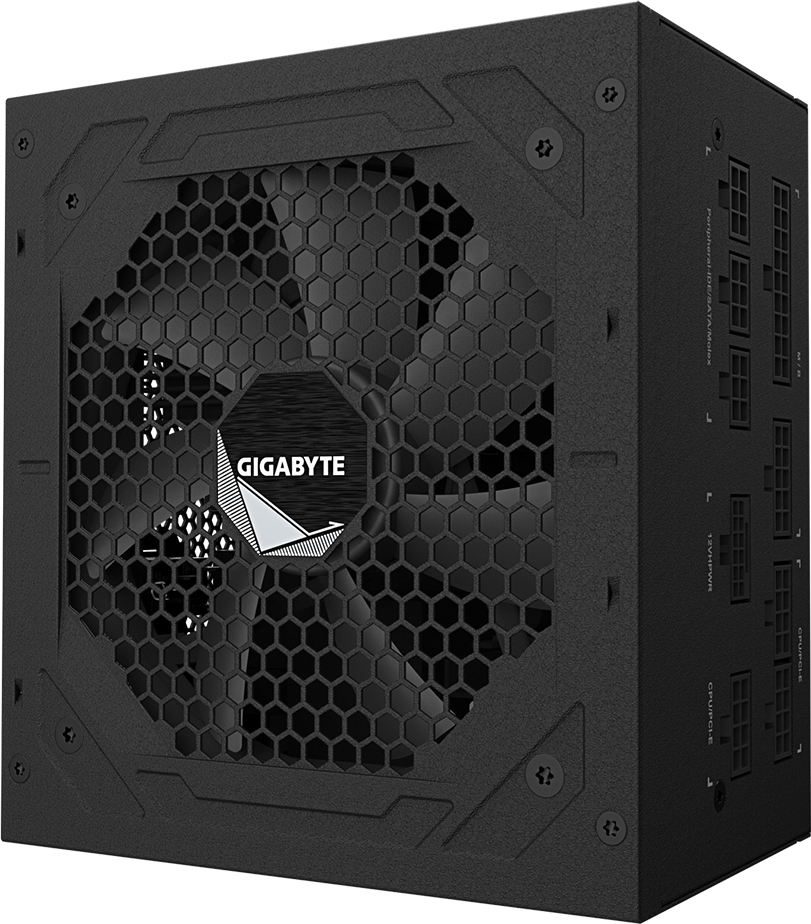

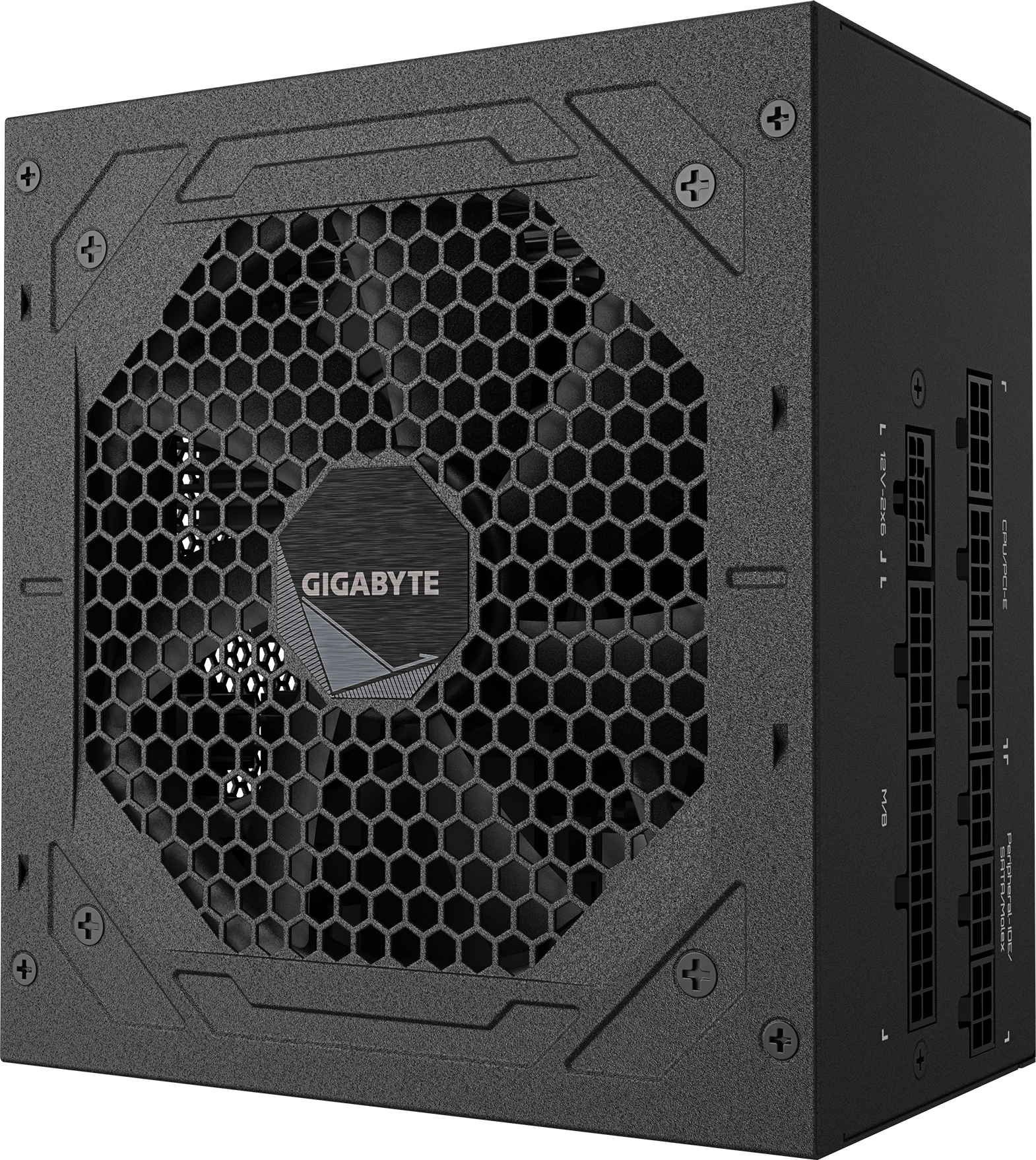

GP-UD1000GM PG5 V2GP-UD1000GM PG5- Type
Type
Intel Form Factor ATX 12V v3.1Intel Form Factor ATX 12V- PFC
PFC
Active PFC (>0.9 typical)Active PFC (>0.9 typical)- Input Voltage
Input Voltage
100-240 Vac (full range)100-240 Vac (full range)- Input Current
Input Current
15-6.5A15-6.5A- Input Frequency
Input Frequency
60-50 Hz60-50 Hz- Output Capacity
Output Capacity
1000W1000W- Dimensions
Dimensions
150 x 140 x 86 mm150 x 140 x 86 mm- Fan Type
Fan Type
120mm Hydraulic Bearing(HYB) Fan120mm Hydraulic Bearing(HYB)fan- 80 PLUS
80 PLUS
GoldGold- Efficiency
Efficiency
90% at typical load90% at typical load- MTBF
MTBF
>100,000 hours>100,000 hours- Protections
Protections
OVP/OPP/SCP/UVP/OCP/OTPOVP/OPP/SCP/UVP/OCP/OTP- Power Good Signal
Power Good Signal
100-150ms100-150ms- Hold Up Time
Hold Up Time
>16ms>16ms- Cable Type
Cable Type
Embossed, All blackFlat, All black- Connectors
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
