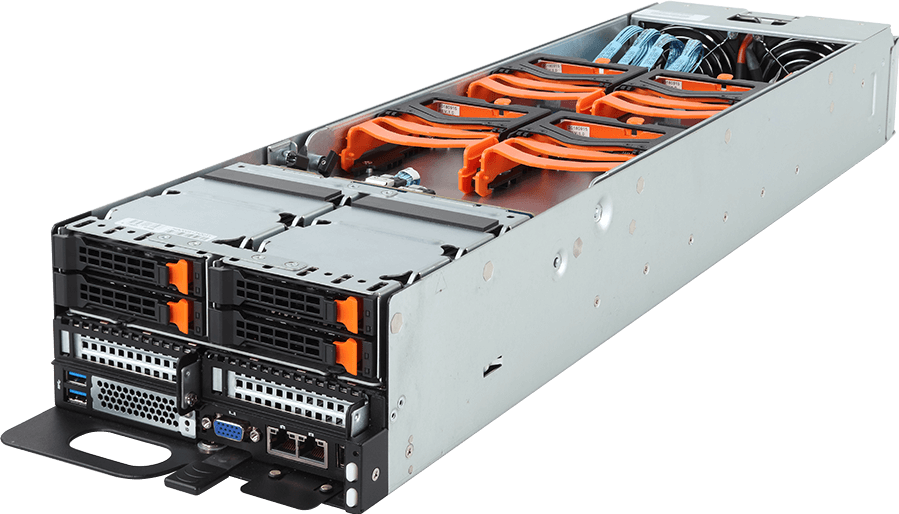

    TO22-Z62

    Discontinued

    Rev. A00
    AMD EPYC™ DP Compute Nodes
    • Dual AMD EPYC™ 7002 and 7001 series processor family
    • 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
    • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
    • 1 x Dedicated management port
    • 4 x 2.5" hybrid NVMe/SATA/SAS
    • 4 x 2.5" NVMe fixed bays
    • 2 x PCIe Gen3 expansion slots
    • AST2500 Graphics & Remote Management Controller
    [#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#3] All trademarks and logos are the property of their respective owners.

    SPECIFICATIONS

    Dimensions (WxHxD, mm)
    3 Nodes/ 2OU
    180 x 90 x 690
    Motherboard
    MZ61-HD2
    CPU
    AMD EPYC™ 7002 series processor family
    Single processor, 7nm, Socket SP3
    Up to 64-core, 128 threads per processor
    cTDP up to 200W

    Compatible with AMD EPYC™ 7001 series processor family
    Memory
    16 x DIMM slots
    DDR4 memory supported only
    8-Channel memory architecture
    RDIMM modules up to 64GB supported
    LRDIMM modules up to 128GB supported
    Memory speed: Up to 3200*/ 2933 MHz

    - Note:
    * Follow BIOS setting and memory QVL list if running 3200 Mhz
    LAN
    2 x 1Gb/s LAN ports (Intel® I350-AM2)
    1 x 10/100/1000 management LAN
    Storage
    Front side: 4 x 2.5" hybrid NVMe/SATA/SAS
    Internal: 4 x 2.5" NVMe fixed bays
    SAS
    Add-on card available
    RAID
    Optional
    Expansion Slots
    2 x PCIe x16 (Gen3 x16) slots, Low profile, half length
    1 x OCP mezzanine slot (Gen3 x16), occupied by CNVO124, 4 x U.2 HBA
    Front I/O
    2 x USB 3.0
    1 x VGA
    2 x RJ45
    1 x MLAN
    1 x Power button with LED
    1 x ID button with LED
    8 x HDD LED
    1 x System status LED
    System Management
    Aspeed® AST2500 management controller
    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
    GIGABYTE Server Management (GSM)
    Weight
    7.32kg
    System Fans
    2 x 80x80x38mm (14900rpm) fan modules per nodes
    Packaging Dimensions
    980 x 339 x 239 mm
    Packaging Content
    1 x TO22-Z62
    Part Numbers
    Barebone package: 6NTO22Z62MR-00-A*
    Spare parts:
    - Motherboard: 9MZ61HD2NR-00-2*
    - CPU heatsink: 25ST1-15320E-J1R/ 25ST1-363100-C1R
    [#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#3] All trademarks and logos are the property of their respective owners.

    SUPPORT

    • Downloads
      • Driver
      • BIOS
      • Utility
    • Manual
    • Support List
      • QVL
    Online Support
    Driver
    BIOS
    Utility
    QVL
    • All
    • All
    • Windows Server 2019
    • Windows Server 2016 64bit
    Chipset
    Chipset
    Version
    Size
    Date
    AMD Chipset Driver
    Version : 1.07.12.1102
    17.05 MB
    Aug 06, 2019
    Download
    OS: Windows Server 2016 64bit,Windows Server 2019
    LAN
    LAN
    Version
    Size
    Date
    Intel® LAN Driver and Utility
    Version : 24.0
    542.58 MB
    Aug 06, 2019
    Download
    OS: Windows Server 2016 64bit,Windows Server 2019
    VGA
    VGA
    Version
    Size
    Date
    ASPEED Graphic Driver
    Version : 1.06
    1.78 MB
    Aug 06, 2019
    Download
    OS: Windows Server 2016 64bit,Windows Server 2019
    BIOS
    Description
    Version
    Size
    Date
    Updated SMM Lock Bypass CVE-2023-31315
    Version : R40_F24
    26.54 MB
    Nov 12, 2024
    Download

    Windows and UEFI mode flash BIOS SOP
    Please download BIOS update tool from AMI Website

    -
    0.31 MB
    Jan 29, 2021
    Download
    Warning:
    Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

    What is a BETA?
    BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
    • All
    • All
    • Windows Server 2022
    • Windows Server 2019
    • Windows Server 2016 R2 64bit
    • Windows Server 2016 64bit
    • Windows Server 2012 R2 64bit
    • Windows Server 2012 64bit
    • Windows 10 64bit
    • VMware
    • Ubuntu
    • Linux CentOS
    • Linux
    Utility
    Description
    Version
    Size
    Date
    GSM CLI
    Version : 1.1.3
    37.29 MB
    Apr 18, 2025
    Download
    OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
    GSM Server
    Version : 2.12
    926.33 MB
    Jan 18, 2023
    Download
    OS: Linux,Windows Server 2016 64bit,Windows Server 2019
    GSM Agent
    Version : 2.5
    720.29 MB
    Dec 27, 2021
    Download
    OS: Linux,Windows Server 2016 64bit,Windows Server 2019
    BMC Restore Default Setting utility
    Version : 1.0
    0.15 MB
    Mar 17, 2020
    Download
    OS: Ubuntu
    GSM vCenter plugin
    Version : 0.05
    1856.48 MB
    Oct 08, 2018
    Download
    OS: VMware
    Manual
    Description
    Version
    Size
    Date
    Redfish API Reference Guide
    Version : 1.0
    5.51 MB
    Mar 09, 2023
    Download
    Default
    User Guide - GSM Server
    Version : 1.2
    5.09 MB
    Feb 19, 2021
    Download
    English
    User Guide - GIGABYTE Management Console (AMI)
    Version : 1.0
    14.16 MB
    Jun 10, 2020
    Download
    English
    User Manual
    Version : 1.0
    42.72 MB
    Mar 03, 2020
    Download
    English
    User Guide - ErP Mode BIOS Setup
    Version : 1.0
    0.68 MB
    Feb 26, 2020
    Download
    English
    User Guide - GIGABYTE GSM Agent
    Version : 1.0
    1.41 MB
    Feb 19, 2019
    Download
    English
    Description
    Version
    Size
    Date
    QVL Support List
    Version : 1.0
    0.08 MB
    Feb 05, 2021
    Download
    QVL for TO22-Z62 (2021/Q1)
