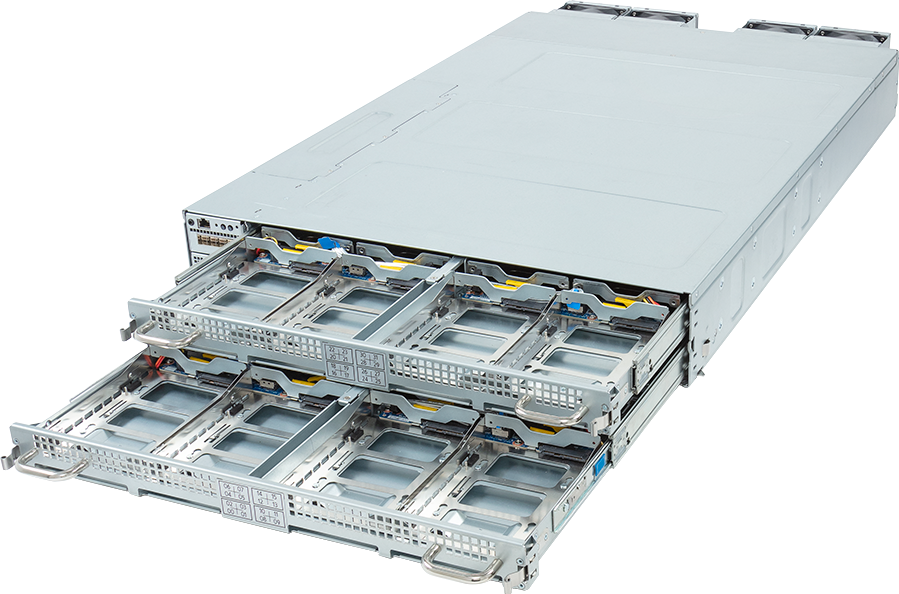

TO24-JD1 (rev. 100)
ORV3 Storage Node
- 2OU Rackmount, ORV3
- 32 x 3.5"/2.5" HDD/SSD bays
- 1 x dedicated management port
- 6 x Broadcom SAS4X32 expanders
- 8 x Mini-SAS HD ports
- Aspeed® AST2520 remote management controller
Request a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2OU
537 x 93 x 807.6
537 x 93 x 807.6
Open Rack Version
ORV3
LAN
1 x 100/1000 management LAN
Storage
32 x 3.5"/2.5" HDD/SSD bays
SATA
Supported
SAS
Supported
RAID
Depends on SAS Card
SAS Expander
6 x Broadcom SAS4X32 SAS expanders, dual-path
Front I/O
8 x Mini-SAS HD ports
1 x Power button
1 x BMC reset button
1 x Audio jack for UART
1 x System status LED
1 x ID button with LED
1 x MLAN Access LED
1 x Power button
1 x BMC reset button
1 x Audio jack for UART
1 x System status LED
1 x ID button with LED
1 x MLAN Access LED
System Management
Aspeed® AST2520 management controller
System Fans
4 x 92x92x38mm (16,500rpm) system fan modules on rear side of the chassis
Packaging Dimensions
1115 x 724 x 288 mm
Packaging Content
1 x TO24-JD1
Part Numbers
Barebone package: 6NTO24JD1MR-00
No. of Bus Bars
1 x 48V Bus Bar
