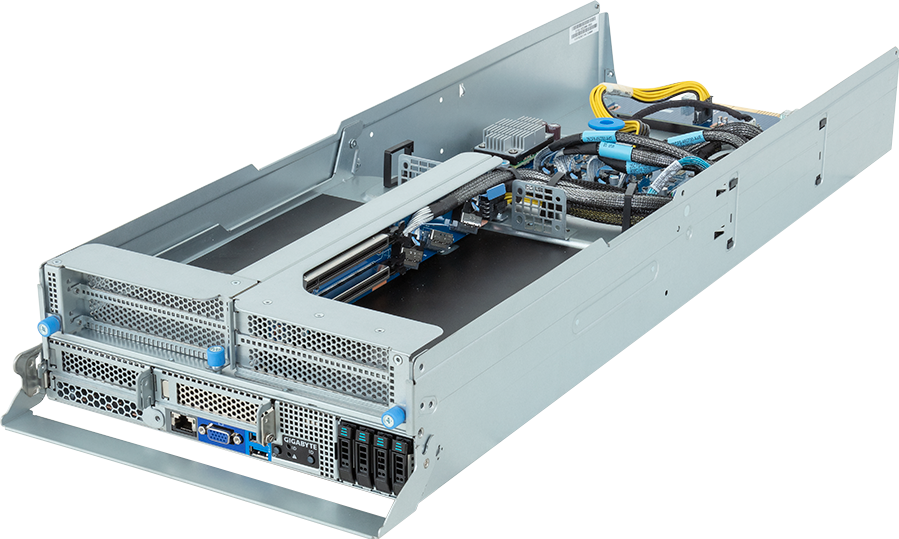

TO25-Z12-AA01

ORv3 Compute Node - AMD EPYC™ 9004 - 2OU 2-Node UP 1 x PCIe Gen5 GPU
  • Supports 1 x Dual slot Gen5 GPU
  • Single AMD EPYC™ 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 12 x DIMMs
  • Dual ROM Architecture
  • 4 x E1.S Gen4 NVMe hot-swap bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface (optional)
  • 1 x FHFL PCIe Gen5 x16 slot for GPUs
  • 1 x FHFL PCIe Gen5 x16 slot
  • 1 x LP PCIe Gen5 x16 slot
  • 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
  • 48V DC Bus Bar power solution
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2OU 2-Node
262.7 x 90 x 740
Open Rack Version
ORv3
Motherboard
MZ13-HD0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Single processor, cTDP up to 240W
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Front:
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
Storage
Front hot-swap:
4 x 9.5mm E1.S Gen4 NVMe

Optional internal M.2 (CMTP192):
1 x M.2 (2280/22110), PCIe Gen4 x4
SAS
N/A
RAID
N/A
PCIe Expansion Slots
PCIe Cable x 2:
- 1 x FHFL x16 (Gen5 x16), for GPUs
- 1 x FHFL x16 (Gen5 x16)

Riser Card CRSH01Q:
- 1 x LP x16 (Gen5 x16)

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x ID LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Supports up to 1600W
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
N/A
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
N/A
Packaging Content
1 x TO25-Z12-AA01
1 x CPU heatsink
1 x GPU power cable (12VHPWR, 350mm)
Part Numbers
- Barebone package (EPYC 9005/9004): 6NTO25Z12DR000AB01*
- Barebone package (EPYC 9004): 6NTO25Z12DR000AA01*
- Motherboard: 9MZ13HD0UR-000*
- CPU heatsink: 25ST1-553206-M1R
- Front panel board - COFP111: 9COFP111NR-00*
- Riser card - CRSH01Q: 9CRSH01QNR-00*
- EDSFF base board - COBP740: 9COBP740NR-00*
- EDSFF riser card - CSPP010: 9CSPP010NR-00*
- GPU power cable (12VHPWR, 350mm): 25CRI-350006-Y4R

Optional parts:

- M.2 expansion card - CMTP192: 9CMTP192NR-00*
No. of Bus Bars
1 x 48V Bus Bar
