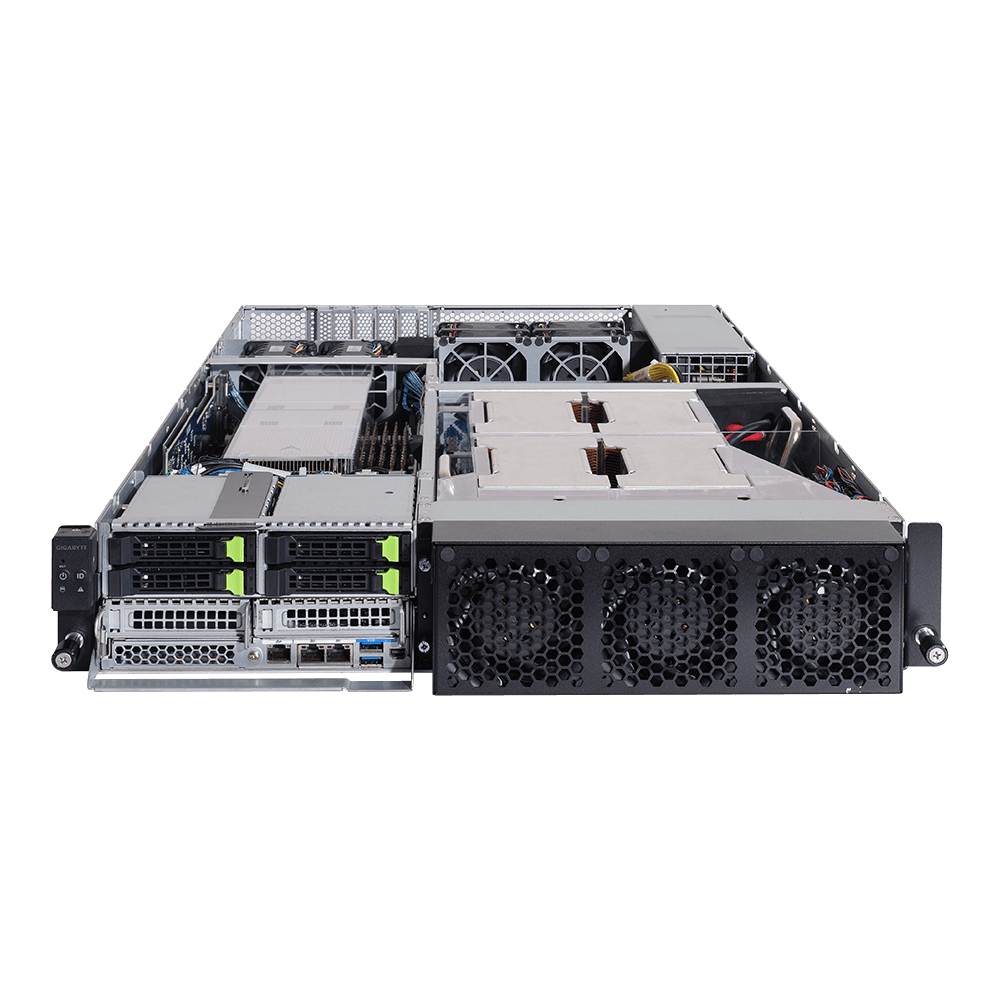

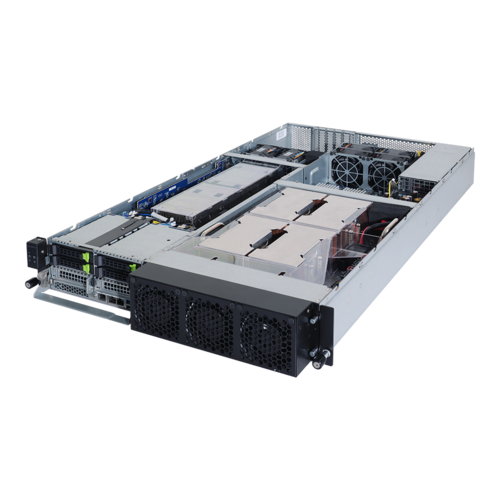

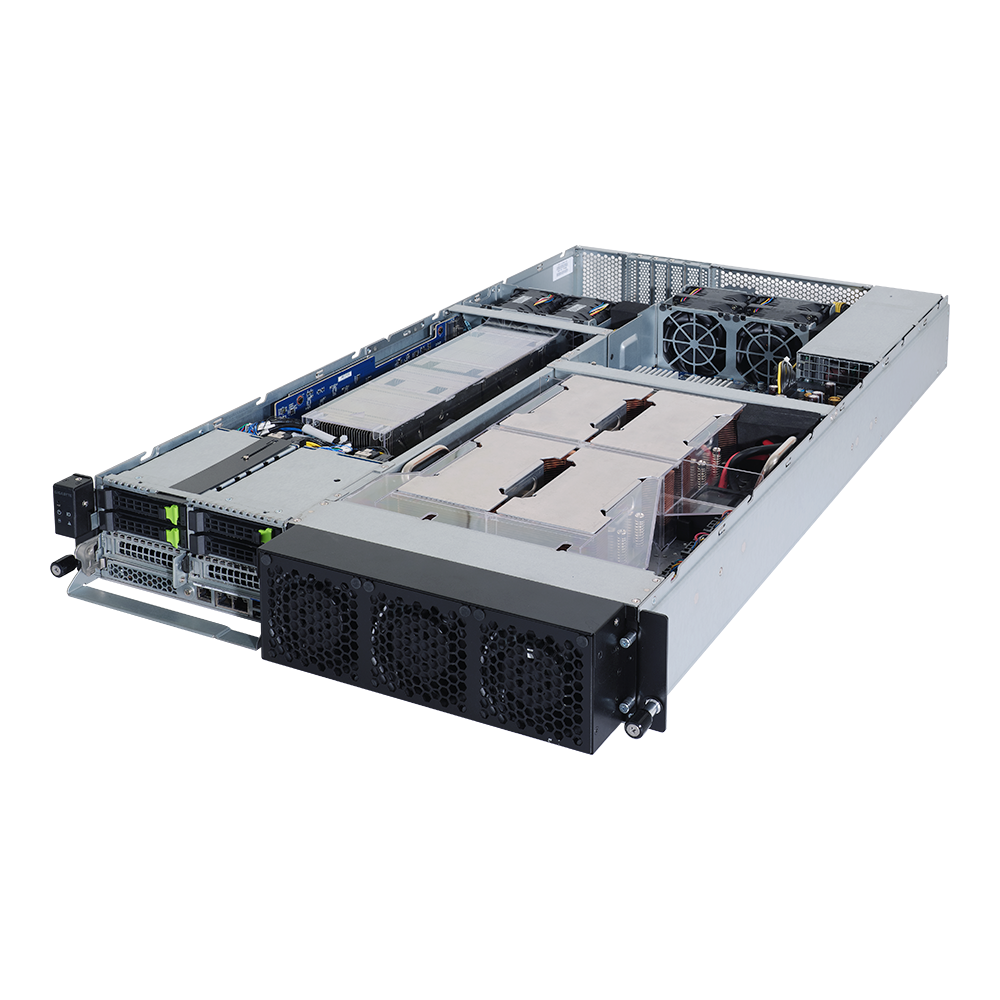

G262-ZR0 (rev. 100)
(rev.A00)

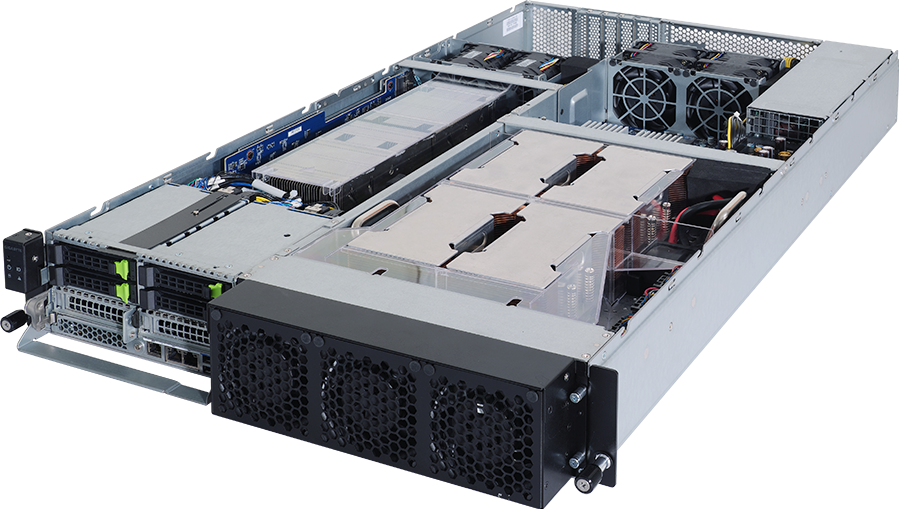

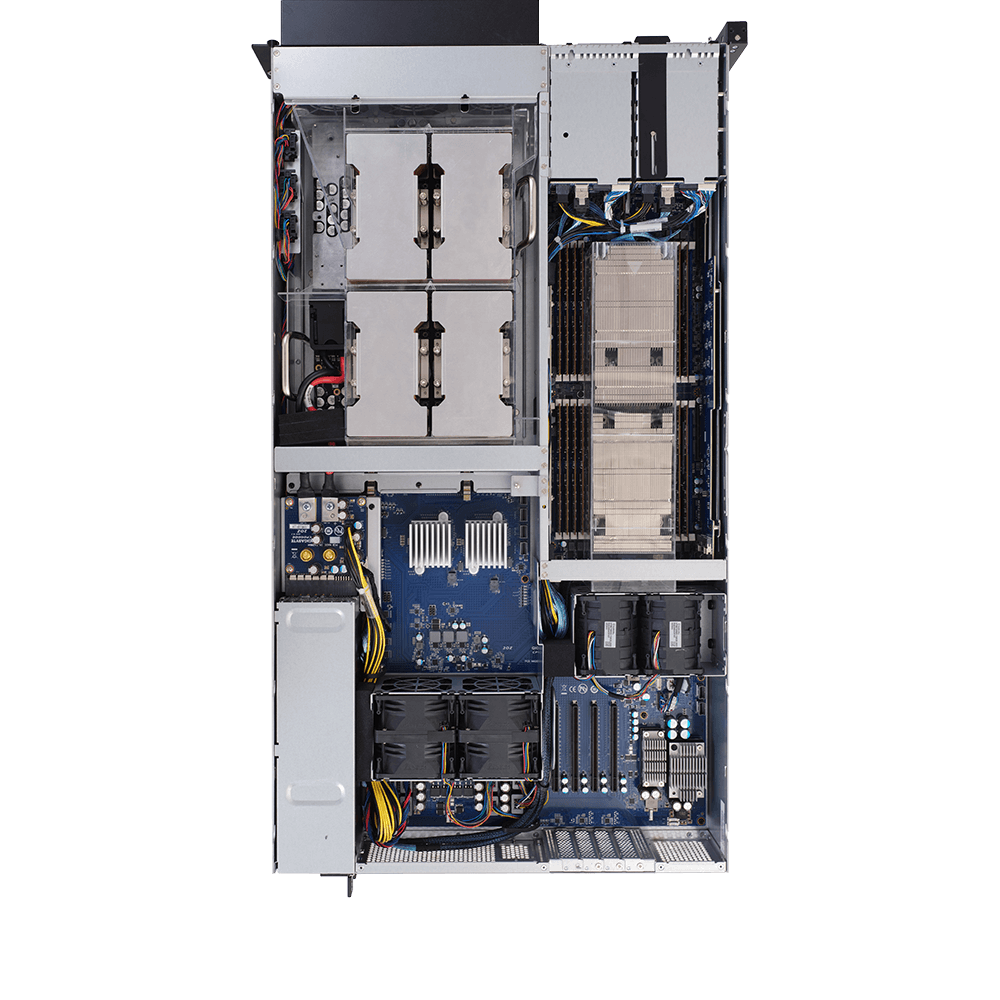

HPC Server - 2U DP SXM4 A100 4 GPU Server
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
Application:
- Supports NVIDIA HGX™ A100 with 4 x SXM4 GPU
- Supports NVIDIA® NVLink® technology
- Up to 600GB/s GPU to GPU interconnection
- Dual AMD EPYC™ 7002 series processor family
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x dedicated management port
- 4 x 2.5" Gen4 U.2 NVMe/SATA/SAS hot-swappable HDD/SSD bays
- Ultra-Fast M.2 with PCIe Gen4 x4 interface
- 6 x Low profile Gen4 x16 expansion slots
- 1 x OCP 3.0 Gen4 x16 mezzanine slot
- 3000W 80 PLUS Platinum redundant power supply
Request a Quote
1/5
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 86.8 x 800
448 x 86.8 x 800
Motherboard
MZ62-HD5
CPU
AMD EPYC™ 7002 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 240W, cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 240W, cTDP up to 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
Total up to 4TB 3DS/ RDIMM/ LRDIMM modules supported
Memory speed: Up to 3200/ 2933 MHz
DDR4 memory supported only
8-Channel memory per processor architecture
Total up to 4TB 3DS/ RDIMM/ LRDIMM modules supported
Memory speed: Up to 3200/ 2933 MHz
LAN
Front Side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
4 x 2.5" Gen4 U.2 NVMe/ SATA/ SAS hot-swappable HDD/SSD bays
SAS card is required for SAS devices support
SAS card is required for SAS devices support
SAS
Depends on optional SAS Card
RAID
Depends on optional SAS Card
Peripheral Drives
N/A
Expansion Slots
4 x SXM4 sockets for NVIDIA HGX™ A100 4-GPU 40GB/80GB module
Total 6 x Low profile Gen4 x16 expansion slots
- Front Side: 2 x Low profile Gen4 x16 expansion slots
- Rear Side: 4 x Low profile Gen4 x16 expansion slots
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function by onboard NCSI_SW
1 x M.2 slot: (Onboard)
- M-key
- PCIe Gen4 x4
- Supports NGFF-2280/22110 cards
2 x M.2 slos: (From CMTP072)
- M-key
- PCIe Gen4 x4
- Supports NGFF-2242/2260/2280/22110 cards
Total 6 x Low profile Gen4 x16 expansion slots
- Front Side: 2 x Low profile Gen4 x16 expansion slots
- Rear Side: 4 x Low profile Gen4 x16 expansion slots
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function by onboard NCSI_SW
1 x M.2 slot: (Onboard)
- M-key
- PCIe Gen4 x4
- Supports NGFF-2280/22110 cards
2 x M.2 slos: (From CMTP072)
- M-key
- PCIe Gen4 x4
- Supports NGFF-2242/2260/2280/22110 cards
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
1 x mini-DP
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD access LED
Rear I/O
-
Backplane I/O
4 x 2.5" NVMe/ SATA hybrid ports
Speed and bandwidth: PCIe Gen4 or SATA 6Gb/s
Speed and bandwidth: PCIe Gen4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
2 x 3000W redundant power supply
80 PLUS Platinum
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+54V/ 95.6A
+12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+54V/ 178.1A +12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
80 PLUS Platinum
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz
DC Input:
240Vdc/ 14A
DC Output:
- Max 1200W/ 100-127V~
+54V/ 95.6A
+12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+54V/ 178.1A +12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
System Fans
2 x 60x60x76mm (21,700rpm)
5 x 80x80x80mm (17,000rpm)
5 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G262-ZR0
2 x CPU fan-sinks
1 x Rail kit
2 x CPU fan-sinks
1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG262ZR0MR-1xx (40GB module)
Barebone with rail kit: 6NG262ZR0MR-8xx (80GB module)
- Motherboard: 9MZ62HD5NR-00
- Rail kit: 25HB2-A86102-K0R
- CPU fan-sink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- GPU heat-sink: 25ST1-2532G0-F2R
- Back plane board_2-port: 9CBP2023NR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-230003-D0S
- C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
Barebone with rail kit: 6NG262ZR0MR-8xx (80GB module)
- Motherboard: 9MZ62HD5NR-00
- Rail kit: 25HB2-A86102-K0R
- CPU fan-sink: 25ST1-3532G0-M1R/25ST1-3532G1-M1R
- GPU heat-sink: 25ST1-2532G0-F2R
- Back plane board_2-port: 9CBP2023NR-00
- Front panel board: 9CFP1000NR-00
- Power supply: 25EP0-230003-D0S
- C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
