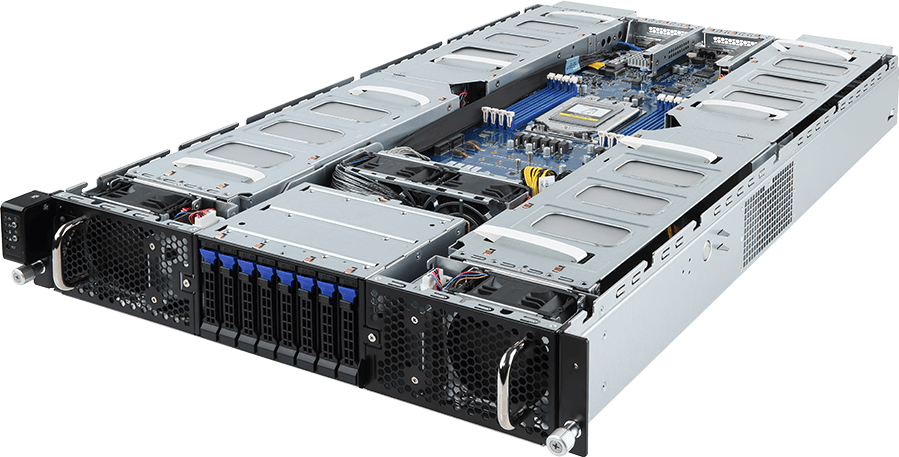

G291-Z20Legacy | Software updates supported

2U
448 x 87.5 x 800

MZ21-G20

AMD EPYC™ 7002 series processors
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

Compatible with AMD EPYC™ 7001 series processors

1 x LGA 4094
Socket SP3

System on Chip

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MHz

Note: Follow BIOS setting and memory QVL list if running 3200 Mhz

Rear side:
2 x SFP+ 10Gb/s LAN ports (Mellanox^® ConnectX-4 Lx)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Front side:
8 x 2.5" SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448
CRA4548

Depends on SAS Add-on card

N/A

8 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs
2 x PCIe x16 (Gen3 x16) low-profile slots

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2
- Supports NGFF-2242/2260/2280/22110 cards

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative

1 x TPM header
1 x Sli-SAS connectors
2 x M.2 slots
1 x Serial header
1 x Buzzer

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

2 x USB 3.0
1 x VGA
2 x SFP+
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED

Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000

2 x 2200W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input:
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+ 12.12V/ 95.6A
+ 12Vsb/ 3.5A
- Max 2200W/ 200-240V~
+ 12.12V/ 178.1A
+ 12Vsb/ 3.5A

NOTE: The system power supply requires C19 power cord

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage/Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

For AMD EPYC™ 7002 series processors

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later

For AMD EPYC™ 7001 series processors

Windows Server 2012 R2 with Update
Windows Server 2016

Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

8 x 80x80x38mm (16,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1133 x 724 x 261 mm

1 x G291-Z20
1 x CPU heatsink
1 x Rail kit

- Barebone package: 6NG291Z20MR-00-A*
- Motherboard: 9MZ21G20NR-00-2*
- Tool-less rail kit: 25HB2-A86102-K0R
- CPU heatsink for 200W CPU: 25ST1-153104-A8R
- CPU heatsink for 240W CPU: 25ST1-44320G-A0R (optional)
- Fan module: 25ST2-883827-D0R
- Power supply: 25EP0-222001-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
- 2 x Internal SSD kit: 6NG291281SR-00 (optional)
