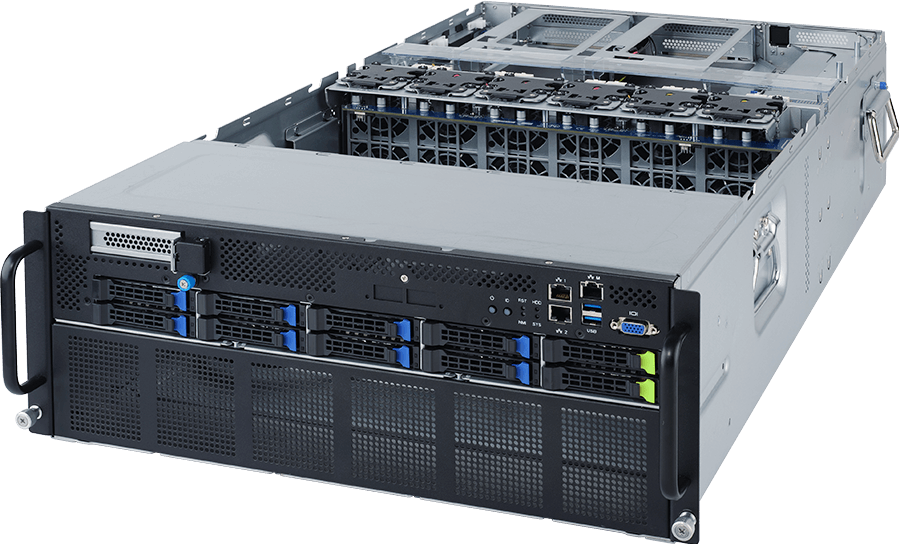

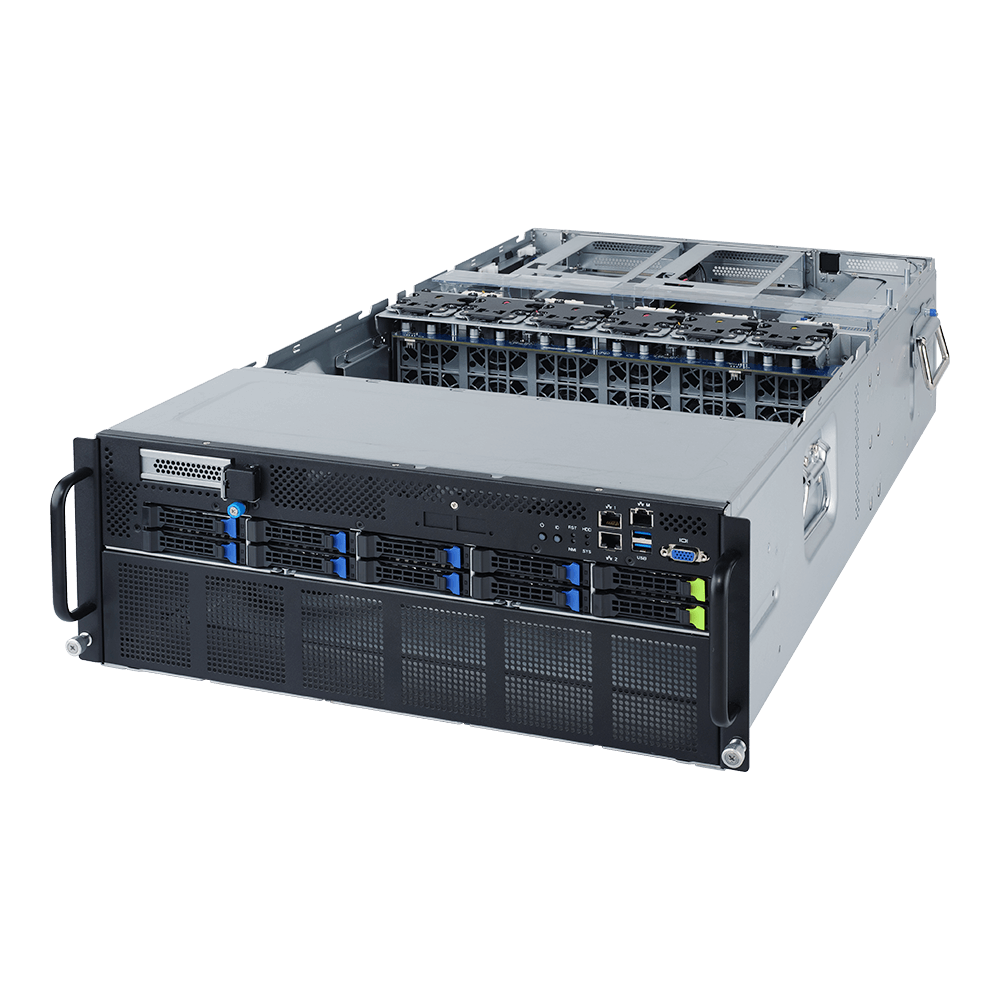

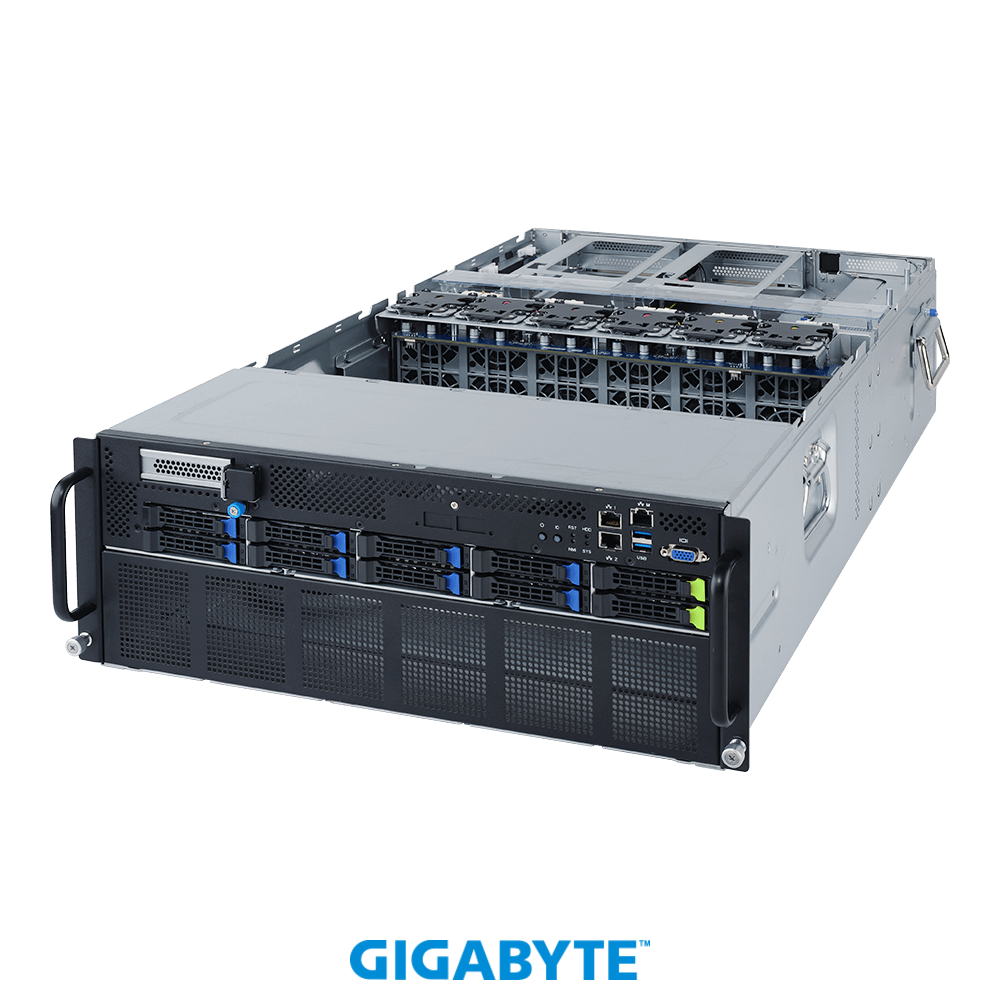

G482-Z54 (rev. A00)

(rev.100)

HPC Server - 4U DP 8 x Gen4 GPU Server | Application: AI , AI Training , AI Inference & HPC

Application:

AI AI Training AI Inference HPC

Up to 8 x PCIe Gen4 GPGPU cards
NVIDIA-Certified system for scalability, functionality, security, and performance
Dual AMD EPYC™ 7003 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
2 x 1Gb/s BASE-T LAN ports (Intel^® I350-AM2)
1 x dedicated management port
2 x 2.5" NVMe, 8 x 2.5" SATA hot-swappable HDD/SSD bays
8 x FHFL Gen4 expansion slots for GPU cards
1 x FHFL PCIe Gen4 x16 expansion slot
3 x 80 PLUS Platinum 2200W redundant PSU

Request a Quote

COMPARE

1/4

Select All

Cancel All Download

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
448 x 176 x 880

Motherboard

MZ52-G41 Rev. 3.0

CPU

AMD EPYC™ 7003 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Fully support 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processor family

Socket

Socket SP3

Chipset

System on Chip

Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

LAN

Front Side:
2 x 1Gb/s BASE-T LAN ports (Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Audio

N/A

Storage

2 x 2.5" NVMe, 8 x 2.5" SATA hot-swappable HDD/SSD bays*

NOTE: non-supported SAS devices

SAS

N/A

RAID

N/A

Peripheral Drives

N/A

Expansion Slots

8 x PCIe x16 slots (Gen4 x16 bus) for GPUs
1 x FHFL PCIe Gen4 x16 expansion slot in rear side#

# Non-supported SAS Card with internal cable due to cable routing limitation

- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations

Internal I/O

1 x TPM header
1 x Front panel header

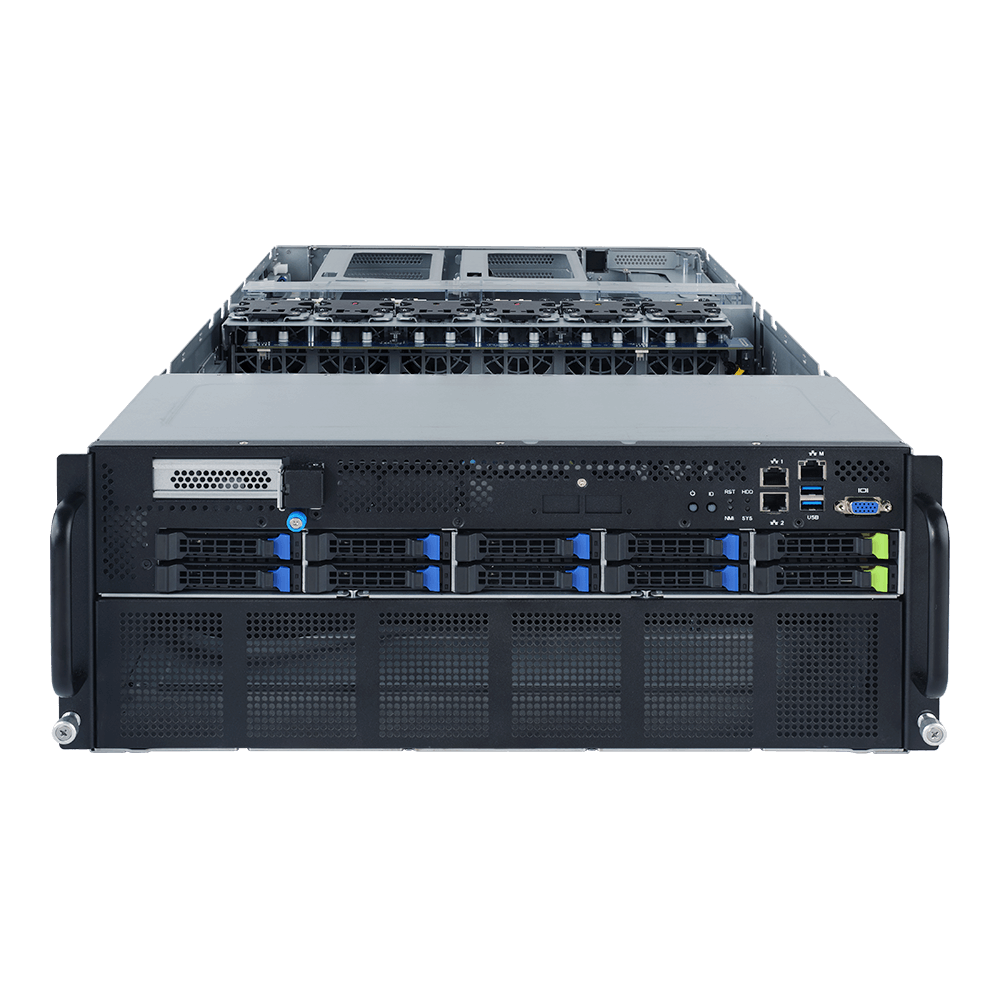

Front I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED

Rear I/O

N/A

Backplane I/O

2 x NVMe and 8 x SATA ports

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

3 x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later

System Fans

12 x 60x60x38mm (21,700rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1109 x 609 x 606 mm

Packaging Content

1 x G482-Z54
2 x CPU fan-sinks
1 x Rail kit

Part Numbers

Barebone with rail kit: 6NG482Z54MR-00 Rev. A00
- Motherboard: 9MZ52G41NR-00
- Rail kit: 25HB2-A96100-K0R
- CPU fan-sink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- Power supply: 25EP0-222003-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R ( in option)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R ( in option)
- GPU cable for NVIDIA A10: 25CRI-100001-B0R ( in option)
