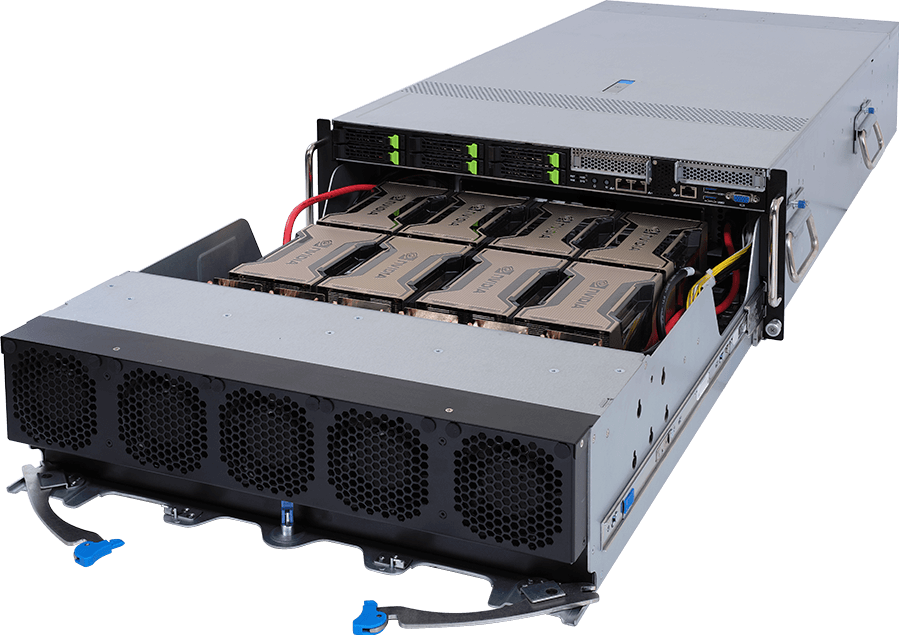

G492-ID0Legacy | Software updates supported

Rev. 100

HPC/AI Server - 3rd Gen Intel^® Xeon^® Scalable - 4U DP HGX™ A100 8-GPU

NVIDIA-Certified Systems™ - Data Center Servers
NVIDIA HGX™ A100 with 8 x SXM4 GPUs
NVIDIA^® NVLink^® and NVSwitch™ technology
Up to 600GB/s GPU to GPU interconnection
3rd Gen Intel^® Xeon^® Scalable Processors
Dual processor, 10nm technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
Supports Intel^® Optane™ Persistent Memory 200 series
Dual ROM Architecture
Intel^® C621A Chipset
2 x 10Gb/s BASE-T LAN ports via Intel^® X710-AT2
1 x Dedicated management port
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
2 x M.2 slots with PCIe Gen4 x4 interface
2 x SATA DOM supported
10 x LP PCIe Gen4 x16 slots
3+1 3000W 80 PLUS Platinum redundant power supplies

Save

Overview
Specifications
Support
Related Resources

Specifications

Dimensions (WxHxD, mm)

4U
448 x 175.2 x 945

Motherboard

MG62-G41

CPU

3rd Generation Intel^® Xeon^® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket

2 x LGA 4189
Socket P+

Chipset

Intel^® C621A Chipset

Memory

32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM/LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz

LAN

Front side:
2 x 10Gb/s BASE-T LAN ports (Intel^® X710-AT2)
1 x 10/100/1000 Management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays*

*NVMe devices do not support hot-swappable function

SAS

N/A

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

NVIDIA HGX™ A100 8-GPU 40GB/80GB module

8 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1

2 x M.2 slots (CMTP062):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2242/2260/2280 cards

Internal I/O

1 x TPM header
1 x VROC connector
2 x SATA DOM connectors
1 x Front panel header

Front I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply^[#1]

3+1 3000W 80 PLUS Platinum redundant power supplies

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input:
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+ 54V/ 26.6A
+ 12Vsb/ 3A
- Max 2900W/ 200-220V~
+ 54V/ 53.4A
+ 12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+ 54V/ 55.6A
+ 12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 7.9 (x64) or later
Red Hat Enterprise Linux 8.2 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

System Fans

11 x 80x80x80mm (17,000rpm)
6 x 40x40x56mm (31,000rpm)
4 x 40x40x28mm (25,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Net Weight: 51.2 kg
Gross Weight: 103 kg

Packaging Dimensions

1176 x 782 x 822 mm

Packaging Content

1 x G492-ID0
2 x CPU heatsinks
1 x L-shape Rail kit

Part Numbers

- Barebone package with 40GB module: 6NG492ID0MR-00-1*
- Barebone package with 80GB module: 6NG492ID0MR-00-8*
- Motherboard: 9MG62G41NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- CPU heatsink: 25ST1-25320I-M1R
- Front panel board - CFPG430: 9CFPG430NR-00
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module (40x40x56mm): 25ST2-405629-N2R
- Fan module (40x40x28mm): 25ST2-44282D-D0R
- Fan module (80x80x80mm): 25ST2-808036-S1R/25ST2-808037-S1R
- M.2 extension board - CMTP062: 9CMTP062NR-00
- Power supply: 25EP0-230003-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG492ID0SR-RMA-A100

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
