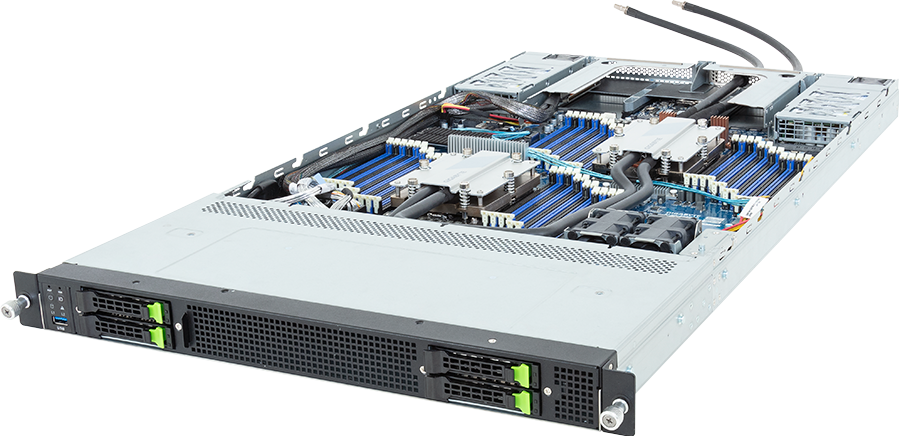

R183-ZK0-LAJ1
Rack Server - AMD EPYC™ 9005/9004 - 1U DP 4 x Gen5 NVMe/SATA/SAS-4 DLC
- Direct liquid cooling solution
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 48 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 2 x M.2 slots with PCIe Gen3 x4 and x2 interface
- 1 x FHHL PCIe Gen5 x16 slot
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- 1+1 2000W 80 PLUS Titanium redundant power supplies
Quick Shipping
See More Models
More ready-to-ship models in the R183 series.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 815
438 x 43.5 x 815
Motherboard
MZK3-LM0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
48 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from CPU_1)
- (SATA via CRS2810 from CPU_0)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
[1] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from CPU_1)
- (SATA via CRS2810 from CPU_0)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1
[1] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
PCIe Cable:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
2 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Support NCSI function
- 1 x FHHL x16 (Gen5 x16), from CPU_1
2 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Support NCSI function
Front I/O
1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply
1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
2 x 40x40x28mm (34,000rpm)
6 x 40x40x56mm (38,000rpm)
6 x 40x40x56mm (38,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
[Note] If the room's relative humidity exceeds 60%, the inlet water temperature must be set between 40°C and 45°C to avoid condensation and ensure the system continues to operate optimally.
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
[Note] If the room's relative humidity exceeds 60%, the inlet water temperature must be set between 40°C and 45°C to avoid condensation and ensure the system continues to operate optimally.
Packaging Dimensions
1086 x 588 x 261 mm
Packaging Content
1 x R183-ZK0-LAJ1
1 x GIGABYTE CPU cold plate loop
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
1 x GIGABYTE CPU cold plate loop
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit
Part Numbers
- Barebone w/ cold plates:
    - EPYC 9005/9004: 6NR183ZK0DR000LCJ1*
    - EPYC 9004: 6NR183ZK0DR000LAJ1*
- Barebone w/o cold plates:
    - EPYC 9005/9004: 6NR183ZK0DZ000LCJ1*
    - EPYC 9004: 6NR183ZK0DZ000LAJ1*
- Motherboard: 9MZK3LM0UR-000-3*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- GIGABYTE CPU cold plate loop: 25ST7-20000M-J2R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module 40x40x28mm: 25ST2-44282I-N2R
- Fan module 40x40x56mm: 25ST2-40562O-D0R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000Q-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
    - EPYC 9005/9004: 6NR183ZK0DR000LCJ1*
    - EPYC 9004: 6NR183ZK0DR000LAJ1*
- Barebone w/o cold plates:
    - EPYC 9005/9004: 6NR183ZK0DZ000LCJ1*
    - EPYC 9004: 6NR183ZK0DZ000LAJ1*
- Motherboard: 9MZK3LM0UR-000-3*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- GIGABYTE CPU cold plate loop: 25ST7-20000M-J2R
- M.2 heatsink: 12SP2-11000E-00R
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module 40x40x28mm: 25ST2-44282I-N2R
- Fan module 40x40x56mm: 25ST2-40562O-D0R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-22000Q-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
