R292-4S1

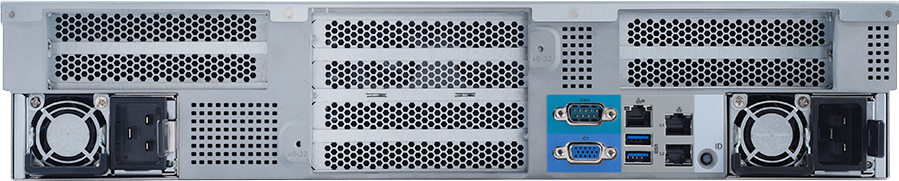

4-Way Rack Server - 3rd Gen Intel® Xeon® Scalable - 2U QP 10-Bay Gen3 NVMe/SATA/SAS
- Quad 3rd Gen Intel® Xeon® Scalable Processors
- 6-Channel DDR4 RDIMM/LRDIMM, 48 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x2 interface
- 8 x FHFL PCIe Gen3 x16 slots
- 1 x OCP 3.0 Gen3 x16 slot on the front side
- 1+1 3200W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 858
438 x 87.5 x 858
Motherboard
MRQ2-4S0
CPU
3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum 8300 Processors
Intel® Xeon® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 250W
Intel® Xeon® Platinum 8300 Processors
Intel® Xeon® Gold 6300 Processors
6 UPI Links per processor
Quad processor, TDP up to 250W
Socket
4 x LGA 4189
Socket P5
Socket P5
Chipset
Intel® C621A
Memory
Total 48 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MT/s
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Supports Intel® Optane™ Persistent Memory 200 series
1.2V modules: 3200 (1DPC)/2933 (2DPC) MT/s
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
SAS card is required for SAS devices support
10 x 2.5" Gen3 NVMe/SAS/SATA hot-swappable bays
SAS card is required for SAS devices support
SATA
Supported
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRS202A:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_1
Riser Card CRS2040:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_1
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_2
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_3
Riser Card CRS2029:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_2
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_3
1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_1
Riser Card CRS2040:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_0
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_1
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_2
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_3
Riser Card CRS2029:
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_2
- 1 x PCIe x16 (Gen3 x16) FHFL slot, from CPU_3
1 x OCP 3.0 slot with PCIe Gen3 x16 bandwidth (Supports OCP 3.0 SFF standard), from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from PCH
- Supports 2280 cards
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 3200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 50/60Hz
- 200-208V~/ 16A, 50/60Hz
- 214-234V~/ 16A, 50/60Hz
- 240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1106W/ 100-127V~
+12.3V/ 87A
+12Vsb/ 3A
- Max 2434W/ 200-208V~
+12.3V/ 195A
+12Vsb/ 3A
- Max 2828W/ 214-234V~
+12.3V/ 227A
+12Vsb/ 3A
- Max 3234W/ 240V~ or 240Vdc Input
+12.3V/ 260A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2500 Baseboard Management Controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
SUSE Linux Enterprise Server 15 SP3
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 7.0 U1 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
SUSE Linux Enterprise Server 15 SP3
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 7.0 U1 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
System Fans
16 x 40x40x56mm (29,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1177 x 670 x 291 mm
Packaging Content
1 x R292-4S1
4 x CPU heatsinks
1 x 2-Section Rail kit
4 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR2924S1MR-00-1*
- Motherboard: 9MRQ24S0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R
- Fan module: 25ST2-405625-A0R
- Fan module: 25ST2-405626-A0R
- Fan module: 25ST2-405627-A0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232002-D0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- Motherboard: 9MRQ24S0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-243104-C1R
- M.2 heatsink: 12SP2-080027-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP10A5: 9CBP10A5NR-00
- Fan module: 25ST2-405624-A0R
- Fan module: 25ST2-405625-A0R
- Fan module: 25ST2-405626-A0R
- Fan module: 25ST2-405627-A0R
- Riser card - CRS202A: 9CRS202ANR-00
- Riser card - CRS2040: 9CRS2040NR-00
- Riser card - CRS2029: 9CRS2029NR-00
- Power supply: 25EP0-232002-D0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
