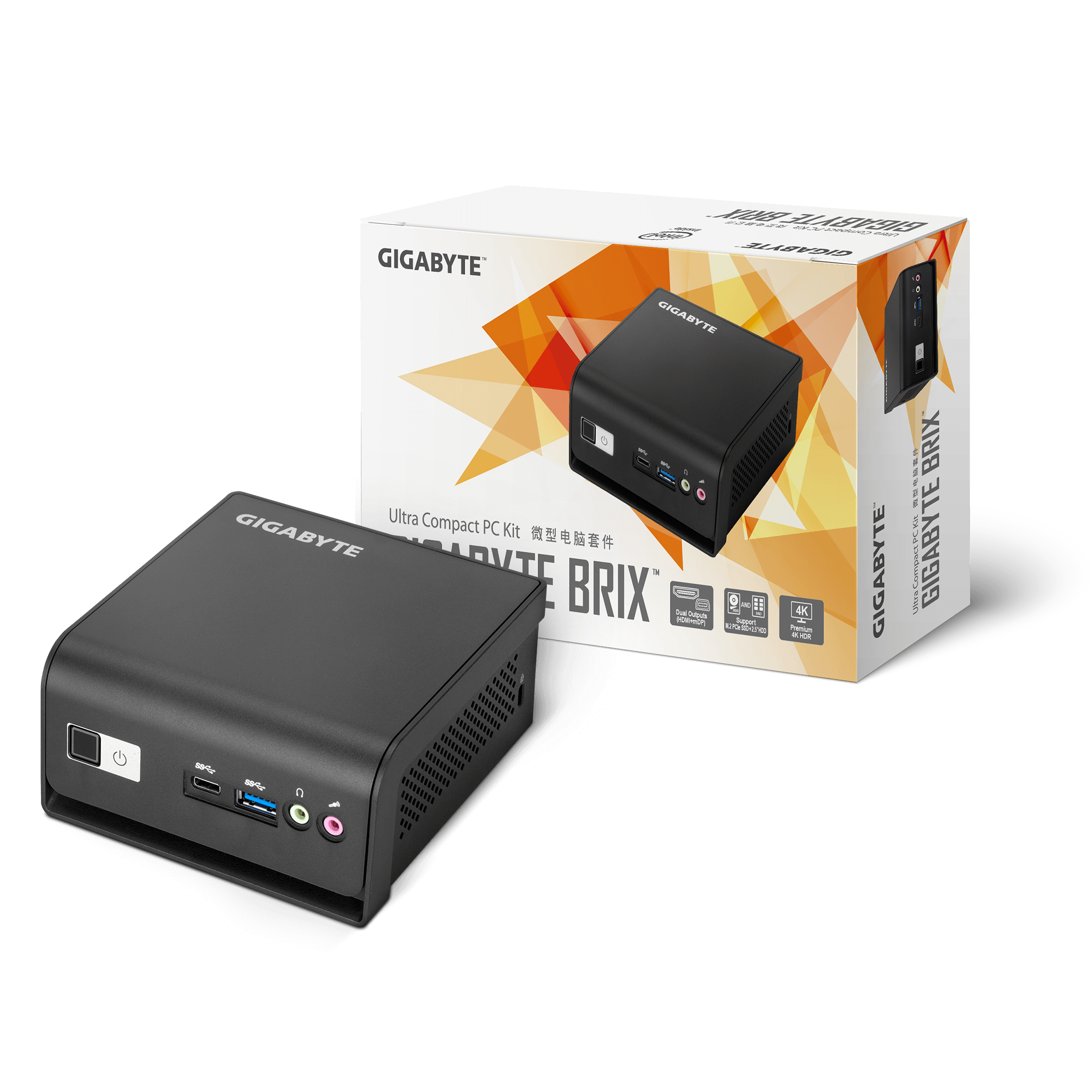

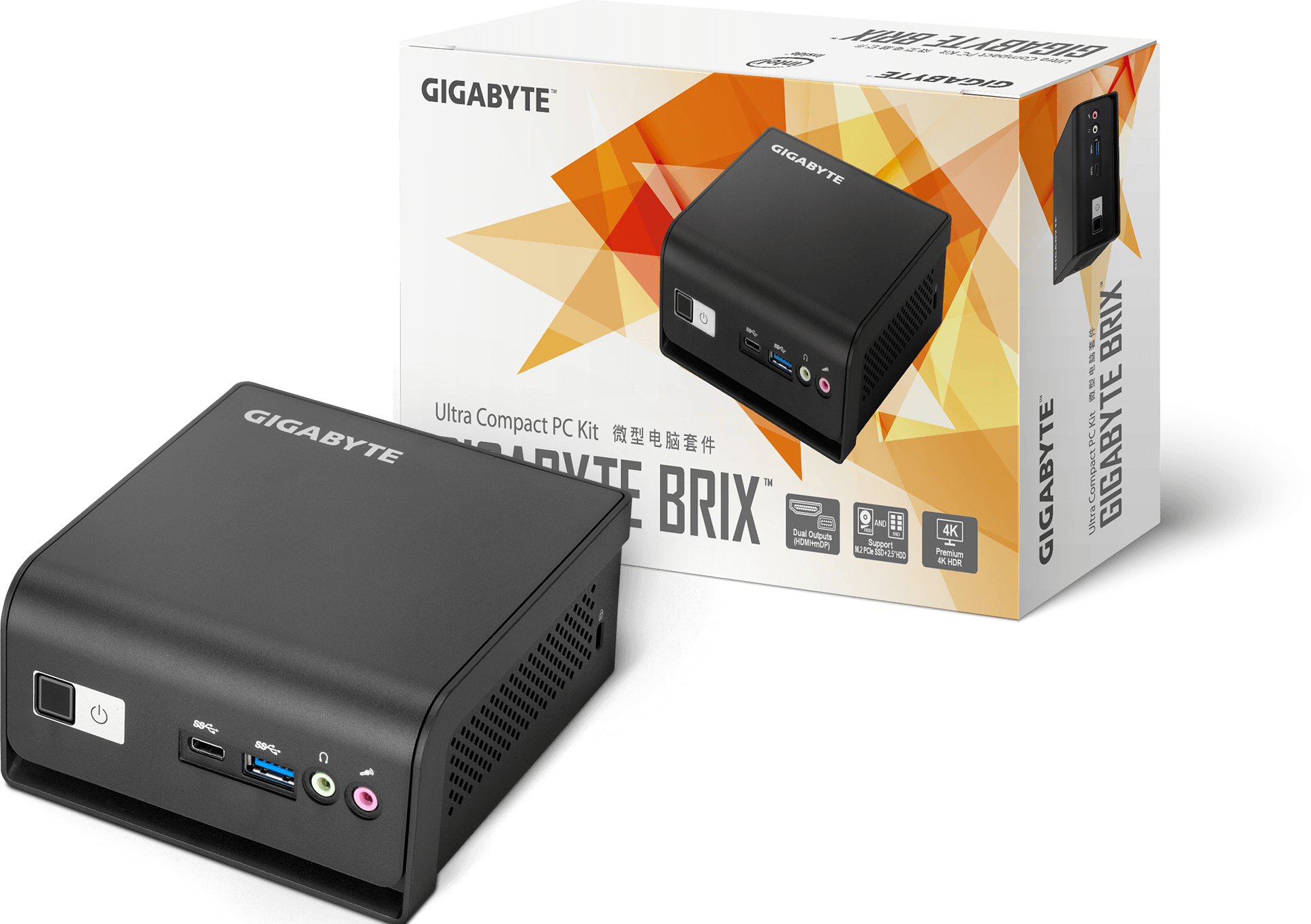

GB-BMCE-4500C (rev. 1.0)
- Fanless desigh with Intel® Celeron® Processor N4500 6W CPU
- Ultra compact PC design at only 0.67L (56.22x103x116.52mm)
- 1st 10 nm small core CPU
- Support M.2 2280 slot for SSD (support PCI-e x2+SATA)
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x SO-DIMM DDR4 slots support 2933MHz, Max 16GB
- 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2
- Realtek 8111HS Gigabit LAN
- HDMI 2.0b support 4K@60P HDR10
- MiniDP 1.4 support 4K@60P HBR2
- Realtek ALC255 Codec
- 4 x USB 3.1 (1 x USB Type-C)
- Headphone Jack
- Mic-phone Jack
- VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
- AC-DC adapter : 100-240V input, 19V 65W
- OS Support : Microsoft Windows 10 64Bit
- 1x Kensington Lock slot
- System Environment Operating Temperature: 0°C to +35°C
- System Storage Temperature: -20°C to +60°C
* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.
- ．Factory testing machine
- ．Bank ATM system
- ．Gaming equipment
- ．Vending machine
- ．Security system
- · Meeting room device
- · Workstation
- · Studio
- · Freelance office space
- ．Living room
- ．Shopping mall signboard
- ．Scoreboard system
- ．Split-flap display
- ．Indoor / Outdoor LED Display
- ．University computer labs
- ．Hospital / Medical equipment
Support HDMI 2.0b / DP 1.4b Dual Output
Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.
