  • Features 14nm Intel® N3350 to deliver to the most intuitive and integrated operating systems in the world
  • Supports 2.5” thickness 7.0/ 9.5mm Hard Drives (1 x 6Gbps SATA3)
  • Ultra compact PC design – 0.69L (56.1 x 107.6 x 114.4mm)
  • 1 x SO-DIMM DDR3L 1.35V Slots (1333/ 1600/ 1866 MHz)
  • Intel® IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card
  • Supports dual displays via a VGA and a HDMI port
  • Gigabit LAN
  • Audio jack (Headphone & Microphone)
  • VESA mounting bracket (75 x 75mm + 100 x 100mm)
  • Support Fanless Design

* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.


* Datasheet Download
  • Redefining the Desktop PC
    Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.
  • Intel® Celeron Processor
    The new generation of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics and computations. For the BRIX the new Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making BRIX the ideal solution for thin clients, POS solutions, and digital signage.

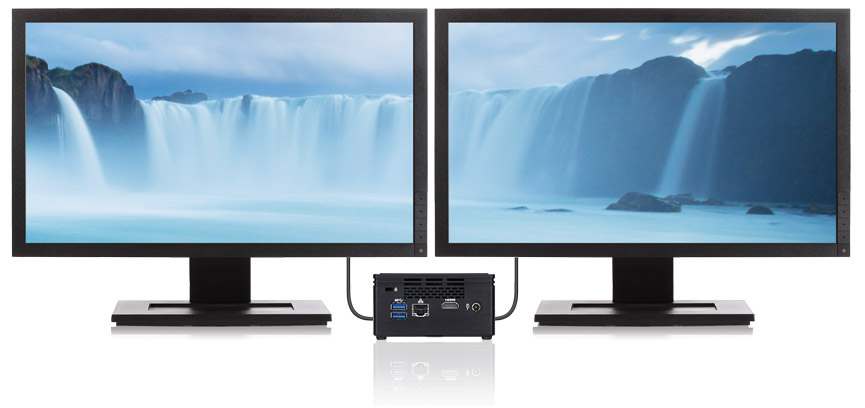

  • Dual Display
    With HDMI and VGA output, the BRIX can power two displays simultaneously, making it a perfect choice as a high productivity PC in both working environment and home entertainment.

















  • Advanced Features For Power Users
    The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.
  • VESA Support


    The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.





* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
