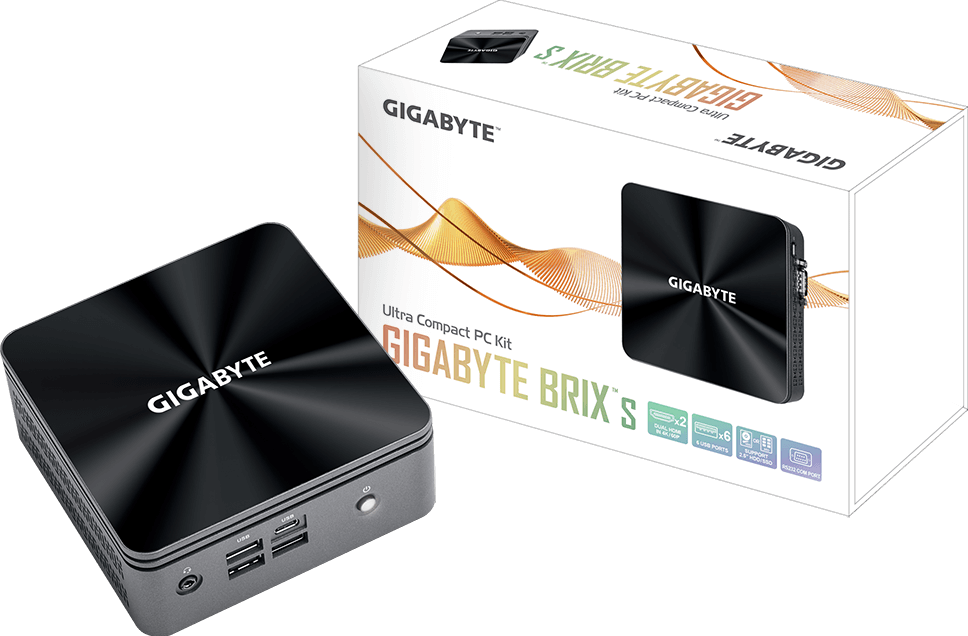

GB-BRi5H-10210(E) (Rev. 1.0)
BRIX / Ultra Compact PC kit
Specifications
- Dimension
- 46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
- Motherboard Size
- 105mm x 112.4mm
- CPU
- 10th Generation Intel® Core™ i5 Processor
i5-10210U 4.2GHz, 4 core (TDP 15W)
- Memory
- 2 x SO-DIMM DDR4 slot
2666MHz
Max. 64GB
- LAN
- Gigabit LAN (Intel i219v)
- Wifi Card
- Intel® Dual Band Wireless-AC 3168
- Graphics
- Intel® UHD Graphics 620
- Audio
- Realtek ALC255
- HDMI Resolution (Max.)
- HDMI 2.0 : 4K (3840×2160) @ 60 Hz
- Storage
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
- Expansion Slots
- 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
- Front I/O
- 3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 Type C
1 x Headphone / Mic Jack
1 x Power Button
- Rear I/O
- 2 x HDMI 2.0
2 x USB 3.2 Gen 2
1 x RJ45
1 x DC-In
- Side I/O
- 1 x Kensington lock slot
1 x RS232 COM Port
- Power Supply
- Input: AC 100-240V
Output: DC 19.5V
6.92A
- VESA
- Bracket included
Supports 75 x 75 and 100 x 100 mm
- Support OS
- Windows 10
- Environment
- System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
- Dimension
- 46.8 mm x 119.5 mm x 119.5 mm (1.8" x 4.7" x 4.7")
- Motherboard Size
- 105mm x 112.4mm
- CPU
- 10th Generation Intel® Core™ i5 Processor
i5-10210U 4.2GHz, 4 core (TDP 15W)
- Memory
- 2 x SO-DIMM DDR4 slot
2666MHz
Max. 64GB
- LAN
- Gigabit LAN (Intel i219v)
- Wifi Card
- Intel® Dual Band Wireless-AC 3168
- Graphics
- Intel® UHD Graphics 620
- Audio
- Realtek ALC255
- HDMI Resolution (Max.)
- HDMI 2.0 : 4K (3840×2160) @ 60 Hz
- Storage
- Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
- Expansion Slots
- 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card
- Front I/O
- 3 x USB 3.2 Gen 2
1 x USB 3.2 Gen 2 Type C
1 x Headphone / Mic Jack
1 x Power Button
- Rear I/O
- 2 x HDMI 2.0
2 x USB 3.2 Gen 2
1 x RJ45
1 x DC-In
- Side I/O
- 1 x Kensington lock slot
1 x RS232 COM Port
- Power Supply
- Input: AC 100-240V
Output: DC 19.5V
6.92A
- VESA
- Bracket included
Supports 75 x 75 and 100 x 100 mm
- Support OS
- Windows 10
- Environment
- System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
