GB-BSi3H-6100 (Rev. 1.0)

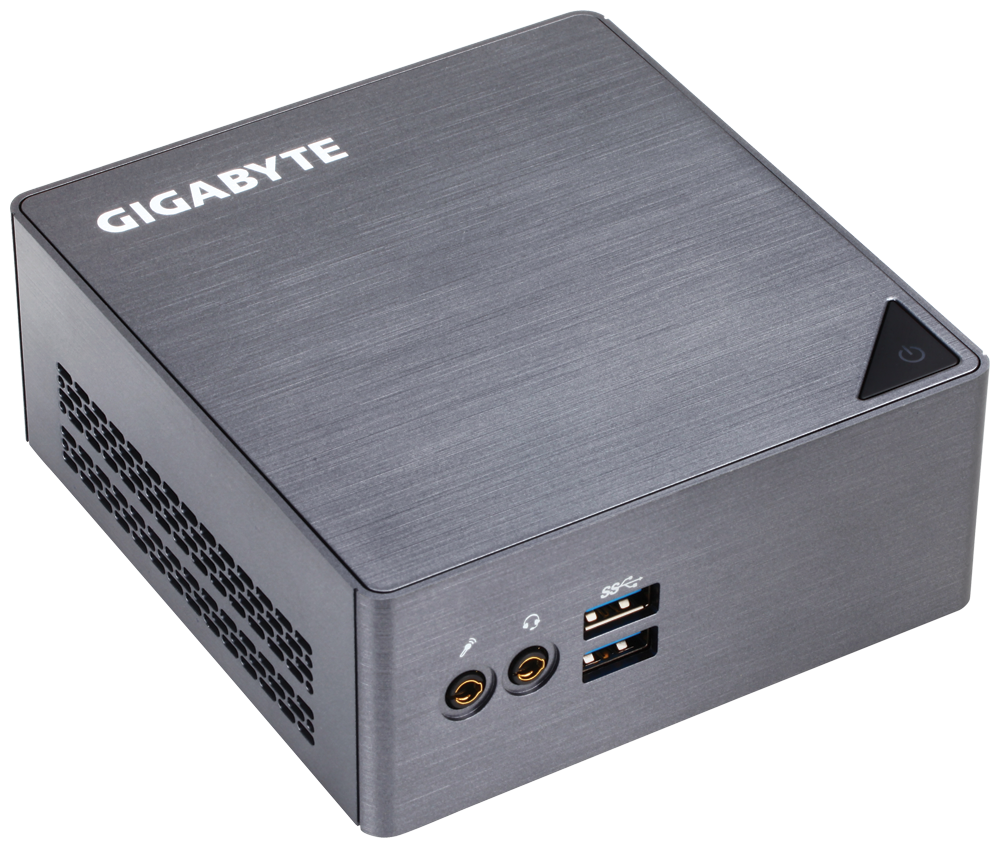

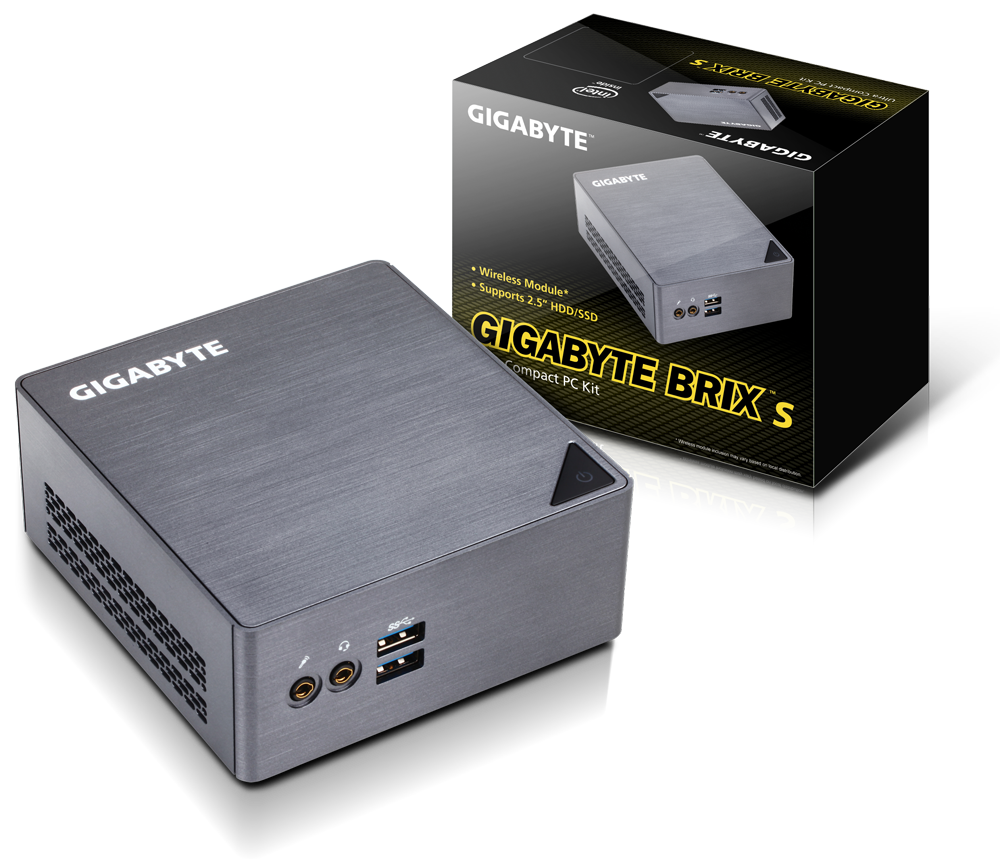

BRIX / Ultra Compact PC kit
1/4
- Features Latest Intel® 6th generation Core Processors
- Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
- Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x M.2 SSD (2280) slot
- 2 x SO-DIMM DDR3L slot (1600MHz)
- Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card

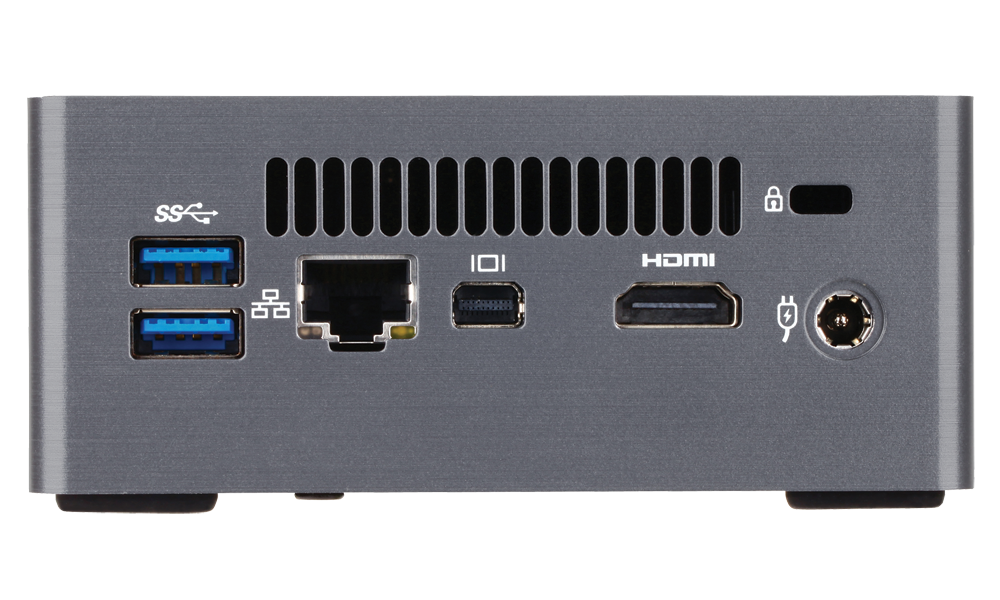

- HDMI plus Mini DisplayPort Outputs (Supports dual displays)
- Intel® HD Graphics 520
- 4 x USB 3.0
- Intel Gigabit lan

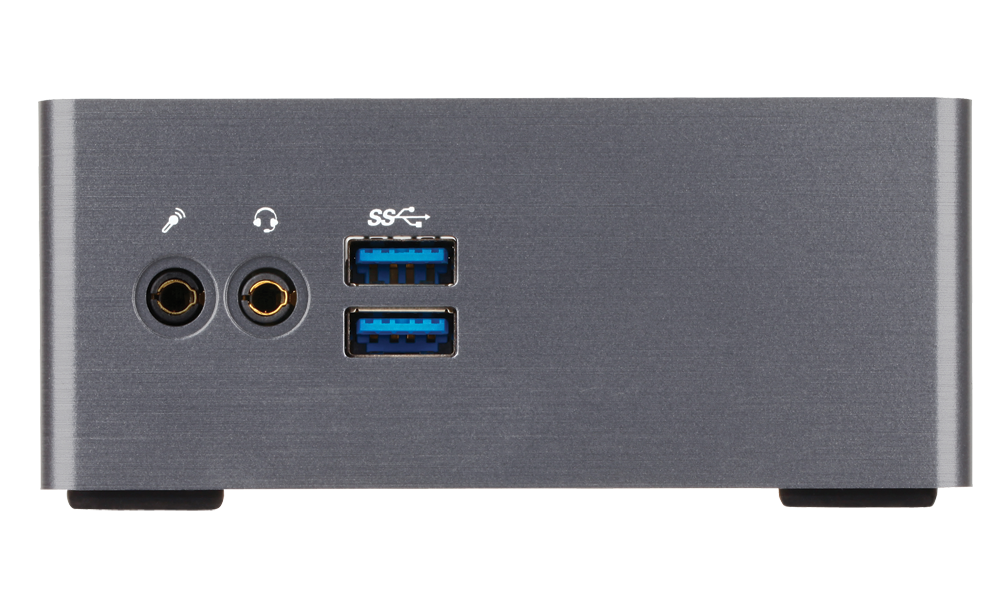

- Headset and Microphone jack
- VESA mounting Bracket (75 x 75mm + 100 x 100mm)
* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.
