GB-BSi7HT-6500 (Rev. 1.0)
BRIX / Ultra Compact PC kit
OverviewSupportNews & AwardsWhere to Buy
1/4
- Features Latest Intel® 6th generation Core Processors
- Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
- Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x M.2 SSD (2280) slot
- 2 x SO-DIMM DDR4 slot (2133 MHz)
- Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
- HDMI plus Mini DisplayPort Outputs (Supports dual displays)
- Intel® HD Graphics 520
- 4 x USB 3.0

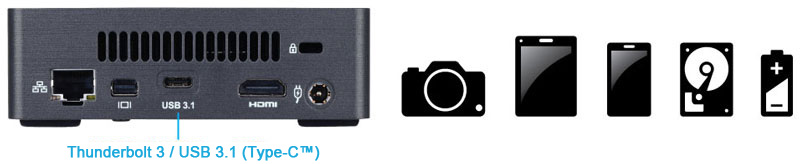

- 1 x Thunderbolt™ 3 port (Type C)
- HDMI 2.0
- Intel Gigabit lan
- Headphone and Microphone Jack
- VESA mounting Bracket (75 x 75mm + 100 x 100mm)
* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.
