* Product may vary based on local distribution.
  • Features Latest Intel® 7th Generation Core i3-7100U Processor
  • Fanless compact design with 0.76L: 180(W) x 117(D) x 36(H) mm, Weight 1.05kg (L6 system)
  • Supports 1 x COM port (RS232/422/485)
  • 2 x USB 3.1 (1 x USB Type-C™), 4 x USB 3.0
  • Supports dual HDMI 2.0 with one HDCP2.2
  • 2 x SO-DIMM DDR4 Slots 2133 MHz, Max 32GB
  • Supports 1 x M.2 SSD (2280) slot, 1 x Micro SD card slot
  • 1 x mini PCIe slot for 3G module and 1 x Micro SIM card slot, optional eMMC
  • Intel® IEEE 802.11ac, Dual Band 1x1 Wi-Fi & Bluetooth 4.2 NGFF M.2 card
  • Dual Intel Gigabit LAN
  • Supports TPM2.0 (optional)
  • VESA mounting bracket (75 x 75mm + 100 x 100mm)




  • The Perfect Fit for IoT Applications
    Being an associate member of the Intel IoT Solutions Alliance, GIGABYTE is at the heart of the booming Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, GIGABYTE BRIX™ IoT is made a perfect fit for various IoT applications.




  • Intel® 7th Generation Core™ Processors
    The new GIGABYTE BRIX™ IoT barebones raise the bar once again with the new Intel® 7th Gen Core™ processor family—delivering more responsive performance than ever before. This 7th Gen Core processor utilizes a power efficient microarchitecture, advanced process technology, and silicon optimizations to deliver faster performance than previous generation processors.


  • Graphics that Captivate
    Intel® HD Graphics deliver 10% more performance than its predecessor. With the new media engine users are able to, watch, create, edit, share and game all with captivating visuals. This media engine offers HEVC 10-bit hardware acceleration which improves upon the 4K viewing and content creation performance significantly versus previous generation processors. The GIGABYTE BRIX™ IoT now has the ability to drive premium content up to 4K UHD, so users can enjoy amazing and vibrant multimedia experiences on compatible displays.


  • Fast USB 3.1 Solution
    The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.



  • Connecting the Future - USB Type-C™: The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed.
  • Rich in Connectivity Options
    GIGABYTE BRIX™ IoT ensures you won’t be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved. GIGABYTE BRIX™ IoT also supports 3G wireless connectivity, bringing an expanded range of mobile communications options to the users.

  • SuperSpeed 4K HD Entertainment
    Supporting the Newest Standards in Multimedia
    GIGABYTE ensures users won’t be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2* users can rest assured that their device will be able to display content to its full potential. The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.

    * One HDMI 2.0 port supports HDCP 2.2.

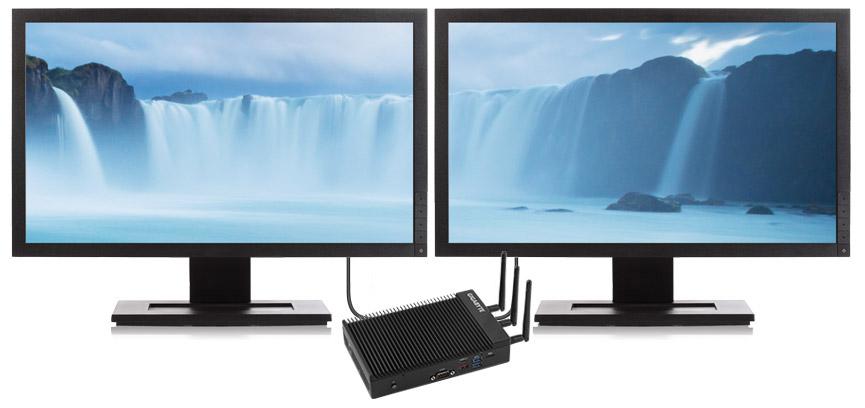

    Dual Display
    With two HDMI outputs, GIGABYTE BRIX™ IoT can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.

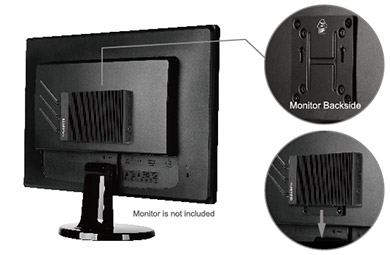

  • VESA Mount Support
    Bundled with a VESA bracket, GIGABYTE BRIX™ IoT can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.



  • Compute Securely with TPM 2.0 Solution

    These days security is on the forefront of everyone's mind. With cyber criminals around the world actively trying to steal your financial and personal information, you need to do everything you can to protect yourself.
    The TPM is a discrete cryptographic processor mounted on the motherboard. The TPM securely stores your cryptographic key which can be created with encryption software such as Windows BitLocker. Without this key, the contents of the user's PC will remain encrypted and safe from unauthorized access.



  • Support RS232 / 422 / 485
    GIGABYTE BRIX™ IoT is equipped with 1 x COM Port to support RS232/422/485.
  • Wide Range Voltage Input
    Offering additional flexibility for system DC voltage input, GIGABYTE BRIX™ IoT products offer a broad voltage range of 12V to 19V, eliminating compatibility issues with many traditional IPC designs.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
