• Supports AMD AthlonTM XP 333MHz FSB processor
  • Support high performance DDR333/266 memory
  • Integrated UniChromeTM graphics engine
  • Integrated high quality 6-channel AC’97 audio
  • Integrated 10/100Mb Ethernet controller
  • Provides 6 USB 2.0 ports for high-speed connectivity
  • Introduction

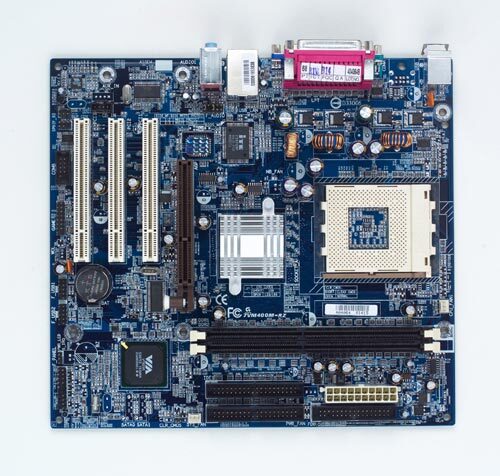

    7VM400M-RZ is new generation all-in-one solution for latest AMD Athlon™ XP processor. Equipped with VIA UniChrome KM400 chipset and plenty of features, 7VM400M-RZ delivers a full-function platform with excellent performance. The VIA UniChrome KM400 chipset integrates the UniChrome™ 2D/3D graphics core with MPEG-2 acceleration for excellent multimedia eformance and complete flexibility on the desktop. The chipset North Bridge exchanges data with the CPU through a flexible and ultra fast Front Side Bus at speeds of up to 333MHz, and features an AGP 8X controller for graphics upgrades. The KM400 also supports a complete range of DDR memory speeds, including DDR200/266/333. In addition, the USB 2.0 and 6-channel audio are equipped to provide a complete solution for mainstream corporate and consumer desktop systems. 7VM400M-RZ will definitely represent the best choice of integrated solution for AMD Athlon™ XP platform now and future.
  • RZ Series Motherboard
    The RZ motherboard series is founded on the motto of Reliability, Real Performance and Right value (Three R’s) and is dedicated to providing users with a complete featured platform at a very competitive and affordable price.
  • DDR333 memory support
    With the optimized DDR333 memory support, this platform provides high bandwidth up to 2.7GB/s and high capacity of 2GB with 2 DIMM slots to ensure greatest memory performance.
  • Norton Internet Security™ Included
    Norton Internet Security™ 2004 is the essential protection from viruses, hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.
  • High quality 6-channel audio support
    Integrated Realtek ALC662 audio CODEC chip, enabling users to experience the seamless high quality 6-channel audio while watching movies or gaming
  • Superb bandwidth AGP 8X graphics interface
    AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
  • Advanced 333 Front-Side Bus Support
    This platform supports the highest CPU frequency and system bandwidth for fully utilizing the intense computing power of latest AMD Athlon™ XP processor and providing enhanced system responsiveness.
  • Ethernet 10/100Mb LAN Network Connection
    The onboard 10/100 Mbps Ethernet LAN connection offers a cost-saving and reliable solution for value-minded users requiring straightforward network connectivity.
  • Great expandability of 6 USB 2.0 ports
    USB 2.0 interface, with data transfer rate up to 480Mbps, is 40 times faster than USB1.1, providing a faster interface for computer peripherals.
