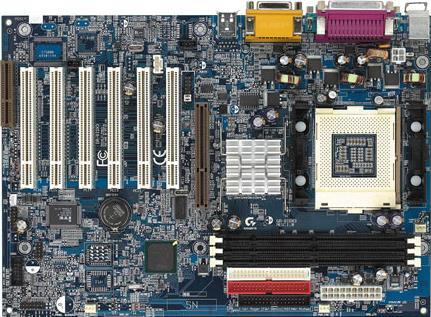

GA-8IDX3 (Rev. 1.x)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. PGA 423 socket for Intel® Pentium® 4 processor
    2. 400MHz FSB (standard) and support multi-FSB setting from BIOS
    3. CPU host frequency (100~200Hz) adjusting from BIOS
    4. Host/DRAM clock ratio setting (1.0, 1.33, auto)
    5. Supports CPU multiplier: 8,9...24 setting from BIOS
    6. (1.1,1.125...1.85 V) 30 scales CPU voltage setting from BIOS
  • Chipset
    1. Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
    2. Realtek ALC 201A codec (AC 97 audio)
    3. ITE I/O chip
  • Memory
    1. 3 x 168-pin DIMM slot
    2. SDRAM over-voltage setting (3.4, 3.5, 3.6V) form BIOS
    3. SDRAM over-clock setting(100~200 Hz based on Host/SDRAM clock ratio) from BIOS
    4. Supports up to 3GB of PC133/PC100 SDR-SDRAM
    5. Supports 64 bits data interface, 3.3V DIMM DRAM and ECC DIMM
  • Expansion Slots
    1. 1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant(voltage adjustable from 1.6V~1.8V from BIOS)
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communication Network Riser) slot
  • I/O Controller
    1. IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable(optional accessory)
    6. IrDA TX / RX header
  • H/W Monitoring
    1. CPU/System fan revolution detect
    2. CPU fan control
    3. System voltage detect
    4. CPU overheat warning
  • BIOS
    1. Supports @BIOS™ and Gigabyte Q-Flash utility
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.5 x 21.4 cm)
  • Driver
    1. Gigabyte Windows Utility Manager; EasyTune III™ and @BIOS™ utility
  • Other Features
    1. Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake up
  • CPU
    1. PGA 423 socket for Intel® Pentium® 4 processor
    2. 400MHz FSB (standard) and support multi-FSB setting from BIOS
    3. CPU host frequency (100~200Hz) adjusting from BIOS
    4. Host/DRAM clock ratio setting (1.0, 1.33, auto)
    5. Supports CPU multiplier: 8,9...24 setting from BIOS
    6. (1.1,1.125...1.85 V) 30 scales CPU voltage setting from BIOS
  • Chipset
    1. Intel® 845 Chipset consists of Intel® Memory Controller Hub (MCH) and the Intel® I/O Controller Hub 2 (ICH2)
    2. Realtek ALC 201A codec (AC 97 audio)
    3. ITE I/O chip
  • Memory
    1. 3 x 168-pin DIMM slot
    2. SDRAM over-voltage setting (3.4, 3.5, 3.6V) form BIOS
    3. SDRAM over-clock setting(100~200 Hz based on Host/SDRAM clock ratio) from BIOS
    4. Supports up to 3GB of PC133/PC100 SDR-SDRAM
    5. Supports 64 bits data interface, 3.3V DIMM DRAM and ECC DIMM
  • Expansion Slots
    1. 1 x AGP 4X slot supports 4X mode & AGP 2.0 compliant(voltage adjustable from 1.6V~1.8V from BIOS)
    2. 6 x PCI slots support 33MHz & PCI 2.2 compliant
    3. 1 x CNR (Communication Network Riser) slot
  • I/O Controller
    1. IDE1 and IDE 2 supports PIO mode 3, 4, UDMA ATA 100/66 IDE devices
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable(optional accessory)
    6. IrDA TX / RX header
  • H/W Monitoring
    1. CPU/System fan revolution detect
    2. CPU fan control
    3. System voltage detect
    4. CPU overheat warning
  • BIOS
    1. Supports @BIOS™ and Gigabyte Q-Flash utility
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Me/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.5 x 21.4 cm)
  • Driver
    1. Gigabyte Windows Utility Manager; EasyTune III™ and @BIOS™ utility
  • Other Features
    1. Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)
    2. Supports Internal / External Modem Ring On
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000/NT/XP shut down & switch
    4. Supports USB device wake up

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
