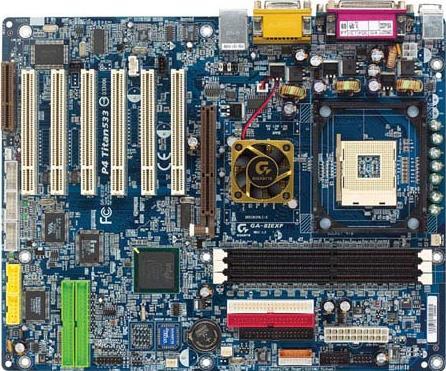

GA-8IEXP (Rev. 1.2)

Rev. 1.2Rev. 2.0
SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® mPGA478 Pentium®4 processor in 478 pin package
    2. 533/400 MHz FSB
  • Chipset
    1. Intel® 845E
    2. Intel® 82801DB ICH4
    3. Intel®PRO/100 VE LAN chip
    4. Promise PDC20276 RAID controller chip
    5. Creative CT5880 E PCI sound controller chip
    6. Super I/O: ITE I/O IT8712F chip
  • Memory
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 3 DIMM slots
  • Expansion Slots
    1. 1 x AGP 4x, supports 1.5v display card only
    2. 6 x PCI (PCI 2.2 compliant)
    3. 1 x CNR
  • I/O Controller
    1. 1 x FDD
    2. 2 x ATA 133/100/66 Bus Master IDE
    3. 2 x UDMA ATA 100/66 Bus Master IDE
    4. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    5. 3 x IEEE 1394 ports (with rear bracket)
    6. Memory Stick / Security Digital (MMC) / Smart Card Reader connectors
    7. S/P DIF output (with rear bracket)
    8. 3 x cooling fan pin headers
    9. CD/AUX in
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and fan speed
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Driver
    1. Creative sound driver
  • Other Features
    1. GIGABYTE patented DualBIOS™
    2. IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable
    3. Suspend to RAM (STR)
    4. Supports USB KB / MS wake up from S3
    5. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® mPGA478 Pentium®4 processor in 478 pin package
    2. 533/400 MHz FSB
  • Chipset
    1. Intel® 845E
    2. Intel® 82801DB ICH4
    3. Intel®PRO/100 VE LAN chip
    4. Promise PDC20276 RAID controller chip
    5. Creative CT5880 E PCI sound controller chip
    6. Super I/O: ITE I/O IT8712F chip
  • Memory
    1. Type: DDR266 (PC 2100) / DDR200(PC1600) 184 pin (2.5v)
    2. Max capacity: Up to 2 GB by 3 DIMM slots
  • Expansion Slots
    1. 1 x AGP 4x, supports 1.5v display card only
    2. 6 x PCI (PCI 2.2 compliant)
    3. 1 x CNR
  • I/O Controller
    1. 1 x FDD
    2. 2 x ATA 133/100/66 Bus Master IDE
    3. 2 x UDMA ATA 100/66 Bus Master IDE
    4. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    5. 3 x IEEE 1394 ports (with rear bracket)
    6. Memory Stick / Security Digital (MMC) / Smart Card Reader connectors
    7. S/P DIF output (with rear bracket)
    8. 3 x cooling fan pin headers
    9. CD/AUX in
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and fan speed
  • Form Factor
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Driver
    1. Creative sound driver
  • Other Features
    1. GIGABYTE patented DualBIOS™
    2. IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable
    3. Suspend to RAM (STR)
    4. Supports USB KB / MS wake up from S3
    5. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ NT/ 2000/ XP shut down and switch

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
