  • Revolution energy saving design with DES technology featuring hardware based Dynamic 4-Gear switching
  • Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 (O.C.) MHz
  • Dual channel DDR2 1200+ for remarkable system performance
  • Ultimate graphics performance with PCI-E x16 2.0 interface
  • Integrated high speed SATA 3Gb/s
  • Features high speed Gigabit Ethernet connection
  • 8 channel High definition audio
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
  • Introduction

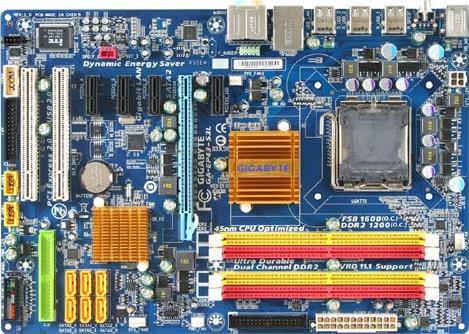

    Based on the new Intel P43 chipset, GA-EP43-S3L delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel® Core™ 2 multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200MHz by overclocking, GA-EP43-S3L motherboard provides the highest levels of performance and stability. GA-EP43-S3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable in CPU VRM, DualBIOS design which provide optimized power savings, ultra cooling and ultra data protection.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Smaller, Faster and More Efficient
    GA-EP43-S3L motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
  • Supports Dual Channel DDR2 1200+
    Experience the advanced technology of DDR2 1200+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR2 1200+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.0 Graphics Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 4-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.
  • Solid Capacitor and Ferrite Core Choke for CPU VRM
    Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors and Ferrite Core Choke for CPU VRM featuring better electronic conductivity, excellent heat resistance, and ensures a longer lifespan for systems in daily operation and boost system stability under extreme conditions.

  • Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
  • EasyTune6
    GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.


  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
