Get Ready to Unleash the Power of AMD 6-Core CPU
GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.

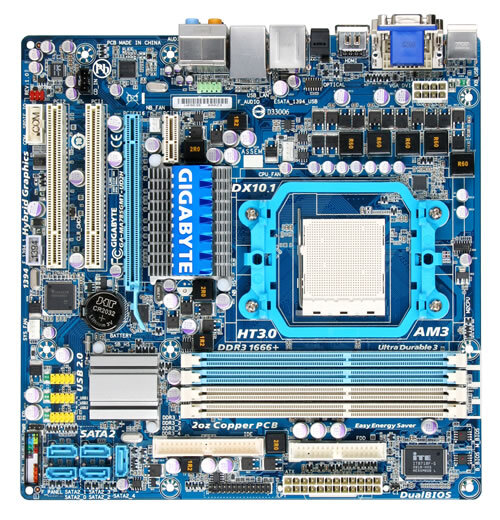

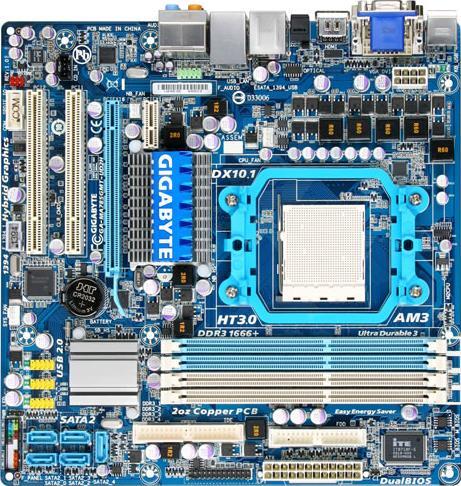

The GA-MA785GMT-UD2H introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 785G chipset, GA-MA785GMT-UD2H is integrated ATI Radeon HD 4200 (DX10.1) graphics engine and supports AMD Phenom™ II quad-core processors, DDR3 memory modules, HyperTransport™ 3.0 technology links, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA785GMT-UD2H is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
Supports next generation of 45nm AMD AM3 CPU
This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
AMD 785G 3D Graphics Performance Upgrade- up to 3DMark 2006 2700 marks!!
The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX® 3D visualization, especially a valuable guideline for gaming users as reference.
3DMark06 2868 marks on 785G system configuration
AMD AthlonII X2 440 (OC), GPU@ 1100MHz (OC), 4GB DDR3-1864(OC), Vista 32, 3DMark06 (1280x1024)
* 2700+ marks in 3DMark06 was achieved by overclocking.
* Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.
ATI Hybrid Graphics Technology support
ATI Hybrid Graphics is a technology umbrella brand encompassing several technologies, such as ATI Hybrid CrossFireX™, ATI SurroundView™, ATI PowerPlay™, etc. that allow both an AMD integrated graphics processor and a discrete graphics processor to work co-operatively on an AMD based system to provide enhanced gaming performance, productivity and platform efficiency to the mainstream PC.
* Please use ATI Hybrid CrossFireX certified DX10.1 VGA card (i.e., ATI Radeon HD 3400-series, etc.), detail information please refer to AMD website.
Ultra Durable 3 – Classic
GIGABYTE Ultra Durable 3 Classic motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
Dual Channel DDR3 1800+ MHz
Delivering native support for DDR3 memory up to 1800MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
DualBIOS™ - Patented Dual Hardware BIOS Protection
DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
- Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
- Designed to automatically deliver the best possible listening experience
HDMI 1.3* certification, support Full HD 1080P
HDMI is able to provide up to 5Gb/s video transmitting bandwidth and multi-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. GIGABYTE motherboard has obtained the latest HDMI 1.3* certification, able to support Full HD 1080p multi-media and HDCP (High-bandwidth Digital Content Protection) which allowing Blu-ray/ HD DVD and other protected contents playback.
* HDMI 1.3 certified in video spec only.
ALC889A Enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.Blu-ray/HD DVD Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience. 7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
Windows® 7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®
, setting the standard for future Windows 7 certified motherboards...more
GIGABYTE innovative technology- Easy Energy Saver
GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
