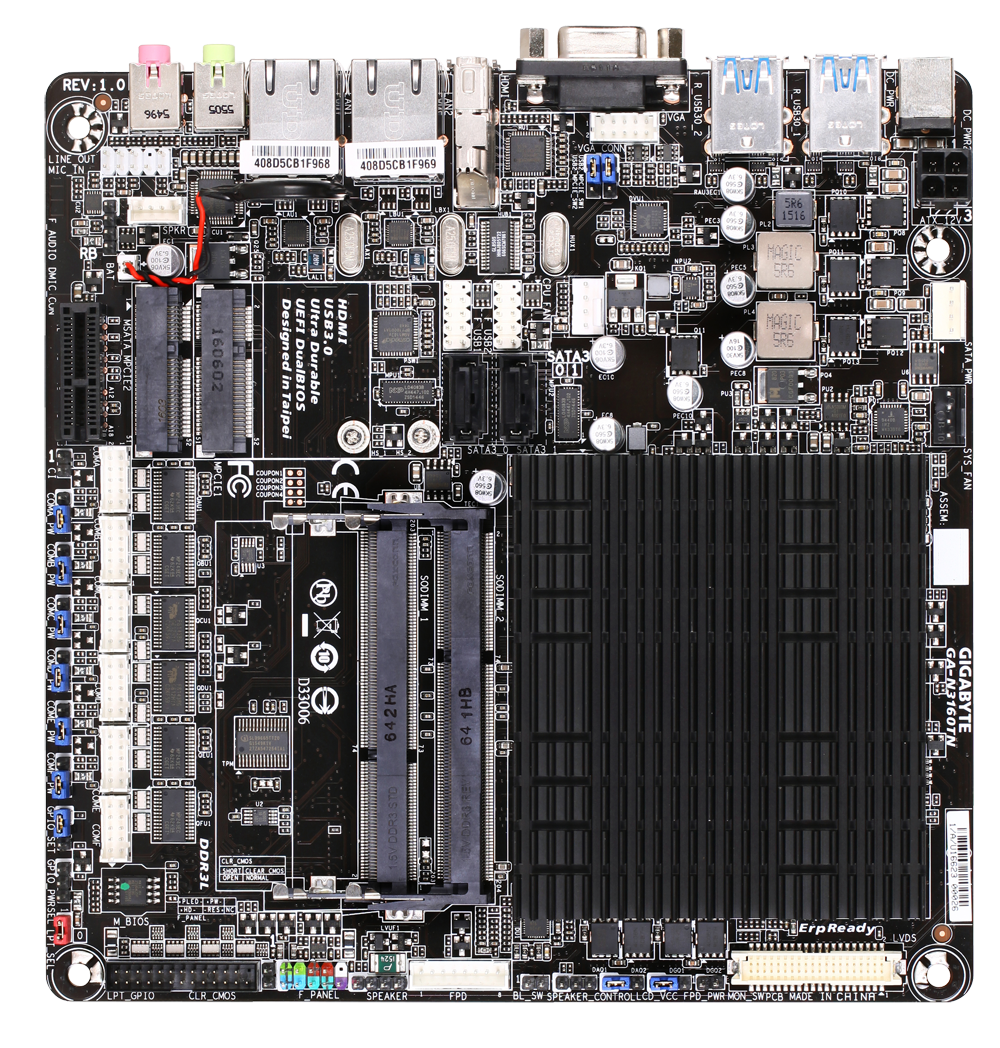

GA-N3160TN (rev. 1.0)
Intel® Celeron™ N3160
- Built-in Intel® Celeron™ N3160 (1.6 GHz) quad-core processor
- GIGABYTE Ultra Durable™ Technology
- Dual channel DDR3L SO-DIMM slot support
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- Dual GbE LAN with WOL/PXE support and high ESD Protection
- 2 x RS232/422/485, 4 x RS232, Digital I/O 8-in/8-out
- Mini-PCIe Slot for Full/ Half-Height WIFI Card Support
- Mini-PCIe Dual Purpose Slot for mSATA SSD Support
- LVDS Header for System Integrated Flat Panel Display Support
- Rear Panel HDMI 1.4 & D-sub connectors for Multi-Display Connection
- Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
- Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
- Compatible with GIGABYTE Thin mini ITX Chassis
GIGABYTE N3160TNThe GIGABYTE N3160TN Thin Mini-ITX motherboard is a fully integrated PC/AIO/IPC motherboard featuring the Intel® Celeron™ N3160 quad-core processor. Designed for compact, small form factor PC/AIO/IPC systems and devices, the GIGABYTE N3160TN is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems.
Intel® Celeron™ N3160 ProcessorThe Intel® Celeron™ N3160 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel® Celeron™ N3160 uses the smallest package of any desktop processor within a low thermal envelope of on 6 watts. The Intel® Celeron™ N3160 boasts excellent performance including DX11.2 gaming on Intel® HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.
HDMI™-The Next Generation Multimedia InterfaceHDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
4K Ultra HD Support4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
GIGABYTE Ultra Durable™GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
Humidity ProtectionHumidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
Power Surge ProtectionGIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
Electrostatic ProtectionGIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
GIGABYTE @BIOSThe new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.
Compatible with GIGABYTE Thin mini ITX Chassis(Part Number: 24EC5-1TM10A-01R)
(Size :204.6 x 205 x 45 mm)Compatible with GIGABYTE Thin mini ITX Chassis-N3160TN
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
