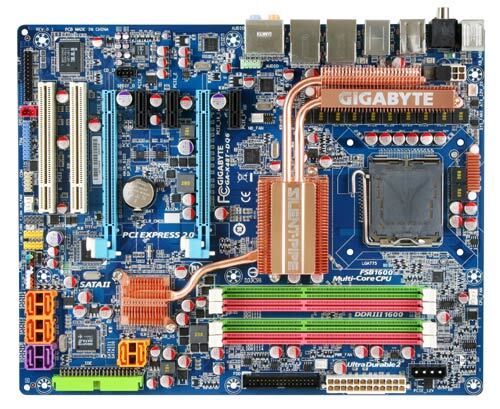

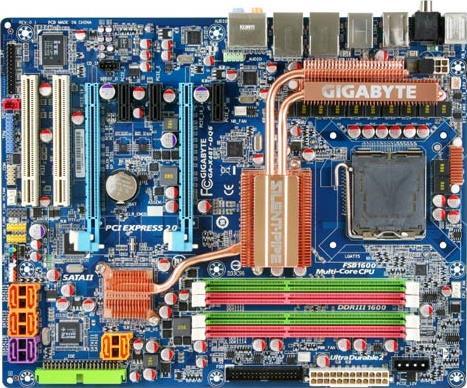

Designed for enthusiasts with extreme over-clocking and blistering gaming performance in mind, the GIGABYTE GA-X48T-DQ6 is based on the killer combination of the newest Intel X48 chipset plus support for the latest multi-core processors up to FSB 1600MHz, including the Intel 45nm processors. The GA-X48T-DQ6 is CrossFireX™ enabled with true dual PCI-E 2.0 x16 connectivity for the ultimate in extreme gaming performance. Built tough to provide maximum stability, durability and performance for even the most hard-core gamers, the GA-X48T-DQ6 delivers several advanced GIGABYTE innovations including the Ultra Durable 2 design, featuring top quality electronic components which provide optimized power savings, ultra cooling and extended system durability.
Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic Multi-Gear Switching. GIGABYTE's DES Advanced allows the motherboard to switch to low gear phase switching during low loading or idle state, allowing for a dramatic increase in power savings.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
Intel® Core™ 2 multi-core and 45nm processors
GA-EP41T-UD3L supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
Intel® X48 Express Chipset
The Intel® X48 Express Chipsets support the latest multi-core processors with FSB 1600MHz, including the upcoming 45nm processors, with its record breaking performance and greater energy efficiency. Intel® X48 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, providing faster boot and application load times and additional power savings. Intel® X48 chipset also offer options for both DDR2 and DDR3 memory support, providing scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization.
Qualified for Windows® 7
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®
, setting the standard for future Windows 7 certified motherboards...more
Smaller, Faster and More Efficient
GA-G41MT-ES2H motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
Dual Channel DDR3 2000
Experience the advanced technology of DDR3 2000 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information
Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
PCI-E 2.0 Graphics Interface
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
SATA 3Gb/s storage interface
SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video.
ALC889A with DTS Connect Enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.Blu-ray Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support Blu-ray formats for an exhilarating home theater entertainment experience.7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
Intel® Matrix Storage Technology
Intel® Matrix Storage Technology, can deliver up to 80% faster storage performance with PCs equipped with two hard drives using RAID 0 data striping. Using RAID 1 data mirroring can protect against a hard drive failure by mirroring all data among two hard drives. In addition RAID 5 offers the fault-tolerant capability to automatically back up your most important files, while also providing faster disk access and adding storage capacity.
2 Gigabit LAN through Teaming
The GA-X48-DS5 with Teaming functionality enabled allows 2 single connections to act as 1 single connection for twice the bandwidth, improving overall throughput with lower CPU utilization.
Prevents network downtime by transferring the workload from a failed port to a working port.
Receive Side Scaling balances the network traffic load evenly between 2 CPU cores in order to improve performance.
Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings. (Note) To enable Teaming or Bonding (IEEE 802.3ad Link Aggregation) feature, it is required the connected network switch or router device supports 802.3.ad LACP function.
Please refer to your network switch or router device manual for further details.
Multi-display support with ATI CrossFireX™
ATI® CrossFireX™ delivers the ultimate graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
Quad BIOS is a feature unique to GIGABYTE that includes DualBIOS™ and Express BIOS Rescue Technology. This combination delivers a safety assurance mechanism that sports a total of 4 copies of BIOS distributed between the Flash ROM, hard-disk and driver CD. This feature helps to reduce the affects of virus attacks or firmware damage and provides multi-layer BIOS protection that assures greater PC platform stability. How does Quad BIOS work?
This revolutionary cooling design combines Crazy Cool and Silent-Pipe technology that includes heat sinks covering MOSFET modules, the north bridge and the south bridge. Additionally, the Crazy Cool enhances heat dissipation of the rear side of CPU and north bridge of the motherboard. Quad Cooling allows users to enjoy longer component lifetime through lower temperatures and absolute silence combined with the ultimate thermal performance on chipsets, CPU power components and the PCB.
Four sets of external SATA ports based on the Serial ATA 3Gb/s storage specification allow effortless sharing and transfer of entertainment content and digital media on external devices. Designed for external SATA devices, Quad eSATA 2 delivers enhanced scalability and double the bus bandwidth for high-speed data retrieval and saving On-The-Go.
Quad Triple Phase
An exclusive feature found only on GIGABYTE motherboards, this unique design incorporates Virtual 12 Power Phases to deliver steadier power and immediate current support for the CPU during heavy work loads or over-clocking. Additionally, Quad-Triple Phase helps to improve component lifespan system stability by delivering lower component temperature.
GIGABYTE has implemented optimized Quad-Core FSB routing and a Quad-Triple phase power design to ensure the highest levels of performance and stability from Quad-Core processors. With 4 cores and 2 shared L2 caches, Quad-Core processors provide the industry's best capability-per-watt solutions, delivering significant performance boosts and extended energy efficiency, making them the ideal choice for multi-media enthusiasts and intensive multi-tasking environments.
Quad DDR3 Slots
Experience the boost in memory performance with new generation DDR3 technology featuring faster speeds and higher data bandwidth for memory intensive applications.
Ultra Durable 2 -Designed with Top Quality Highly Efficient Components
