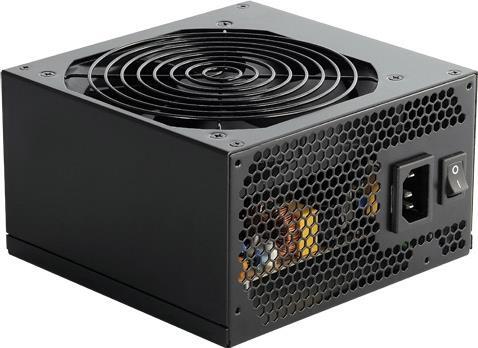

Superb E570

Key FeaturesSpecificationsWhere to Buy

Specifications

  • Model
  • GE-E570A-C3
  • Dimensions
  • 86 x 140 x 150mm
  • Connectors
  • (20+4)-pin Motherboard Connector 1
    (4+4) +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 4
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 1.9 kg
  • Info
  • AC INPUT 100-240Vac 7-3.5A
    FREQUENCY 50-60Hz
    PFC TYPE Active PFC
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    OUTPUT CURRENT 24A 24A 17A 17A 0.5A 2.5A
    123W 34A
    Max Combined Wattage 460W（Peak 570W）
  • Certifications
  • 80Plus, SLI
  • Safety Approval
  • cUL / CSA / TUV / CB / CE / FCC / BSMI / CCC / C-Tick
