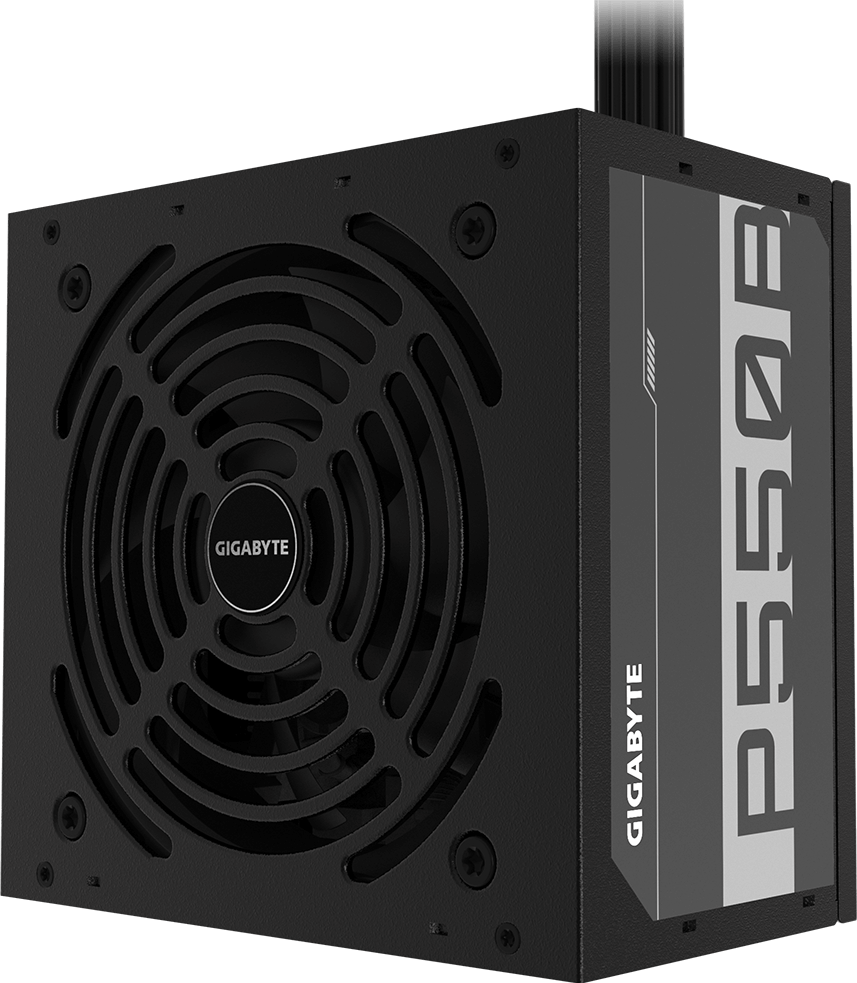

P550B
GP-P550B
Specifications
- Model
- P550B
- Type
- Intel Form Factor ATX 12V v2.31
- PFC
- Active PFC(>0.9 typical)
- Input Voltage
- 100-240 Vac(full range)
- Input Current
- 8-4 A
- Input Frequency
- 60-50 Hz
- Output Capacity
- 550W
- Dimensions
- 150 x 140 x 86 mm
- Fan Type
- 120mm Hydraulic Bearing (HYB) Fan
- 80 PLUS
- Bronze
- Efficiency
- 85% at typical load
- MTBF
- >100,000 hours
- Protections
- OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal
- 100-500ms
- Hold Up Time
- >16ms
- Cable Type
- Flat, All black
- Connectors
- ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
- Model
- P550B
- Type
- Intel Form Factor ATX 12V v2.31
- PFC
- Active PFC(>0.9 typical)
- Input Voltage
- 100-240 Vac(full range)
- Input Current
- 8-4 A
- Input Frequency
- 60-50 Hz
- Output Capacity
- 550W
- Dimensions
- 150 x 140 x 86 mm
- Fan Type
- 120mm Hydraulic Bearing (HYB) Fan
- 80 PLUS
- Bronze
- Efficiency
- 85% at typical load
- MTBF
- >100,000 hours
- Protections
- OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal
- 100-500ms
- Hold Up Time
- >16ms
- Cable Type
- Flat, All black
- Connectors
- ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
