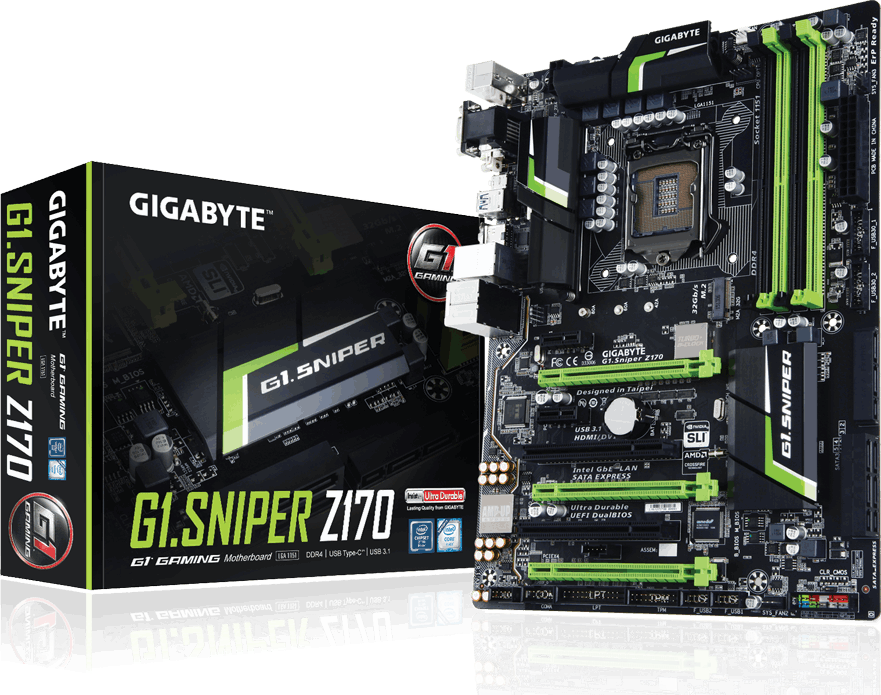

G1.Sniper Z170 (Rev. 1.0)

Intel® Z170 Chipset
ОбзорСпецификацииПоддержкаНовости & НаградыLearn MoreWhere to Buy

Спецификации

  • Процессор
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Чипсет
    1. Intel® Z170 Express Chipset
  • Подсистема памяти
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Графический интерфейс
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Support for up to 3 displays at the same time
    Maximum shared memory of 1024 MB
  • Аудиоподсистема
    1. Realtek® ALC1150 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • Сетевой
    LAN-интерфейс
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
    4. 2 x PCI Express x1 slots
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    5. 2 x PCI slots
  • Масштабируемость видеоподсистемы
    1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
  • Интерфейсы накопителей
  • Chipset:
    1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
    2. 3 x SATA Express connectors
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
  • Интерфейс USB
  • Chipset:
    1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Chipset+ASMedia® ASM1142 chip:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
    2. 1 x USB 3.1 Type-A port (red) on the back panel
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x M.2 Socket 3 connector
    4. 3 x SATA Express connectors
    5. 6 x SATA 6Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x water cooling fan header (CPU_OPT)
    8. 3 x system fan headers
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x S/PDIF Out header
    12. 2 x USB 3.0/2.0 headers
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x Thunderbolt™ add-in card connector
    16. 1 x serial port header
    17. 1 x parallel port header
    18. 1 x Clear CMOS jumper
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x USB Type-C™ port, with USB 3.1 support
    6. 1 x USB 3.1 Type-A port (red)
    7. 3 x USB 3.0/2.0 ports
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • Микросхема
    I/O-контроллера
    1. iTE® I/O Controller Chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System/Chipset temperature detection
    3. CPU/CPU OPT/System fan speed detection
    4. CPU/System/Chipset overheating warning
    5. CPU/CPU OPT/System fan fail warning
    6. CPU/CPU OPT/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • Микросхема BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Фирменные функции и технологии
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      Ambient LED
      AutoGreen
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Smart Switch
    4. Support for Xpress Install
  • ПО в комплекте поставки
    1. Norton® Internet Security (OEM version)
    2. Intel® Smart Response Technology
    3. cFosSpeed
  • Операционная система
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Форм-фактор
    1. ATX Form Factor; 30.5cm x 22.5cm
  • Box Contents
    1. G1.Sniper Z170 motherboard
    2. Four SATA cables
    3. Motherboard driver disk
    4. I/O Shield
    5. User's Manual
    6. One 2-Way SLI bridge connector
    7. Quick Installation Guide
    8. One G Connector
    9. Two Velcro Cable Ties
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

    • Процессор
      1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
        * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Чипсет
      1. Intel® Z170 Express Chipset
    • Подсистема памяти
      1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
      4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Графический интерфейс
    • Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      Support for up to 3 displays at the same time
      Maximum shared memory of 1024 MB
    • Аудиоподсистема
      1. Realtek® ALC1150 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • Сетевой
      LAN-интерфейс
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Разъёмы для плат расширения
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
        * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
      3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. When the PCIEX1_2 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
      4. 2 x PCI Express x1 slots
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
      5. 2 x PCI slots
    • Масштабируемость видеоподсистемы
      1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
      2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
    • Интерфейсы накопителей
    • Chipset:
      1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
      2. 3 x SATA Express connectors
      3. 6 x SATA 6Gb/s connectors
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
    • Интерфейс USB
    • Chipset:
      1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      Chipset+ASMedia® ASM1142 chip:
      1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
      2. 1 x USB 3.1 Type-A port (red) on the back panel
    • Разъемы на системной плате
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x M.2 Socket 3 connector
      4. 3 x SATA Express connectors
      5. 6 x SATA 6Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x water cooling fan header (CPU_OPT)
      8. 3 x system fan headers
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x S/PDIF Out header
      12. 2 x USB 3.0/2.0 headers
      13. 2 x USB 2.0/1.1 headers
      14. 1 x Trusted Platform Module (TPM) header
      15. 1 x Thunderbolt™ add-in card connector
      16. 1 x serial port header
      17. 1 x parallel port header
      18. 1 x Clear CMOS jumper
    • Разъемы на задней панели
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 1 x USB Type-C™ port, with USB 3.1 support
      6. 1 x USB 3.1 Type-A port (red)
      7. 3 x USB 3.0/2.0 ports
      8. 2 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
    • Микросхема
      I/O-контроллера
      1. iTE® I/O Controller Chip
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU/System/Chipset temperature detection
      3. CPU/CPU OPT/System fan speed detection
      4. CPU/System/Chipset overheating warning
      5. CPU/CPU OPT/System fan fail warning
      6. CPU/CPU OPT/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • Микросхема BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Фирменные функции и технологии
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        Ambient LED
        AutoGreen
        Cloud Station
        EasyTune
        Easy RAID
        Fast Boot
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • ПО в комплекте поставки
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Response Technology
      3. cFosSpeed
    • Операционная система
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Форм-фактор
      1. ATX Form Factor; 30.5cm x 22.5cm
    • Box Contents
      1. G1.Sniper Z170 motherboard
      2. Four SATA cables
      3. Motherboard driver disk
      4. I/O Shield
      5. User's Manual
      6. One 2-Way SLI bridge connector
      7. Quick Installation Guide
      8. One G Connector
      9. Two Velcro Cable Ties
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
