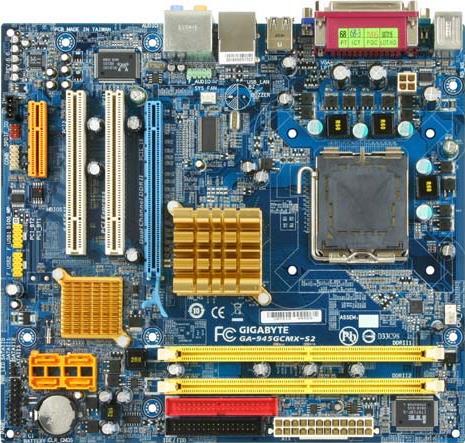

GA-945GCMX-S2 (Rev. 6.6)

Intel 945GC+ ICH7 chipset
ОбзорСпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Supports Intel® Core™ 2 Extreme dual-core / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D processors
    2. Supports 1066/800/533MHz FSB
    * GA-945GCMX-S2 (rev. 6.6) is able to boot with Intel® Core™2 Duo supporting FSB 1333MHz (OC).
  • Чипсет
    1. Northbridge: Intel® 945GC Express Chipset
    2. Southbridge: Intel® ICH7
    3. Realtek 8110SC Gigabit Ethernet controller
    4. Realtek ALC888 audio codec
  • Подсистема памяти
    1. 2 DDR II DIMM memory slots (supports up to 4GB memory)
    2. Supports 1.8V DDR II DIMM
    3. Supports dual channel DDR II 667/533 DIMM
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
  • Разъёмы для плат расширения
    1. 1 PCI Express x 16 slot
    2. 1 PCI Express x 4 slot
    3. 2 PCI slots
  • Разъемы на системной плате
    1. 1 24-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 floppy connector
    4. 1 IDE connector
    5. 4 SATA 3Gb/s connectors
    6. 1 CPU fan connector
    7. 1 system fan connector
    8. 1 front panel connector
    9. 1 front audio connector
    10. 1 CD In connector
    11. 1 SPDIF In/Out connector
    12. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
    13. 1 COMB connector
    14. 1 Chassis Intrusion connector
    15. 1 power LED connector
  • Разъемы на задней панели
    1. 1 PS/2 keyboard port
    2. 1 PS/2 mouse port
    3. 1 parallel port
    4. 1 serial port
    5. 1 VGA port
    6. 4 USB 2.0/1.1 ports
    7. 1 RJ-45 port
    8. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU temperature detection
    3. CPU / System fan speed detection
    4. CPU warning temperature
    5. CPU / System fan failure warning
    6. CPU smart fan control
  • Микросхема BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Форм-фактор
    1. Micro ATX
    2. 22.0 cm x 24.4 cm
  • Other Features
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune Center
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Virtual Dual BIOS (Xpress BIOS Rescue)
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Supports Intel® Core™ 2 Extreme dual-core / Core™ 2 Duo / Pentium® D / Pentium® 4 / Celeron® D processors
      2. Supports 1066/800/533MHz FSB
      * GA-945GCMX-S2 (rev. 6.6) is able to boot with Intel® Core™2 Duo supporting FSB 1333MHz (OC).
    • Чипсет
      1. Northbridge: Intel® 945GC Express Chipset
      2. Southbridge: Intel® ICH7
      3. Realtek 8110SC Gigabit Ethernet controller
      4. Realtek ALC888 audio codec
    • Подсистема памяти
      1. 2 DDR II DIMM memory slots (supports up to 4GB memory)
      2. Supports 1.8V DDR II DIMM
      3. Supports dual channel DDR II 667/533 DIMM
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    • Разъёмы для плат расширения
      1. 1 PCI Express x 16 slot
      2. 1 PCI Express x 4 slot
      3. 2 PCI slots
    • Разъемы на системной плате
      1. 1 24-pin ATX power connector
      2. 1 4-pin ATX 12V power connector
      3. 1 floppy connector
      4. 1 IDE connector
      5. 4 SATA 3Gb/s connectors
      6. 1 CPU fan connector
      7. 1 system fan connector
      8. 1 front panel connector
      9. 1 front audio connector
      10. 1 CD In connector
      11. 1 SPDIF In/Out connector
      12. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
      13. 1 COMB connector
      14. 1 Chassis Intrusion connector
      15. 1 power LED connector
    • Разъемы на задней панели
      1. 1 PS/2 keyboard port
      2. 1 PS/2 mouse port
      3. 1 parallel port
      4. 1 serial port
      5. 1 VGA port
      6. 4 USB 2.0/1.1 ports
      7. 1 RJ-45 port
      8. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU temperature detection
      3. CPU / System fan speed detection
      4. CPU warning temperature
      5. CPU / System fan failure warning
      6. CPU smart fan control
    • Микросхема BIOS
      1. 1 4 Mbit flash ROM
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
    • Форм-фактор
      1. Micro ATX
      2. 22.0 cm x 24.4 cm
    • Other Features
      1. Supports @BIOS
      2. Supports Download Center
      3. Supports Q-Flash
      4. Supports EasyTune Center
      5. Supports Xpress Install
      6. Supports Xpress Recovery2
      7. Supports Virtual Dual BIOS (Xpress BIOS Rescue)
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
