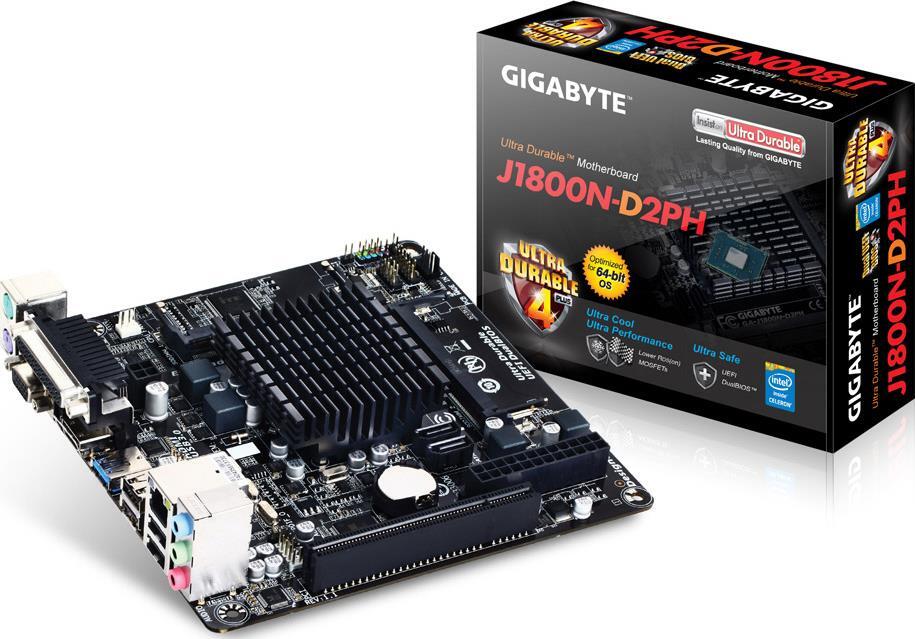

GA-J1800N-D2PH (Rev. 1.1)

Intel® Celeron™ J1800
ОбзорСпецификацииПоддержкаWhere to Buy

Спецификации

  • Процессор
    1. Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
      * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
    2. 1 MB Cache
  • Подсистема памяти
    1. 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
      * If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
    2. Dual channel memory architecture
    3. Support for DDR3/-L 1333 MHz memory modules
    4. Support for non-ECC memory modules
  • Графический интерфейс
  • Integrated in the SoC:
    1. 1 x D-Sub port, supporting a maximum resolution of 2560x1600
    2. 1 x HDMI port, supporting a maximum resolution of 1920x1080
  • Аудиоподсистема
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • Сетевой
    LAN-интерфейс
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI slot
  • Интерфейсы накопителей
  • Integrated in the SoC:
    1. 2 x SATA 3Gb/s connectors
  • Интерфейс USB
  • Integrated in the SoC:
    1. 1 x USB 3.0/2.0 port on the back panel
    ŠŠ 2 x GL850S chips:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x front panel header
    6. 1 x front panel audio header
    7. 2 x SATA 3Gb/s connectors
    8. 2 x USB 2.0/1.1 headers
    9. 1 x serial port header
    10. 1 x S/PDIF Out header
    11. 1 x chassis intrusion header
    12. 1 x Clear CMOS jumper
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x HDMI port
    5. 1 x parallel port
    6. 1 x USB 3.0/2.0 port
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • Микросхема
    I/O-контроллера
    1. iTE® I/O Controller Chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • Микросхема BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Фирменные функции и технологии
    1. Support for Xpress Install
    2. Support for @BIOS
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    4. Support for ON/OFF Charge
  • ПО в комплекте поставки
    1. Norton® Internet Security (OEM version)
    2. Intel® Smart Connect Technology
  • Операционная система
    1. Support for Windows 10/8.1/8
  • Форм-фактор
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
        * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
      2. 1 MB Cache
    • Подсистема памяти
      1. 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
        * If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
      2. Dual channel memory architecture
      3. Support for DDR3/-L 1333 MHz memory modules
      4. Support for non-ECC memory modules
    • Графический интерфейс
    • Integrated in the SoC:
      1. 1 x D-Sub port, supporting a maximum resolution of 2560x1600
      2. 1 x HDMI port, supporting a maximum resolution of 1920x1080
    • Аудиоподсистема
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
    • Сетевой
      LAN-интерфейс
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Разъёмы для плат расширения
      1. 1 x PCI slot
    • Интерфейсы накопителей
    • Integrated in the SoC:
      1. 2 x SATA 3Gb/s connectors
    • Интерфейс USB
    • Integrated in the SoC:
      1. 1 x USB 3.0/2.0 port on the back panel
      ŠŠ 2 x GL850S chips:
      1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Разъемы на системной плате
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 1 x front panel header
      6. 1 x front panel audio header
      7. 2 x SATA 3Gb/s connectors
      8. 2 x USB 2.0/1.1 headers
      9. 1 x serial port header
      10. 1 x S/PDIF Out header
      11. 1 x chassis intrusion header
      12. 1 x Clear CMOS jumper
    • Разъемы на задней панели
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x HDMI port
      5. 1 x parallel port
      6. 1 x USB 3.0/2.0 port
      7. 4 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 3 x audio jacks (Line In, Line Out, Mic In)
    • Микросхема
      I/O-контроллера
      1. iTE® I/O Controller Chip
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • Микросхема BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Фирменные функции и технологии
      1. Support for Xpress Install
      2. Support for @BIOS
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      4. Support for ON/OFF Charge
    • ПО в комплекте поставки
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Connect Technology
    • Операционная система
      1. Support for Windows 10/8.1/8
    • Форм-фактор
      1. Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
