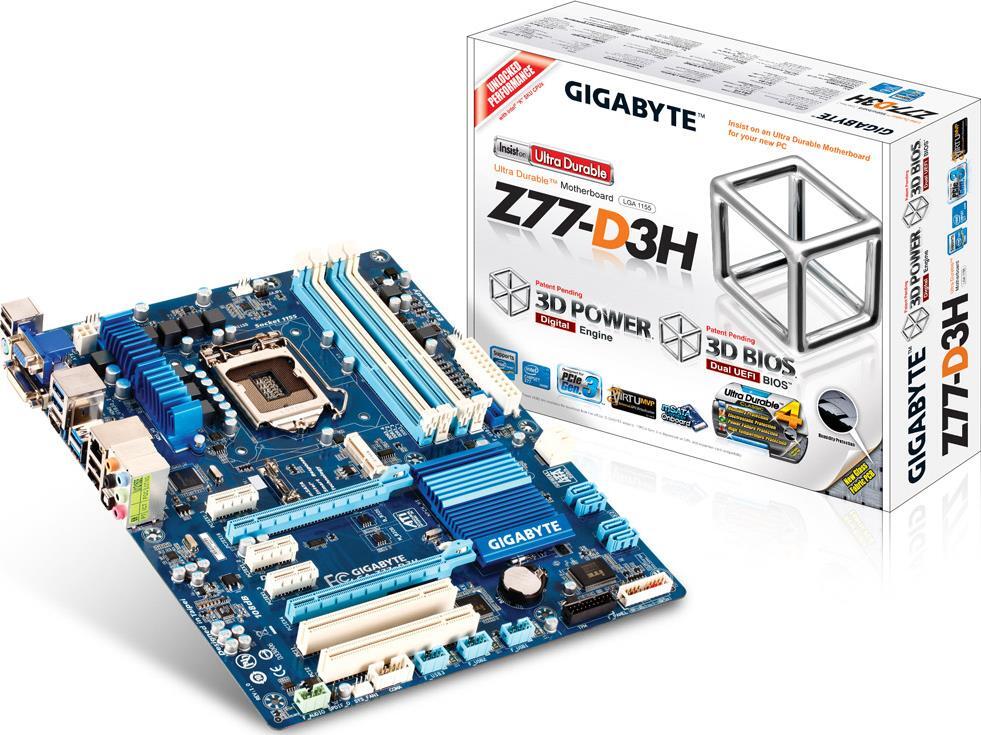

GA-Z77-D3H (Rev. 1.0)

Rev. 1.0Rev. 1.1Rev. 1.2
Intel® Z77 Chipset
ОбзорСпецификацииПоддержкаНовости & НаградыLearn MoreWhere to Buy

Спецификации

  • Процессор
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Чипсет
    1. Intel® Z77 Express Chipset
  • Подсистема памяти
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    2. Dual channel memory architecture
    3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Графический интерфейс
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • Аудиоподсистема
    1. VIA VT2021 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • Сетевой
    LAN-интерфейс
    1. Atheros GbE LAN chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2/3 slots. The PCIEX1_2/3 slots will become unavailable when a PCIe x4 expansion card is installed.
    3. 3 x PCI Express x1 slots
      (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
    4. 2 x PCI slots
  • Масштабируемость видеоподсистемы
    1. Support for AMD CrossFireX™ technology
  • Интерфейсы накопителей
  • Chipset:
    1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
    2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
    3. 1 x mSATA connector
      * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • Интерфейс USB
  • Chipset:
    1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
      * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
    2. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
    Etron EJ168 chips:
    1. Up to 2 USB 3.0/2.0 ports on the back panel
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 6Gb/s connectors
    4. 4 x SATA 3Gb/s connectors
    5. 1 x mSATA connector
    6. 1 x CPU fan header
    7. 3 x system fan headers
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF Out header
    11. 1 x USB 3.0/2.0 header
    12. 3 x USB 2.0/1.1 headers
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper
    15. 1 x Trusted Platform Module (TPM) header
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 4 x USB 3.0/2.0 ports
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
  • Микросхема
    I/O-контроллера
    1. iTE I/O Controller Chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • Микросхема BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Фирменные функции и технологии
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for Xpress Recovery2
    5. Support for eXtreme Hard Drive (X.H.D)
    6. Support for Auto Green
    7. Support for ON/OFF Charge
    8. Support for Q-Share
    9. Support for 3D Power
    10. Support for LAN Optimizer (Intelligent optimization network management tool)
  • ПО в комплекте поставки
    1. Norton Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
    5. LucidLogix Virtu MVP
      * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
  • Операционная система
    1. Support for Microsoft® Windows 8/7/XP
  • Форм-фактор
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Чипсет
      1. Intel® Z77 Express Chipset
    • Подсистема памяти
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      2. Dual channel memory architecture
      3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Графический интерфейс
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    • Аудиоподсистема
      1. VIA VT2021 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • Сетевой
      LAN-интерфейс
      1. Atheros GbE LAN chip (10/100/1000 Mbit)
    • Разъёмы для плат расширения
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with the PCIEX1_2/3 slots. The PCIEX1_2/3 slots will become unavailable when a PCIe x4 expansion card is installed.
      3. 3 x PCI Express x1 slots
        (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
      4. 2 x PCI slots
    • Масштабируемость видеоподсистемы
      1. Support for AMD CrossFireX™ technology
    • Интерфейсы накопителей
    • Chipset:
      1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
      2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
      3. 1 x mSATA connector
        * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
      4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
    • Интерфейс USB
    • Chipset:
      1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
        * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
      2. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
      Etron EJ168 chips:
      1. Up to 2 USB 3.0/2.0 ports on the back panel
    • Разъемы на системной плате
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 2 x SATA 6Gb/s connectors
      4. 4 x SATA 3Gb/s connectors
      5. 1 x mSATA connector
      6. 1 x CPU fan header
      7. 3 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x S/PDIF Out header
      11. 1 x USB 3.0/2.0 header
      12. 3 x USB 2.0/1.1 headers
      13. 1 x serial port header
      14. 1 x Clear CMOS jumper
      15. 1 x Trusted Platform Module (TPM) header
    • Разъемы на задней панели
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 4 x USB 3.0/2.0 ports
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 1 x optical S/PDIF Out connector
      9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
    • Микросхема
      I/O-контроллера
      1. iTE I/O Controller Chip
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • Микросхема BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Фирменные функции и технологии
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Install
      4. Support for Xpress Recovery2
      5. Support for eXtreme Hard Drive (X.H.D)
      6. Support for Auto Green
      7. Support for ON/OFF Charge
      8. Support for Q-Share
      9. Support for 3D Power
      10. Support for LAN Optimizer (Intelligent optimization network management tool)
    • ПО в комплекте поставки
      1. Norton Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Smart Response Technology
      5. LucidLogix Virtu MVP
        * Make sure the monitor cable has been connected to the integrated graphics port on the back panel.
    • Операционная система
      1. Support for Microsoft® Windows 8/7/XP
    • Форм-фактор
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
