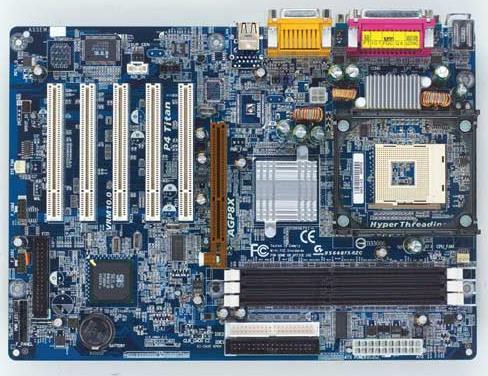

8S648FX-RZC (Rev. 1.0)

OverzichtSpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 800/533/400 MHz FSB
  • Chipset
    1. North-bridge: SiS648FX
    2. South-bridge: SiS963L MuTIOL® Media I/O
    3. CMedia 9761A Codec chip
  • Memory
    1. Type:DDR400/ DDR333/ DDR266
    2. Max capacity: 3GB
    3. DIMM slots:3
  • Expansion Slots
    1. 1 x AGP 8x/4x slot
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 2 x USB 2.0/1.1 connectors (4 ports by cable)
    2. S/P DIF output connector (by optional cable)
    3. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    4. 1 x FDD port
    5. CD/AUX in
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x LPT port
    3. 2 x COM ports
    4. 3 x Audio ports(Line-in /Line-out / Mic)
    5. 1 x GAME/ Midi port
    6. 2 x PS/2 ports(Keyboard/Mouse)
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, power-in voltage,CPU voltage, and fan speed
  • BIOS
    1. 2M bit flash ROM
  • Bundle Software
    1. Norton Internet Security
      1. Norton Anti-Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 29.5 x 20.9 cm
  • Other Features
    1. Xpress Install
    2. EasyTuneTM4
    3. @BIOS
    4. Q-FlashTM
  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 800/533/400 MHz FSB
  • Chipset
    1. North-bridge: SiS648FX
    2. South-bridge: SiS963L MuTIOL® Media I/O
    3. CMedia 9761A Codec chip
  • Memory
    1. Type:DDR400/ DDR333/ DDR266
    2. Max capacity: 3GB
    3. DIMM slots:3
  • Expansion Slots
    1. 1 x AGP 8x/4x slot
    2. 5 x PCI slots (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 2 x USB 2.0/1.1 connectors (4 ports by cable)
    2. S/P DIF output connector (by optional cable)
    3. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    4. 1 x FDD port
    5. CD/AUX in
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x LPT port
    3. 2 x COM ports
    4. 3 x Audio ports(Line-in /Line-out / Mic)
    5. 1 x GAME/ Midi port
    6. 2 x PS/2 ports(Keyboard/Mouse)
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, power-in voltage,CPU voltage, and fan speed
  • BIOS
    1. 2M bit flash ROM
  • Bundle Software
    1. Norton Internet Security
      1. Norton Anti-Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Norton™ Spam Alert
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
  • Form Factor
    1. ATX
    2. 29.5 x 20.9 cm
  • Other Features
    1. Xpress Install
    2. EasyTuneTM4
    3. @BIOS
    4. Q-FlashTM
