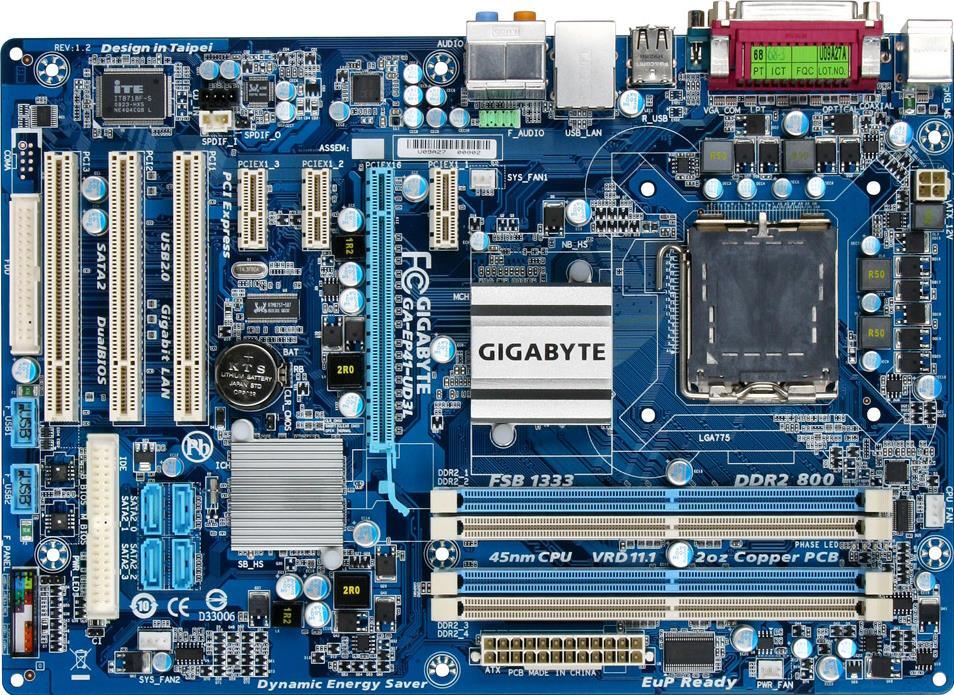

GA-EP41-UD3L (Rev. 1.2)

Rev. 1.2Rev. 1.0Rev. 3.3Rev. 1.3
Intel® G41 + ICH7 Chipset
OverzichtSpecificatiesSupportNieuws&AwardsWhere to Buy

Specificaties

  • CPU
    1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
    2. L2 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Front Side Bus
    1. 1333/1066/800 MHz FSB
  • Chipset
    1. North Bridge: Intel® G41 Express Chipset
    2. South Bridge: Intel® ICH7
  • Memory
    1. 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture (Note 2)
    3. Support for DDR2 800/667 MHz memory modules
    * Because of Intel chipset limitation, please use single-side memory module if four memory modules are to be installed.
    * Please refer "Memory Support List" for more information.
  • Audio
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. RTL8111D chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 3 x PCI Express x1 slots
    3. 3 x PCI slots
  • Storage Interface
  • South Bridge:
    1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
    1. Integrated in the South Bridge
    2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 4 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x power LED header
    16. 1 x chassis intrusion header
    17. 1 x clearing CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x parallel port
    4. 1 x coaxial S/PDIF Out connector
    5. 1 x optical S/PDIF Out connector
    6. 1 x serial port
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
  • I/O Controller
    1. iTE IT8718 chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Unique Features
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Dynamic Energy Saver Advanced
    9. Support for Time Repair
    10. Support for Q-Share
  • Bundle Software
    1. Norton Internet Security (OEM version)
  • Operating System
    1. Support for Microsoft® Windows® 7/Vista/XP
  • Form Factor
    1. ATX Form Factor; 30.5cm x 21.0cm
  • Note
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

    (Note 2) Because of chipset limitations, to avoid the system being unable to start or the memory being incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets. (Please refer "Memory Support List" for more information.)

    (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron® processor in the LGA775 package
      2. L2 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Front Side Bus
      1. 1333/1066/800 MHz FSB
    • Chipset
      1. North Bridge: Intel® G41 Express Chipset
      2. South Bridge: Intel® ICH7
    • Memory
      1. 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
      2. Dual channel memory architecture (Note 2)
      3. Support for DDR2 800/667 MHz memory modules
      * Because of Intel chipset limitation, please use single-side memory module if four memory modules are to be installed.
      * Please refer "Memory Support List" for more information.
    • Audio
      1. Realtek ALC888 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. RTL8111D chip (10/100/1000 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16
      2. 3 x PCI Express x1 slots
      3. 3 x PCI slots
    • Storage Interface
    • South Bridge:
      1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
      2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
      1. Integrated in the South Bridge
      2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 4 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x power fan header
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x CD In connector
      12. 1 x S/PDIF In header
      13. 1 x S/PDIF Out header
      14. 2 x USB 2.0/1.1 headers
      15. 1 x power LED header
      16. 1 x chassis intrusion header
      17. 1 x clearing CMOS jumper
    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x parallel port
      4. 1 x coaxial S/PDIF Out connector
      5. 1 x optical S/PDIF Out connector
      6. 1 x serial port
      7. 4 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
    • I/O Controller
      1. iTE IT8718 chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU/System fan speed control (Note 3)
    • BIOS
      1. 2 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Unique Features
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune (Note 4)
      8. Support for Dynamic Energy Saver Advanced
      9. Support for Time Repair
      10. Support for Q-Share
    • Bundle Software
      1. Norton Internet Security (OEM version)
    • Operating System
      1. Support for Microsoft® Windows® 7/Vista/XP
    • Form Factor
      1. ATX Form Factor; 30.5cm x 21.0cm
    • Note
    • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

      (Note 2) Because of chipset limitations, to avoid the system being unable to start or the memory being incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets. (Please refer "Memory Support List" for more information.)

      (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

      (Note 4) Available functions in EasyTune may differ by motherboard model.
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
