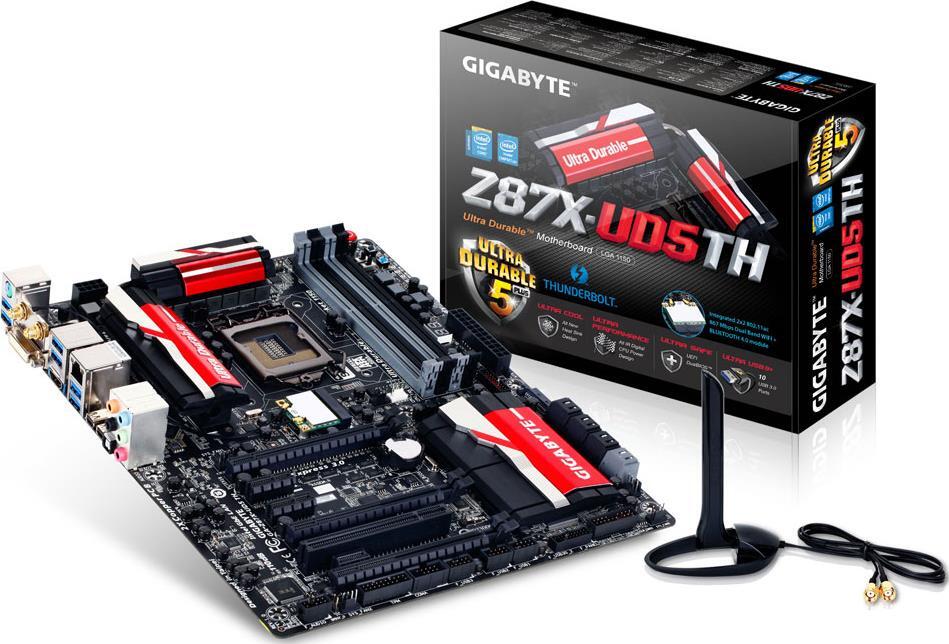

GA-Z87X-UD5 TH (Rev. 1.x)

Intel® Z87 Chipset
OverzichtSpecificatiesSupportNieuws&AwardsMeer informatieWhere to Buy

Specificaties

  • CPU
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z87 Express Chipset
  • Memory
    1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x DVI-I port, supporting a maximum resolution of 1920x1200
    2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
      * Support for HDMI 1.4a version.
    3. Maximum shared memory of 1 GB
    Š Intel® DSL4510 chip:
    1. 2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560x1600.
      * If a monitor is connected to the MDP2 Thunderbolt port , the DVI-I port will become unavailable.
      * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express and PCI devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," and Chapter 2, "Peripherals\Intel(R) Thunderbolt" for more information.)
  • Audio
    1. Realtek® ALC898 codec
    2. Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF In/Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Wireless Communication module
    1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
    3. Support for 11ac wireless standard and up to 867 Mbps data rate.
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.
      * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)
      (The PCI Express x16 slots conform to PCI Express 3.0 standard.)

    4. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

    5. 1 x PCI slot

    6. 1 x mini-PCI Express slot for the wireless communication module
  • Multi-Graphics Technology
    1. Support for 2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ technology
  • Storage Interface
  • Chipset:
    1. 6 x SATA 6Gb/s connectors (SATA3 0~5)
    2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Marvell® 88SE9172 chip:
    1. 2 x SATA 6Gb/s connectors (GSATA3 6~7)
    2. Support for RAID 0 and RAID 1
  • USB
  • Chipset:
    1. 2 x USB 3.0/2.0 ports (available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (available through the internal USB headers)
    Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
    1. 8 x USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
    * Please download & install Win8 USB patch for better compatibility.
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x PCIe power connector
    4. 8 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling fan header (CPU_OPT)
    7. 5 x system fan headers
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF In header
    11. 1 x S/PDIF Out header
    12. 2 x USB 3.0/2.0 headers
    13. 3 x USB 2.0/1.1 headers
    14. 1 x serial port header
    15. 1 x Clear CMOS jumper
    16. 1 x Trusted Platform Module (TPM) header
    17. 1 x power button
    18. 1 x reset button
    19. 1 x Clear CMOS button
    20. 2 x BIOS switches
    21. Voltage measurement points
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-I port
    3. 1 x HDMI port
    4. 2 x antenna connectors
    5. 2 x Thunderbolt ports
    6. 1 x optical S/PDIF Out connector
    7. 6 x USB 3.0/2.0 ports
    8. 1 x RJ-45 port
    9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. System voltage detection
    2. CPU/System/Chipset temperature detection
    3. CPU/CPU OPT/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/CPU OPT/System fan fail warning
    6. CPU/CPU OPT/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for Q-Flash
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      @BIOS
      EasyTune
      EZ Setup
      ON/OFF Charge2
      USB Blocker
      Smart TimeLock
      Smart Recovery 2
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
    5. Intel® Wireless Display
    6. cFosSpeed
  • Operating System
    1. Support for Windows 10/8.1/8/7
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • CPU
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® Z87 Express Chipset
    • Memory
      1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x DVI-I port, supporting a maximum resolution of 1920x1200
      2. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
        * Support for HDMI 1.4a version.
      3. Maximum shared memory of 1 GB
      Š Intel® DSL4510 chip:
      1. 2 Thunderbolt ports (MDP1/MDP2) support for Mini-DisplayPort and Thunderbolt monitor(s), and supporting a maximum resolution of 2560x1600.
        * If a monitor is connected to the MDP2 Thunderbolt port , the DVI-I port will become unavailable.
        * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express and PCI devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," and Chapter 2, "Peripherals\Intel(R) Thunderbolt" for more information.)
    • Audio
      1. Realtek® ALC898 codec
      2. Support for X-Fi Xtreme Fidelity® and EAX® Advanced HD™ 5.0 technologies
      3. High Definition Audio
      4. 2/4/5.1/7.1-channel
      5. Support for S/PDIF In/Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Wireless Communication module
      1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      2. Bluetooth 4.0, 3.0+HS, 2.1+EDR
      3. Support for 11ac wireless standard and up to 867 Mbps data rate.
        * Actual data rate may vary depending on environment and equipment.
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

      2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
        * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

      3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.
        * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)
        (The PCI Express x16 slots conform to PCI Express 3.0 standard.)

      4. 2 x PCI Express x1 slots
        (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

      5. 1 x PCI slot

      6. 1 x mini-PCI Express slot for the wireless communication module
    • Multi-Graphics Technology
      1. Support for 2-Way AMD CrossFire™/2-Way NVIDIA® SLI™ technology
    • Storage Interface
    • Chipset:
      1. 6 x SATA 6Gb/s connectors (SATA3 0~5)
      2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      Marvell® 88SE9172 chip:
      1. 2 x SATA 6Gb/s connectors (GSATA3 6~7)
      2. Support for RAID 0 and RAID 1
    • USB
    • Chipset:
      1. 2 x USB 3.0/2.0 ports (available through the internal USB header)
      2. 6 x USB 2.0/1.1 ports (available through the internal USB headers)
      Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
      1. 8 x USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
      * Please download & install Win8 USB patch for better compatibility.
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x PCIe power connector
      4. 8 x SATA 6Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x water cooling fan header (CPU_OPT)
      7. 5 x system fan headers
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x S/PDIF In header
      11. 1 x S/PDIF Out header
      12. 2 x USB 3.0/2.0 headers
      13. 3 x USB 2.0/1.1 headers
      14. 1 x serial port header
      15. 1 x Clear CMOS jumper
      16. 1 x Trusted Platform Module (TPM) header
      17. 1 x power button
      18. 1 x reset button
      19. 1 x Clear CMOS button
      20. 2 x BIOS switches
      21. Voltage measurement points
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x DVI-I port
      3. 1 x HDMI port
      4. 2 x antenna connectors
      5. 2 x Thunderbolt ports
      6. 1 x optical S/PDIF Out connector
      7. 6 x USB 3.0/2.0 ports
      8. 1 x RJ-45 port
      9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. System voltage detection
      2. CPU/System/Chipset temperature detection
      3. CPU/CPU OPT/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/CPU OPT/System fan fail warning
      6. CPU/CPU OPT/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        @BIOS
        EasyTune
        EZ Setup
        ON/OFF Charge2
        USB Blocker
        Smart TimeLock
        Smart Recovery 2
    • Bundle Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Smart Response Technology
      5. Intel® Wireless Display
      6. cFosSpeed
    • Operating System
      1. Support for Windows 10/8.1/8/7
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Remark
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * De termen HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress en de HDMI logo's zijn handelsmerken of gedeponeerde handelsmerken van HDMI Licensing Administrator, Inc.
      * Alle materialen zijn alleen voor uw referenctie. GIGABYTE behoudt zich het recht om zonder aankondiging de inhoud te wijzigen of te herzien.
      * Alle handelsmerken en logo's zijn eigendom van hun respectieve houders.
      * Door de standaard PC-architectuur, wordt een bepaalde hoeveelheid geheugen gereserveerd voor gebruik van het systeem en dus is de werkelijke geheugengrootte kleiner dan de aangegeven hoeveelheid.
