A1P0-EA0

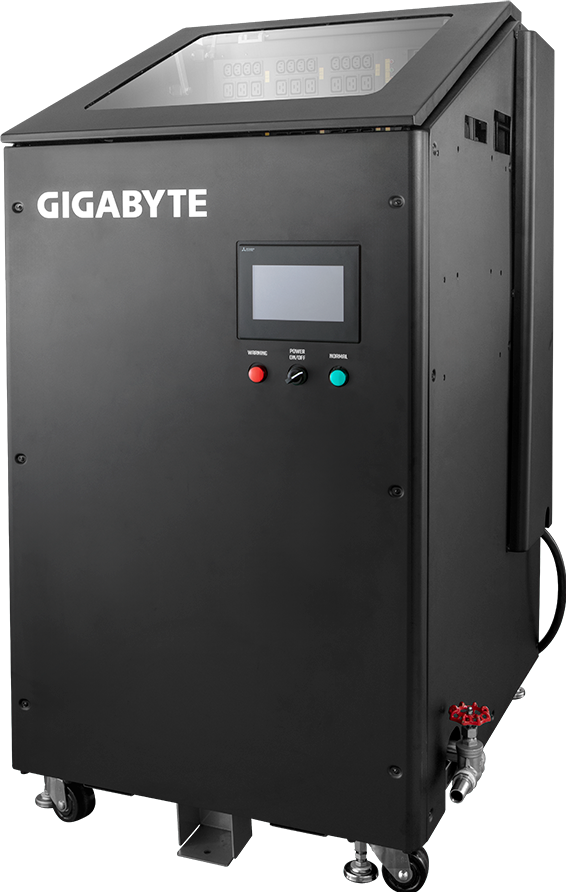

12U EIA Tank
- Supports up to 12U EIA servers
- Minimum PUE reaching 1.02
- Up to 40kW of heat dissipation capacity
- Supports server length up to 900 mm
Specifications
Hardware Capacity
12U
Heat Dissipation Capacity
40 kW with 20℃ inlet water
Dimensions (L x W x H)
Tank (1.2m x 0.87m x 1.56m)
Tank + Switch (1.2m x 0.93m x 1.56m)
Tank + Switch (1.2m x 0.93m x 1.56m)
Weight
Tank: 300 kg (w/o coolant)
CDU Power Consumption
0.6 kW
Coolant Volume
400 L
Electrical Connection
PDU: IEC 60309 32A-3P+N+E, 6H, Plug x2
Footprint
1.1m x 0.86m
Server Depth Supported
900mm
Cooling Water Inlet
20-35°C
Water Flow Rate
100 LPM
PUE
1.02
Ordering Information
Tank: 9NA1P0EA0MR-000-001*
IT Lift: 25FT3-000000-T0R
IT Dry Rack: 25FT5-000000-U0R
Drain Oil Pump: 25FT4-000000-K0R
IT Lift: 25FT3-000000-T0R
IT Dry Rack: 25FT5-000000-U0R
Drain Oil Pump: 25FT4-000000-K0R
