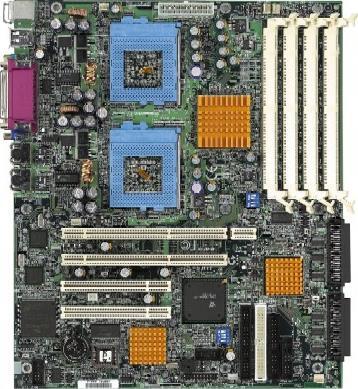

GA-6ETXDRLegacy | Software updates supported
- Dual Intel® Pentium III Tualatin processor (Socket 370 / 133MHz FSB / up to 1.4 GHz )
- ServerWorks® ServerSet™ III LE, OSB4
- Max. 4GB Registered (ECC) PC-133 SDRAM Memory in 4 Angle DIMM Slots
- LSI® 53C1010-66 Dual Ultra 160 SCSI Channels
- Dual Intel® 82559 10/100 Mps Fast Ethernet with Advanced Software Function
- 2 x PCI 64-Bit/66Mhz and 2x PCI 32-Bit/33 Mhz Slots
- ATX 12" W x 9.6" D Form factor, Standard ATX Power
Specifications
CPU
- Dual Intel® Pentium Ⅲ Tualatin Processors up to 1.4 GHz
- Socket 370/133Mhz FSB
Chipset
- ServerWorks® ServerSet™ III LE chipset
- North Bridge：CNB30LE
- South Bridge：OSB4
LAN
- Dual Intel® 82559 10/100 Mbps Ethernet LAN controllers onboard
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- Wake On LAN（WOL）
Video
- ATI Rage XL with 8 MB memory
IDE / SCSI
- LSI® 53C1010-66
- Dual 160 SCSI channels
Expansion Slots
- 2 x PCI 64/66MHz
- 2 x PCI 32/33MHz
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 x LPT
- 2 x LAN RJ45
