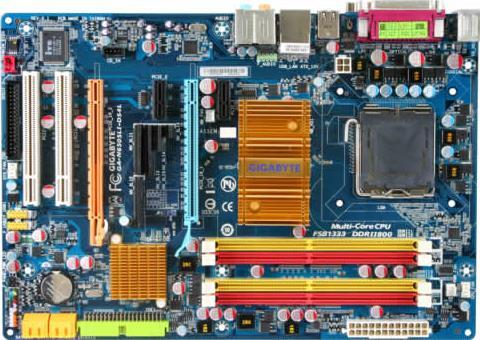

GA-N650SLI-DS4L (Rev. 1.0)

NVIDIA® nForce 650i SLI chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. LGA775
    2. Support Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® D/Pentium® 4 Processor
    3. Supports 1333/1066/800 MHz FSB
  • Chipset
    1. NVIDIA® nForce 650i SLI (Northbridge: C55, Southbridge: MCP51)
    2. Realtek 8211B chip (10/100/1000 Mbit)
    3. Onboard Realtek ALC888 chip
  • Memoria
    1. 4 DDRII DIMM memory slots (supports up to 8 GB memory)(Note 1)
    2. Supports dual channel DDRII 800/667/533 unbuffered DIMMs
    3. Supports 1.8V DDRII DIMMs
    (Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4 GB of physical memory is installed, the actual memory available for the operating system will be less than 4 GB; Windows 64-bit operating system doesn't have such limitation.
  • Puertos de Expansión
    1. 2 PCI Express x16 slots (Note 2)
    2. 2 PCI Express x1 slots
    3. 2 PCI slots
    (Note 2) In SLI Mode, the two PCIE x16 slots can run at up to x8 respectively. In Normal Mode, only the first PCIE x 16 slot (PCIE_16_1) is available and can run at up to x16.
  • Conectores Internos de E/S
    1. 1 24-pin ATX power connector
    2. 1 4-pin ATX 12V power connector
    3. 1 floppy connector
    4. 1 IDE connectors
    5. 4 SATA 3Gb/s connectors
    6. 1 CPU fan connector
    7. 1 system fan connector
    8. 1 North Bridge fan connector
    9. 1 power fan connector
    10. 1 front panel connector
    11. 1 front audio connector
    12. 1 CD In connector
    13. 1 S/PDIF In/Out connector
    14. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
    15. 1 power LED connector
    16. 1 Chassis Intrusion connector
  • Conectores del Panel Trasero
    1. 1 PS/2 keyboard port
    2. 1 PS/2 mouse port
    3. 1 S/PDIF Out connection (coaxial+optical)
    4. 1 parallel port
    5. 1 serial port
    6. 4 USB 2.0/1.1 ports
    7. 1 RJ-45 port
    8. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
  • Monitorización H/W
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU warning temperature
    5. CPU/System/Power fan failure warning
    6. CPU/System Smart Fan Control
  • BIOS
    1. 1 4 Mbit flash ROM
    2. Use of licensed AWARD BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
  • Diseño
    1. ATX
    2. 30.5cm x 21.0cm
  • Otras Características
    1. Supports @BIOS
    2. Supports Download Center
    3. Supports Q-Flash
    4. Supports EasyTune (Note 3)
    5. Supports Xpress Install
    6. Supports Xpress Recovery2
    7. Supports Virtual Dual BIOS
    * (Note 3) EasyTune functions may vary depending on different motherboards.
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. LGA775
      2. Support Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® D/Pentium® 4 Processor
      3. Supports 1333/1066/800 MHz FSB
    • Chipset
      1. NVIDIA® nForce 650i SLI (Northbridge: C55, Southbridge: MCP51)
      2. Realtek 8211B chip (10/100/1000 Mbit)
      3. Onboard Realtek ALC888 chip
    • Memoria
      1. 4 DDRII DIMM memory slots (supports up to 8 GB memory)(Note 1)
      2. Supports dual channel DDRII 800/667/533 unbuffered DIMMs
      3. Supports 1.8V DDRII DIMMs
      (Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4 GB of physical memory is installed, the actual memory available for the operating system will be less than 4 GB; Windows 64-bit operating system doesn't have such limitation.
    • Puertos de Expansión
      1. 2 PCI Express x16 slots (Note 2)
      2. 2 PCI Express x1 slots
      3. 2 PCI slots
      (Note 2) In SLI Mode, the two PCIE x16 slots can run at up to x8 respectively. In Normal Mode, only the first PCIE x 16 slot (PCIE_16_1) is available and can run at up to x16.
    • Conectores Internos de E/S
      1. 1 24-pin ATX power connector
      2. 1 4-pin ATX 12V power connector
      3. 1 floppy connector
      4. 1 IDE connectors
      5. 4 SATA 3Gb/s connectors
      6. 1 CPU fan connector
      7. 1 system fan connector
      8. 1 North Bridge fan connector
      9. 1 power fan connector
      10. 1 front panel connector
      11. 1 front audio connector
      12. 1 CD In connector
      13. 1 S/PDIF In/Out connector
      14. 2 USB 2.0/1.1 connectors for additional 4 ports by cables
      15. 1 power LED connector
      16. 1 Chassis Intrusion connector
    • Conectores del Panel Trasero
      1. 1 PS/2 keyboard port
      2. 1 PS/2 mouse port
      3. 1 S/PDIF Out connection (coaxial+optical)
      4. 1 parallel port
      5. 1 serial port
      6. 4 USB 2.0/1.1 ports
      7. 1 RJ-45 port
      8. 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
    • Monitorización H/W
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU warning temperature
      5. CPU/System/Power fan failure warning
      6. CPU/System Smart Fan Control
    • BIOS
      1. 1 4 Mbit flash ROM
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
    • Diseño
      1. ATX
      2. 30.5cm x 21.0cm
    • Otras Características
      1. Supports @BIOS
      2. Supports Download Center
      3. Supports Q-Flash
      4. Supports EasyTune (Note 3)
      5. Supports Xpress Install
      6. Supports Xpress Recovery2
      7. Supports Virtual Dual BIOS
      * (Note 3) EasyTune functions may vary depending on different motherboards.
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
