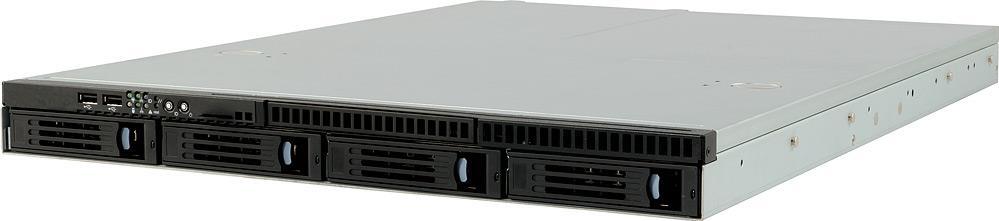

GS-R12P4ELegacy | Software updates supported

Rev. 1.0

Dual Socket 1U Rackmount Server

Intel^® Xeon^® processor E5-2400 & E5-2400 V2 product families
12 x RDIMM/UDIMM ECC DIMM slots
4 x 3.5" hot-swappable HDD bays
2 x SATA III 6Gb/s + 4 x SATA II 3Gb/s

Save

Overview
Specifications
Support
Related Resources

Specifications

Dimensions (WxHxD, mm)

1U
444 x 43.5 x 615

Motherboard

GA-7PESE3

CPU

Supports Intel^® Xeon^® processor E5-2400 & E5-2400 V2 product families

Socket

2 x LGA 1356
2 x CPU heatsinks included

Chipset

Intel^® C602

Memory

12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz

*RDIMM only

LAN

2 x GbE LAN ports (Intel^® I350)
1 x 10/100 management LAN

Video

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

4 x 3.5" hot-swappable HDD/SSD bays

SATA

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

SAS

1 x Mini-SAS (for 4 x SATA II 3Gb/s ports)
1 x Mini-SAS (disabled, can be enabled via Intel^® upgrade key)

RAID

Intel^® SATA RAID 0/1/5/10

Peripheral Drives

1 x Slim type ODD bay

Expansion Slots

2 x Half-length low-profile slots
2 x PCIe x8 (Gen3 x8 bus) connectors

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
1 x System fan header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
2 x Mini-SAS connectors
1 x PMBus connector
1 x Front panel header
1 x Back panel header
1 x SCU key header
1 x IPMI connector
1 x TPM header
1 x USB 2.0 header
1 x Serial header
1 x SPGIO header

Front I/O

2 x USB 2.0
1 x Power button with LED
1 x NMI button
1 x ID button with LED
1 x Reset button
2 x LAN LEDs
1 x System status LED
1 x HDD status LED

Rear I/O

4 x USB 2.0
1 x VGA
1 x Serial
3 x RJ45
1 x ID button with LED

Backplane Board

N/A

TPM

1 x TPM header

Power Supply^[#1]

1 x 500W PSU
80 PLUS Gold
100~220V AC

System Management

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

OS Compatibility

Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)

SUSE Linux Enterprise Server 11.2 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

System Fans

5 x 40x40x28mm (18000rpm)
1 x 40x40x56mm (front: 16000rpm / rear: 15400rpm)

Operating Properties

Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C

Weight

~15.9 kg

Part Numbers

Barebone: 6NR12P4EMS-00
Rail kit: 25HB2-3C6100-K0R

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
