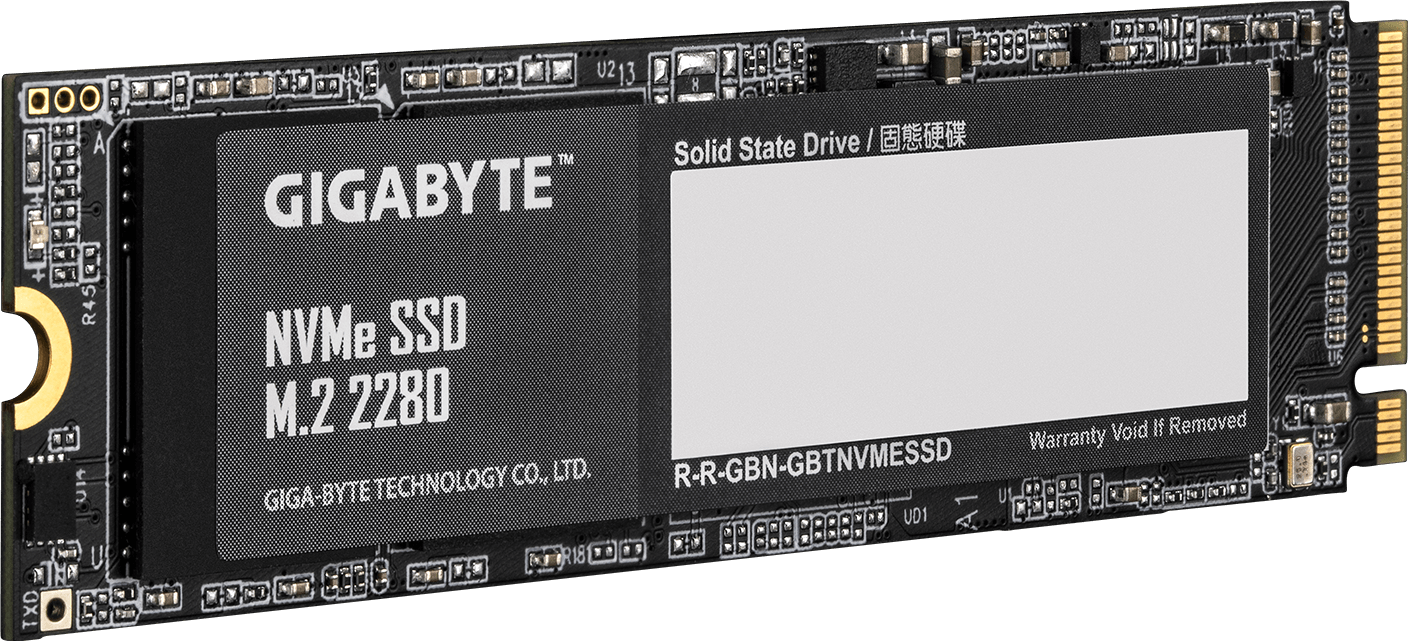

GIGABYTE NVMe SSD 512GB

GP-GSM2NE3512GNTD / G3NVME512G
Key FeaturesSpecificationsSupportGalleryWhere to Buy

Specifications

  • Interface
  • PCI-Express 3.0 x4, NVMe 1.4
  • Form Factor
  • M.2 2280
  • Total Capacity
  • 512GB
  • NAND
  • 3D TLC NAND Flash
  • External DDR Cache
  • N/A
  • Sequential Read speed
  • Up to 1,700 MB/s
  • Sequential Write speed
  • Up to 1,550MB/s
  • Dimension
  • 80 x 22 x 2.3 mm
  • Mean time between failure (MTBF)
  • 1.5 million hours
  • Max. Operating Power
  • Read : 3.3W; Write : 2.8W
  • Power Consumption (Idle, PS3)
  • 35mW
  • Power Consumption(PS4, L1.2)
  • 5mW
  • Temperature (Operating)
  • 0°C to 70°C
  • Temperature (Storage)
  • -40°C to 85°C
  • Warranty
  • 1. Limited 5-years or 800TBW.
    2. Limited warranty based on 5 years or 800TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

    *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.


    3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
  • Note
  • • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
    • Speeds based on internal testing. Actual performance may vary.
    • 1GB = 1 billion bytes. Actual useable capacity may vary.
Interface
Form Factor
Total Capacity
NAND
External DDR Cache
Sequential Read speed
Sequential Write speed
Dimension
Mean time between failure (MTBF)
Max. Operating Power
Power Consumption (Idle, PS3)
Power Consumption(PS4, L1.2)
Temperature (Operating)
Temperature (Storage)
Warranty
Note
PCI-Express 3.0 x4, NVMe 1.4
M.2 2280
512GB
3D TLC NAND Flash
N/A
Up to 1,700 MB/s
Up to 1,550MB/s
80 x 22 x 2.3 mm
1.5 million hours
Read : 3.3W; Write : 2.8W
35mW
5mW
0°C to 70°C
-40°C to 85°C
1. Limited 5-years or 800TBW.
2. Limited warranty based on 5 years or 800TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.


3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
PCI-Express 3.0 x4, NVMe 1.4
M.2 2280
512GB
3D TLC NAND Flash
N/A
Up to 1,900 MB/s
Up to 1,200MB/s
80 x 22 x 2.3 mm
1.5 million hours
Read : 3.2W; Write : 3.2W
35mW
5mW
0°C to 70°C
-40°C to 85°C
1. Limited 3-years or 160TBW.
2. Limited warranty based on 3 years or 160TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.


3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
