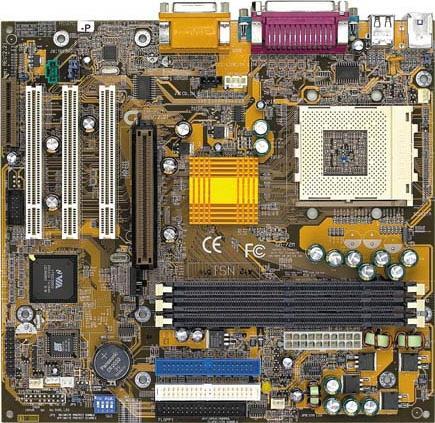

GA-7ZM (Rev. 2.x)

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. AMD™ Athlon™ /Duron™ (K7) Socket A processor (256K/64K 2nd cache on die)
    2. Supports 500MHz ~ 1GHz and faster
    3. 100/110*/115*/120*/124*/133* MHz FSB
      (*Support by over-clocking)
    4. AUTO detect CPU voltage
  • Chipset
    1. VIA VT8363 (KT133) Memory/AGP/PCI Controller(PAC)
    2. VIA VT82C686A PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. VIA 686 audio
  • Memoria
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Zócalos de Expansión
    1. 1 x AMR (Audio Modem Riser) slot (Inversely AMR card)
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 3 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador E/S
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • Monitorización Hardware
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
  • Formato
    1. Micro ATX , 4 layer PCB (24.4*21.0cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. VIA 686 audio driver
  • Other Features
    1. Support Wake-On-LAN (WOL)
    2. Support Internal/External modem ring on
    3. Support USB K/B or mouse wake up from S3
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Support STR (Suspend-To-RAM) function
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch
  • Procesador
    1. AMD™ Athlon™ /Duron™ (K7) Socket A processor (256K/64K 2nd cache on die)
    2. Supports 500MHz ~ 1GHz and faster
    3. 100/110*/115*/120*/124*/133* MHz FSB
      (*Support by over-clocking)
    4. AUTO detect CPU voltage
  • Chipset
    1. VIA VT8363 (KT133) Memory/AGP/PCI Controller(PAC)
    2. VIA VT82C686A PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. VIA 686 audio
  • Memoria
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Zócalos de Expansión
    1. 1 x AMR (Audio Modem Riser) slot (Inversely AMR card)
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 3 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador E/S
    1. 2 x Ultra DMA 33/66 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • Monitorización Hardware
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
    4. CPU overheat shutdown detect
  • BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
  • Formato
    1. Micro ATX , 4 layer PCB (24.4*21.0cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. VIA 686 audio driver
  • Other Features
    1. Support Wake-On-LAN (WOL)
    2. Support Internal/External modem ring on
    3. Support USB K/B or mouse wake up from S3
    4. Includes 3 fan power connectors
    5. Poly fuse for keyboard over-current protection
    6. Support STR (Suspend-To-RAM) function
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000 Shut down & Switch

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
