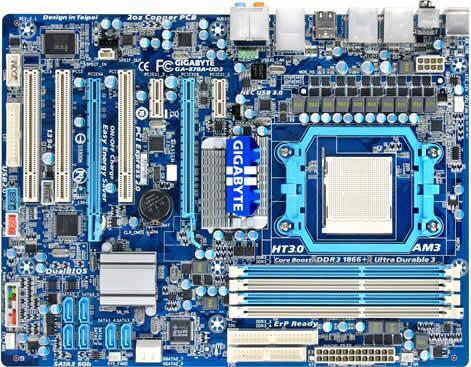

GA-870A-UD3 (Rev. 2.1)

Rev. 2.1Rev. 2.0Rev. 2.2Rev. 3.0Rev. 3.1
AMD 870 + SB850 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor
  • Hyper Transport Bus
    1. 5200 MT/s
  • Chipset
    1. North Bridge: AMD 870
    2. South Bridge: AMD SB850
  • Memoria
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules
  • Audio
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF In/Out
    6. Support for CD In
  • LAN
    1. 1 x Realtek 8111D chip (10/100/1000 Mbit)
  • Zócalos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 2)
    3. 2 x PCI Express x1 slots (The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot.) (Note 2)
      (All PCI Express slots conform to the PCI Express 2.0 standard.)
    4. 3 x PCI slots
  • Interfaz de almacenamiento
  • South Chipset:
    1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10, and JBOD
    * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

    GIGABYTE SATA2 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
    3. Support for SATA RAID 0 and RAID 1 and JBOD
    JMicron JMB362 chip:
    1. 2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices
    2. Support for SATA RAID 0, RAID 1, and JBOD
    iTE IT8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • Chipset:
    1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    NEC chip:
    1. Up to 2 USB 3.0/2.0 ports on the back panel
    * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
  • IEEE 1394
  • T.I. TSB43AB23 chip:
    1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • Conectores Internos E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 6Gb/s connectors
    6. 2 x SATA 3Gb/s connectors
    7. 1 x CPU fan header
    8. 2 x system fan header
    9. 1 x power fan header
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x CD In connector
    13. 1 x S/PDIF In header
    14. 1 x S/PDIF Out header
    15. 1 x IEEE 1394a header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x serial port header
    18. 1 x parallel port header
    19. 1 x clearing CMOS jumper
  • Panel E/S Trasero
    1. 1 x PS/2 keyboard or mouse port
    2. 1 x optical S/PDIF Out connector
    3. 1 x coaxial S/PDIF out connector
    4. 8 x USB 2.0/1.1 ports
    5. 2 x USB 3.0/2.0 ports
    6. 2 x IEEE 1394a port
    7. 2 x eSATA 3Gb/s ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Controlador E/S
    1. ITE IT8720 chip
  • Monitorización Hardware
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Otras Características
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Auto Green
    11. Support for On/Off Charge
    12. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft Windows 7/ Vista/ XP
  • Formato
    1. ATX Form Factor; 30.5cm x 23.0 cm
  • Note
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot. When PCIEX4 slot is populated with a x4 card, the PCIEX1_1 and PCIEX1_2 slots become unavailable.
    (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Observaciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
  • Procesador
    1. Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor
  • Hyper Transport Bus
    1. 5200 MT/s
  • Chipset
    1. North Bridge: AMD 870
    2. South Bridge: AMD SB850
  • Memoria
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2000(OC)/1333/1066 MHz memory modules
  • Audio
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for Dolby Home Theater
    5. Support for S/PDIF In/Out
    6. Support for CD In
  • LAN
    1. 1 x Realtek 8111D chip (10/100/1000 Mbit)
  • Zócalos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 2)
    3. 2 x PCI Express x1 slots (The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot.) (Note 2)
      (All PCI Express slots conform to the PCI Express 2.0 standard.)
    4. 3 x PCI slots
  • Interfaz de almacenamiento
  • South Chipset:
    1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID5, RAID 10, and JBOD
    * SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.

    GIGABYTE SATA2 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
    3. Support for SATA RAID 0 and RAID 1 and JBOD
    JMicron JMB362 chip:
    1. 2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices
    2. Support for SATA RAID 0, RAID 1, and JBOD
    iTE IT8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • Chipset:
    1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    NEC chip:
    1. Up to 2 USB 3.0/2.0 ports on the back panel
    * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
  • IEEE 1394
  • T.I. TSB43AB23 chip:
    1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
  • Conectores Internos E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 6Gb/s connectors
    6. 2 x SATA 3Gb/s connectors
    7. 1 x CPU fan header
    8. 2 x system fan header
    9. 1 x power fan header
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x CD In connector
    13. 1 x S/PDIF In header
    14. 1 x S/PDIF Out header
    15. 1 x IEEE 1394a header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x serial port header
    18. 1 x parallel port header
    19. 1 x clearing CMOS jumper
  • Panel E/S Trasero
    1. 1 x PS/2 keyboard or mouse port
    2. 1 x optical S/PDIF Out connector
    3. 1 x coaxial S/PDIF out connector
    4. 8 x USB 2.0/1.1 ports
    5. 2 x USB 3.0/2.0 ports
    6. 2 x IEEE 1394a port
    7. 2 x eSATA 3Gb/s ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Controlador E/S
    1. ITE IT8720 chip
  • Monitorización Hardware
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control (Note 3)
  • BIOS
    1. 2 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Otras Características
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune (Note 4)
    8. Support for Easy Energy Saver
    9. Support for Smart Recovery
    10. Support for Auto Green
    11. Support for On/Off Charge
    12. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft Windows 7/ Vista/ XP
  • Formato
    1. ATX Form Factor; 30.5cm x 23.0 cm
  • Note
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) The PCIEX1_1 and PCIEX1_2 slots share bandwidth with the PCIEX4 slot. When PCIEX4 slot is populated with a x4 card, the PCIEX1_1 and PCIEX1_2 slots become unavailable.
    (Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    (Note 4) Available functions in EasyTune may differ by motherboard model.
  • Observaciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
