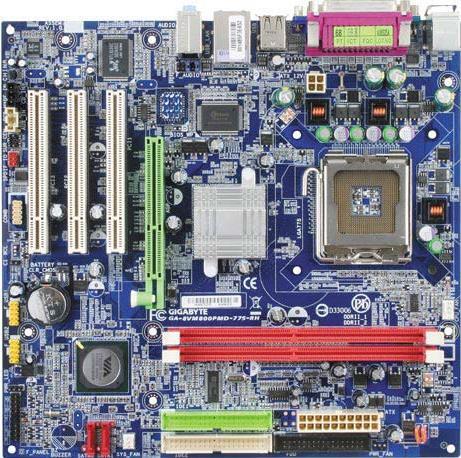

GA-8VM800PMD-775-RH (Rev. 1.0)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. LGA775
    2. Support Intel® Pentium® 4/ Pentium® D Processor
    3. Supports 800/533/400MHz FSB
  • Chipset
    1. Northbridge: VIA P4M800 Pro Express Chipset
    2. Southbridge: VIA 8237R Plus Chipset
    3. Realtek 8100C (10/100 LAN)
    4. Realtek ALC655 Audio codec
  • Memoria
    1. 2 DIMM memory slots (supports up to 2GB memory)
    2. Supports 1.8V DDR DIMM
    3. Supports DDR2 533/400 DIMM
    Note1: Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    Note2: Use of a Double-Sided memory module (the single chip is 512 Mbit) is required if you wish to install a 1 GB memory module.
  • Zócalos de Expansión
    1. 1 x AGP 8X slot
    2. 3 x PCI slots
  • Conectores Internos E/S
    1. 1 x 20-pin ATX power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x Serial ATA connectors
    4. 2 x UDMA ATA 100/66/33 connectors
    5. 1 x FDD connector
    6. 2 x Cooling fan pin headers
    7. 1 x front panel connector
    8. 1 x front audio connector
    9. 1 x CD IN connector
    10. 1 x AUX IN connector
    11. 1 x SPDIF IN/OUT
    12. 1 x SUR_CEN connector
    13. 1 x COMB
    14. 1 x Power LED connector
    15. 2 x USB 2.0/1.1 connector (supports 4 ports)
  • Panel E/S Trasero
    1. PS/2 Keyboard/Mouse
    2. 1 x LPT port
    3. 1 x serial port (COMA)
    4. 1 x VGA port
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ45 ports
    7. 3 x Audio jacks (Line-out / Line-in / MIC in)
  • Formato
    1. ATX
    2. 24.4cm x 23.3cm
  • Observaciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • Procesador
    1. LGA775
    2. Support Intel® Pentium® 4/ Pentium® D Processor
    3. Supports 800/533/400MHz FSB
  • Chipset
    1. Northbridge: VIA P4M800 Pro Express Chipset
    2. Southbridge: VIA 8237R Plus Chipset
    3. Realtek 8100C (10/100 LAN)
    4. Realtek ALC655 Audio codec
  • Memoria
    1. 2 DIMM memory slots (supports up to 2GB memory)
    2. Supports 1.8V DDR DIMM
    3. Supports DDR2 533/400 DIMM
    Note1: Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
    Note2: Use of a Double-Sided memory module (the single chip is 512 Mbit) is required if you wish to install a 1 GB memory module.
  • Zócalos de Expansión
    1. 1 x AGP 8X slot
    2. 3 x PCI slots
  • Conectores Internos E/S
    1. 1 x 20-pin ATX power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x Serial ATA connectors
    4. 2 x UDMA ATA 100/66/33 connectors
    5. 1 x FDD connector
    6. 2 x Cooling fan pin headers
    7. 1 x front panel connector
    8. 1 x front audio connector
    9. 1 x CD IN connector
    10. 1 x AUX IN connector
    11. 1 x SPDIF IN/OUT
    12. 1 x SUR_CEN connector
    13. 1 x COMB
    14. 1 x Power LED connector
    15. 2 x USB 2.0/1.1 connector (supports 4 ports)
  • Panel E/S Trasero
    1. PS/2 Keyboard/Mouse
    2. 1 x LPT port
    3. 1 x serial port (COMA)
    4. 1 x VGA port
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ45 ports
    7. 3 x Audio jacks (Line-out / Line-in / MIC in)
  • Formato
    1. ATX
    2. 24.4cm x 23.3cm
  • Observaciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
