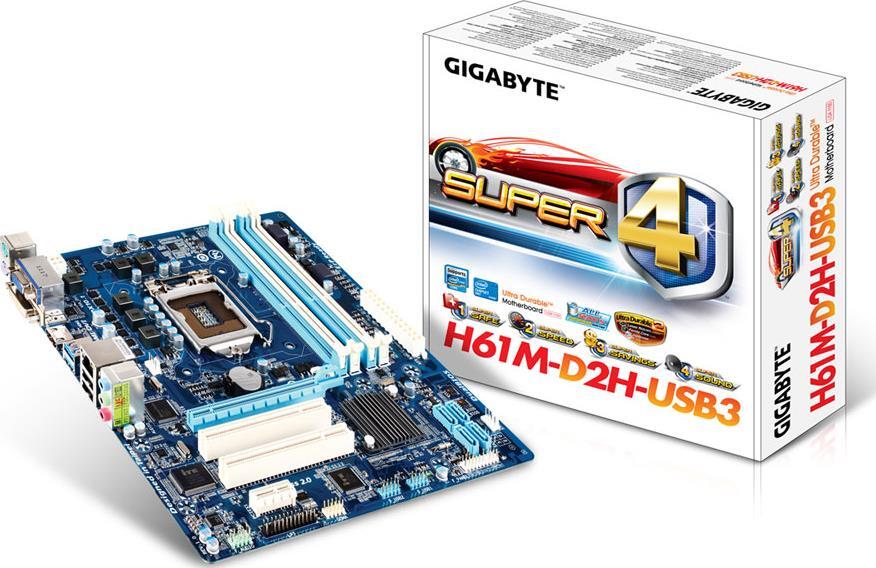

GA-H61M-D2H-USB3 (Rev. 1.0)

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1155 package
2. L3 cache varies with CPU

1. Intel^® H61 Express Chipset

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules

* Due to Intel H61 chipset limitation, please use single-side memory modules when four memory modules are installed. Please refer "Manual" for more memory information.

* Please refer "Memory Support List" for more information.

1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
   The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

1. 1 x Atheros 8151 GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
   (All PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots

1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

1. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. Up to 2 USB 3.0/2.0 ports on the back panel

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 2 x USB 2.0/1.1 headers
9. 1 x parallel port header
10. 1 x serial port header
11. 1 x clearing CMOS jumper

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x HDMI port
6. 2 x USB 2.0/1.1 ports
7. 2 x USB 3.0/2.0 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In/Line Out/Microphone)

1. iTE IT8728 chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/system fan speed control
   * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

1. 2 x 32 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
8. Support for Smart 6™
9. Support for Auto Green
10. Support for ON/OFF Charge
11. Support for Cloud OC
12. Support for 3TB+ Unlock
13. Support for TouchBIOS
14. Support for Q-Share

1. Norton Internet Security (OEM version)

1. Support for Microsoft^® Windows 8/7/Vista/XP

1. Micro ATX Form Factor; 24.4cm x 22.5cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
