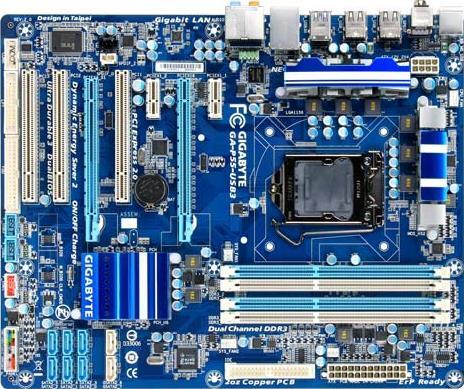

GA-P55-USB3 (Rev. 2.0)

Rev. 2.0Rev. 1.0
Intel® P55 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
    2. L3 cache varies with CPU
  • Chipset
    1. Intel® P55 Express Chipset
  • Memoria
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR3 2200/1333/1066/800 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest memory support list.)
  • Audio
    1. Realtek ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF In/Out
    5. Support for CD In
  • LAN
    1. 1 x RTL8111E chip (10/100/1000 Mbit)
  • Zócalos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 2) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4_X1) (Note 3)
    3. 2 x PCI Express x1 slots
    4. 3 x PCI slots
  • Tecnología Multi Gráfica
    1. Support for ATI CrossFireX™ technology (Note 4)
  • Interfaz de almacenamiento
  • Chipset:
    1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
    2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
    GIGABYTE SATA2 chip:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 2 x SATA 3Gb/s connectors (GSATA2_6, GSATA2_7) supporting up to 2 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1, and JBOD
    iTE IT8720 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • Chipset:
    1. Up to 14 USB 2.0/1.1 ports (Note 5) (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
    NEC chip:
    1. Up to 2 USB 3.0 ports on the back panel
    * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
  • Conectores Internos E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 8 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 2 x system fan headers
    8. 1 x power fan header
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x CD In connector
    12. 1 x S/PDIF In header
    13. 1 x S/PDIF Out header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x serial port header
    16. 1 x parallel port header
    17. 1 x clearing CMOS jumper
  • Panel E/S Trasero
    1. 1 x PS/2 keyboard or PS/2 mouse port
    2. 1 x coaxial S/PDIF Out connector
    3. 1 x optical S/PDIF Out connector
    4. 8 x USB 2.0/1.1 ports
    5. 2 x USB 3.0/2.0 ports
    6. 1 x RJ-45 port
    7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
  • Controlador E/S
    1. iTE IT8720 chip
  • Monitorización Hardware
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System/Power fan speed detection
    4. CPU overheating warning
    5. CPU/System/Power fan fail warning
    6. CPU/System fan speed control
  • BIOS
    1. 2 x 16 Mbit flash
    2. Use of licensed AWARD BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Otras Características
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress BIOS Rescue
    4. Support for Download Center
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for EasyTune
    8. Support for Dynamic Energy Saver™ 2
    9. Support for Smart 6™
    10. Support for Auto Green
    11. Support for eXtreme Hard Drive
    12. Support for Q-Share
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Microsoft® Windows 7/Vista/XP
  • Formato
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Note
  • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (Note 3) When the PCIEX1_2 slot is populated with an expansion card, the PCIEX4_X1 slot will operate at up to x1 mode.
    (Note 4) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX is enabled.
    (Note 5) Two share the same ports with USB 3.0.
  • Observaciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
      2. L3 cache varies with CPU
    • Chipset
      1. Intel® P55 Express Chipset
    • Memoria
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
      2. Dual channel memory architecture
      3. Support for DDR3 2200/1333/1066/800 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Go to GIGABYTE's website for the latest memory support list.)
    • Audio
      1. Realtek ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF In/Out
      5. Support for CD In
    • LAN
      1. 1 x RTL8111E chip (10/100/1000 Mbit)
    • Zócalos de Expansión
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 2) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4_X1) (Note 3)
      3. 2 x PCI Express x1 slots
      4. 3 x PCI slots
    • Tecnología Multi Gráfica
      1. Support for ATI CrossFireX™ technology (Note 4)
    • Interfaz de almacenamiento
    • Chipset:
      1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
      2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      GIGABYTE SATA2 chip:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      2. 2 x SATA 3Gb/s connectors (GSATA2_6, GSATA2_7) supporting up to 2 SATA 3Gb/s devices
      3. Support for SATA RAID 0, RAID 1, and JBOD
      iTE IT8720 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
    • Chipset:
      1. Up to 14 USB 2.0/1.1 ports (Note 5) (10 on the back panel, 4 via the USB brackets connected to the internal USB headers)
      NEC chip:
      1. Up to 2 USB 3.0 ports on the back panel
      * USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
    • Conectores Internos E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 8 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 2 x system fan headers
      8. 1 x power fan header
      9. 1 x front panel header
      10. 1 x front panel audio header
      11. 1 x CD In connector
      12. 1 x S/PDIF In header
      13. 1 x S/PDIF Out header
      14. 2 x USB 2.0/1.1 headers
      15. 1 x serial port header
      16. 1 x parallel port header
      17. 1 x clearing CMOS jumper
    • Panel E/S Trasero
      1. 1 x PS/2 keyboard or PS/2 mouse port
      2. 1 x coaxial S/PDIF Out connector
      3. 1 x optical S/PDIF Out connector
      4. 8 x USB 2.0/1.1 ports
      5. 2 x USB 3.0/2.0 ports
      6. 1 x RJ-45 port
      7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
    • Controlador E/S
      1. iTE IT8720 chip
    • Monitorización Hardware
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System/Power fan speed detection
      4. CPU overheating warning
      5. CPU/System/Power fan fail warning
      6. CPU/System fan speed control
    • BIOS
      1. 2 x 16 Mbit flash
      2. Use of licensed AWARD BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Otras Características
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress BIOS Rescue
      4. Support for Download Center
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for EasyTune
      8. Support for Dynamic Energy Saver™ 2
      9. Support for Smart 6™
      10. Support for Auto Green
      11. Support for eXtreme Hard Drive
      12. Support for Q-Share
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Microsoft® Windows 7/Vista/XP
    • Formato
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Note
    • (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      (Note 2) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (Note 3) When the PCIEX1_2 slot is populated with an expansion card, the PCIEX4_X1 slot will operate at up to x1 mode.
      (Note 4) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX is enabled.
      (Note 5) Two share the same ports with USB 3.0.
    • Observaciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
