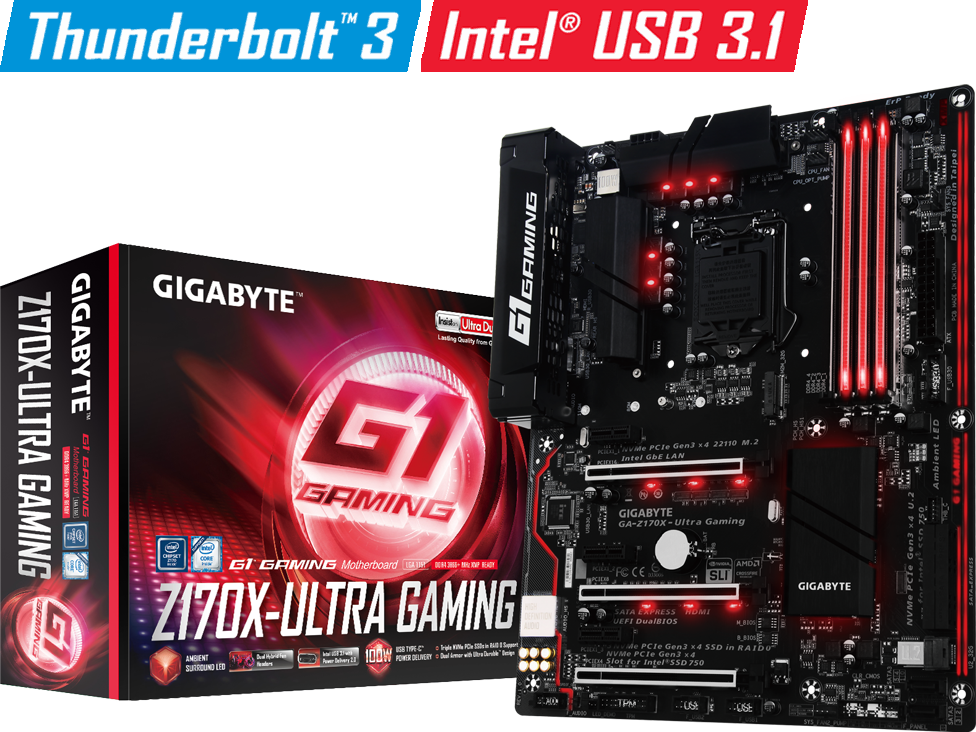

GA-Z170X-Ultra Gaming (Rev. 1.0)

Intel® Z170 Chipset
DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosAprender másWhere to Buy

Especificación

  • Procesador
    1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
      * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z170 Express Chipset
  • Memoria
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
      (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráfica Integrada
  • Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    2. 1 x Mini-DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
      3. ŠŠ
    Maximum shared memory of 1024 MB
  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Zócalos de Expansión
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the SATA3 0/1 connectors. When the PCIEX4 slot is installed with a x4 or above card, the SATA 3 0/1 connectors becomes unavailable.
    4. 3 x PCI Express x1 slots
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • Tecnología Multi Gráfica
    1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
  • Interfaz de almacenamiento
  • Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
    2. 1 x U.2 connector
    3. 2 x SATA Express connectors
    4. 6 x SATA 6Gb/s connectors
    5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-8 Internal Connectors," for the installation notices for the U.2, M.2, SATA Express, and SATA connectors.
  • USB
  • Chipset+Intel® Thunderbolt™ 3 Controller:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
    2. 1 x USB 3.1 Type-A port (red) on the back panel
    Chipset:
    1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Conectores Internos E/S
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x U.2 connector
    4. 1 x M.2 Socket 3 connector
    5. 2 x SATA Express connectors
    6. 6 x SATA 6Gb/s connectors
    7. 1 x CPU fan header
    8. 1 x water cooling fan/pump header (CPU_OPT_PUMP)
    9. 2 x system fan headers
    10. 1 x system fan/water cooling pump header (SYS_FAN2_PUMP)
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB 3.0/2.0 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x S/PDIF Out header
    16. 1 x Trusted Platform Module (TPM) header
    17. 1 x Thunderbolt™ add-in card connector
    18. 1 x Clear CMOS jumper
  • Panel E/S Trasero
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x USB Type-C™ port, with USB 3.1 support
    3. 1 x USB 3.1 Type-A port (red)
    4. 1 x Mini-DisplayPort In port
    5. 1 x Mini-DisplayPort
    6. 1 x HDMI port
    7. 4 x USB 3.0/2.0 ports
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 1 x optical S/PDIF Out connector
    11. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
  • Controlador E/S
    1. iTE® I/O Controller Chip
  • Monitorización Hardware
    1. System voltage detection
    2. CPU/System/Chipset temperature detection
    3. CPU/CPU OPT/System fan (pump) speed detection
    4. CPU/System/Chipset overheating warning
    5. CPU/CPU OPT/System fan (pump) fail warning
    6. CPU/CPU OPT/System fan (pump) speed control
      * Whether the fan speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Otras Características
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      ON/OFF Charge
      Platform Power Management
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Smart Switch
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Smart Response Technology
    3. cFosSpeed
  • Sistema Operativo
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Formato
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Observaciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
        * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® Z170 Express Chipset
    • Memoria
      1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
        (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Gráfica Integrada
    • Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      2. 1 x Mini-DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version.
        3. ŠŠ
      Maximum shared memory of 1024 MB
    • Audio
      1. Realtek® ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Intel® GbE LAN chip (10/100/1000 Mbit)
    • Zócalos de Expansión
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
        * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        * The PCIEX4 slot shares bandwidth with the SATA3 0/1 connectors. When the PCIEX4 slot is installed with a x4 or above card, the SATA 3 0/1 connectors becomes unavailable.
      4. 3 x PCI Express x1 slots
        (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    • Tecnología Multi Gráfica
      1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
      2. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
    • Interfaz de almacenamiento
    • Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
      2. 1 x U.2 connector
      3. 2 x SATA Express connectors
      4. 6 x SATA 6Gb/s connectors
      5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
        * Refer to "1-8 Internal Connectors," for the installation notices for the U.2, M.2, SATA Express, and SATA connectors.
    • USB
    • Chipset+Intel® Thunderbolt™ 3 Controller:
      1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
      2. 1 x USB 3.1 Type-A port (red) on the back panel
      Chipset:
      1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    • Conectores Internos E/S
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x U.2 connector
      4. 1 x M.2 Socket 3 connector
      5. 2 x SATA Express connectors
      6. 6 x SATA 6Gb/s connectors
      7. 1 x CPU fan header
      8. 1 x water cooling fan/pump header (CPU_OPT_PUMP)
      9. 2 x system fan headers
      10. 1 x system fan/water cooling pump header (SYS_FAN2_PUMP)
      11. 1 x front panel header
      12. 1 x front panel audio header
      13. 1 x USB 3.0/2.0 header
      14. 2 x USB 2.0/1.1 headers
      15. 1 x S/PDIF Out header
      16. 1 x Trusted Platform Module (TPM) header
      17. 1 x Thunderbolt™ add-in card connector
      18. 1 x Clear CMOS jumper
    • Panel E/S Trasero
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x USB Type-C™ port, with USB 3.1 support
      3. 1 x USB 3.1 Type-A port (red)
      4. 1 x Mini-DisplayPort In port
      5. 1 x Mini-DisplayPort
      6. 1 x HDMI port
      7. 4 x USB 3.0/2.0 ports
      8. 2 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 1 x optical S/PDIF Out connector
      11. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    • Controlador E/S
      1. iTE® I/O Controller Chip
    • Monitorización Hardware
      1. System voltage detection
      2. CPU/System/Chipset temperature detection
      3. CPU/CPU OPT/System fan (pump) speed detection
      4. CPU/System/Chipset overheating warning
      5. CPU/CPU OPT/System fan (pump) fail warning
      6. CPU/CPU OPT/System fan (pump) speed control
        * Whether the fan speed control function is supported will depend on the fan (pump) you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Otras Características
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        @BIOS
        AutoGreen
        BIOS Setup
        Color Temperature
        Cloud Station
        EasyTune
        Easy RAID
        Fast Boot
        ON/OFF Charge
        Platform Power Management
        Smart TimeLock
        Smart Keyboard
        Smart Backup
        System Information Viewer
        USB Blocker
        V-Tuner
      2. Support for Q-Flash
      3. Support for Smart Switch
      4. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. Intel® Smart Response Technology
      3. cFosSpeed
    • Sistema Operativo
      1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
      2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Formato
      1. ATX Form Factor; 30.5cm x 24.4cm
    • Observaciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
