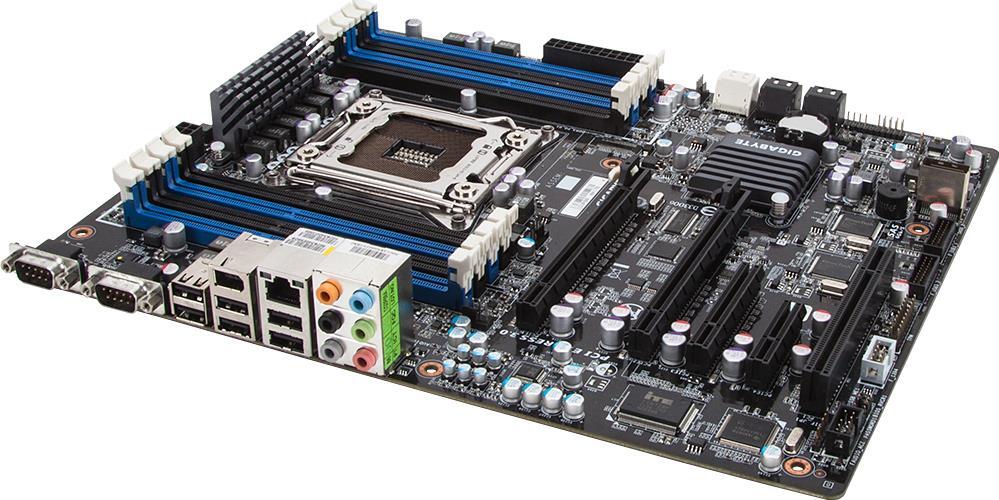

GA-6PXSV1
Legacy | Firmware updates supportedIntel® C604 chipset
- Intel® Xeon® processor E5-1600/1600 V2 & E5-2600/2600 V2 product families
- 8 x RDIMM/UDIMM ECC DIMM slots
- 1 x GbE LAN port (Intel® 82579LM)
- 6 x USB 2.0 port
- 2 x USB 3.0 headers
- 1 x IEEE 1394 port
- Buy online
- Overview
- Specifications
- Support
- Related Resources
Specifications
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Supports:
- Intel® Xeon® E5-2600 V2 processors
- Intel® Xeon® E5-1600 V2 processors
- Intel® Xeon® E5-2600 processors
- Intel® Xeon® E5-1600 processors
Socket
1 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C604
Memory
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
1 x GbE LAN port (Intel® 82579LM)
Video
-
Audio
Realtek® ALC892 controller
- Supports 2/4/5.1/7.1 channel configurations
- Support for Dolby Home Theater
- Support for S/PDIF In/Out
- Support for CD-In
SAS
1 x Mini-SAS (for 4 x SAS 3Gb/s ports)
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
4 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Intel® SAS RAID 0/1/10
Intel® SAS RAID 0/1/10
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen2 x4 bus) slot
1 x PCI slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen2 x4 bus) slot
1 x PCI slot
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x System fan headers
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x CMOS battery
1 x Power LED header
1 x Clear CMOS jumper
1 x Front panel connector
1 x Front audio header
1 x Mini-SAS connector
2 x USB 3.0 headers
1 x TPM header
1 x IEEE 1394 header
1 x BIOS write protect jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x S/PDIF header
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x System fan headers
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x CMOS battery
1 x Power LED header
1 x Clear CMOS jumper
1 x Front panel connector
1 x Front audio header
1 x Mini-SAS connector
2 x USB 3.0 headers
1 x TPM header
1 x IEEE 1394 header
1 x BIOS write protect jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x S/PDIF header
Rear I/O
6 x USB 2.0
1 x IEEE 1394
2 x Serial
1 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
1 x IEEE 1394
2 x Serial
1 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows 7 (x86/x64)
Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows 7 (x86/x64)
Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)
SUSE Linux Enterprise Server 11.1 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6PXSV1MS-00
